System interconnection diagrams

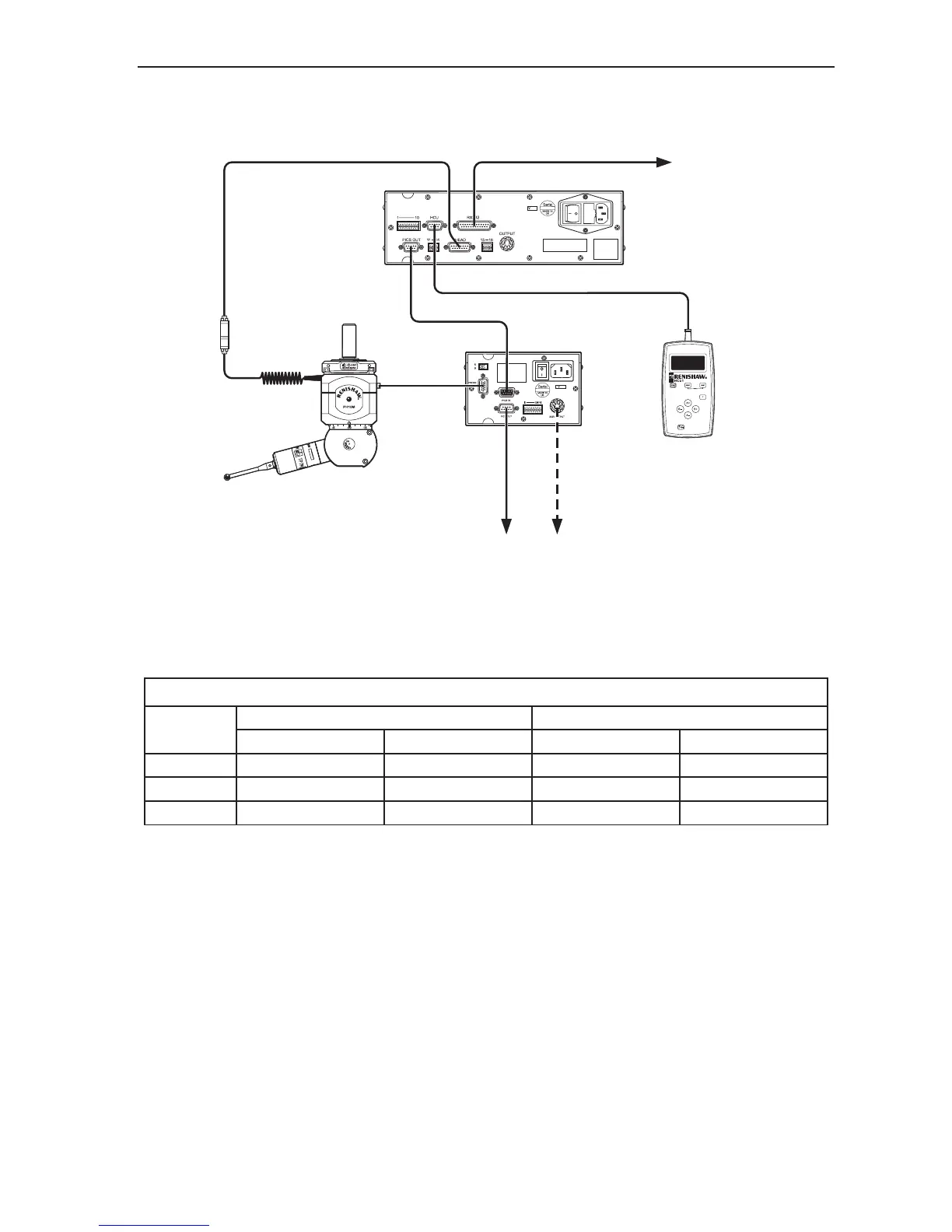

Figure 24 - PH10 system with multiwired probes
Table 23 - Switch settings
PICS configuration SSR configuration
Up Down Up Down
PHC10-2 11, 15, 16, 17, 18 10, 13, 14 - 10, 13, 14, 15, 16
PI 7-2 3, 7 6 3, 7 6
OPI 6 - 2,4 - 2,4
For these systems the use of the PICS signal probe DAMPing is recommended.
Refer to H-1000-5000 PIC’S installation guide for further information.
PH10M
PL5, 6, 12, 13
PLM6, 7, 8, 9
Communication connection
to CMM controller
PL38
HCU1
PHC10-2
PI 7-2
or
OPI 6
PL25
SSR
output
to CMM
controller
PICS
output
to CMM
controller
