Fixscreen
®
100 Slim (F)
27
Please check:
– if all parts are included in the packaging and
– whether the dimensions are correct.
Requirements:
– Only 2 Torx keys (T20 and T25) are required standard for installation, which speeds up the
installation of the screen.
– If a fabric guide profile (indicated on the exploded view under 3. Installation) is available, only
a T15 Torx key is required.
– Other materials for installing the screen against the structure.
1 • General
Fixscreen
®
100 Slim (F) consists of:
– Square head box
➀
with
demountable fabric set
➁
with motor
control which is directly secured
- against the structure or
- on the window frame.
– Each product has a pair of identical
side guiding channels
➂
.
– High-value polyester or glass fibre
fabric, with Fixscreen technology
(wind tight technology thanks to the
combination of a symmetrical zip
and a patented wear-resistant HPVC
inner-rail).
– A retractable bottom bar, with extra
load, which guarantees a fluent
guidance of the fabric during rolling-
up and rolling-down.
Please note:
There must be power to:
• if necessary, partially unroll the fabric to easily remove the fabric guide profile from the
head box,
• to be able to set the motor’s end points,
• to be able to do a check on the proper functioning of the installed screen.

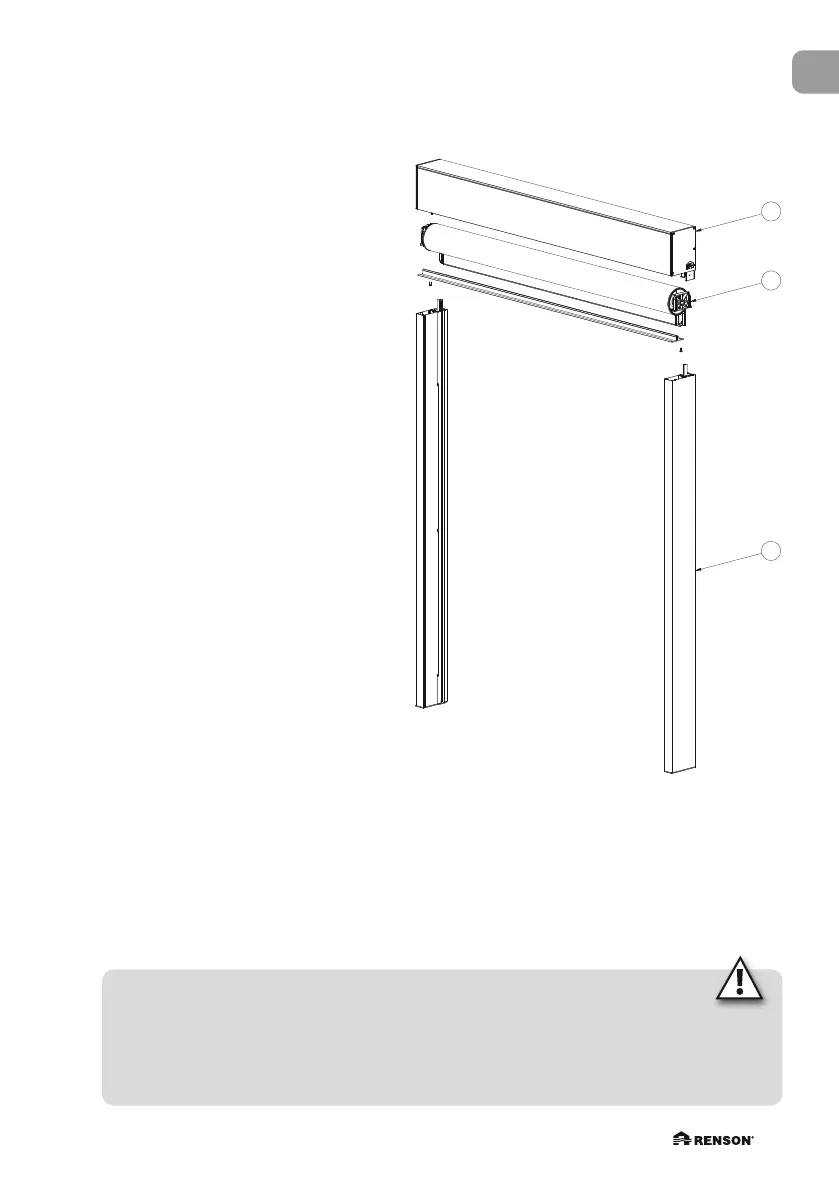

➀
Head box
➁
Fabric set
➂
Side guiding channel
1
2
3
