Fixscreen
®
100 Slim (F)
44
4 • Electrical control
4.1 • The technical features of the motor
Category Rating
Voltage 230 Volt AC
Current 0,4 to 1.5 Amps (depends on motor type)
Output 90 to 300 Watt (depends on motor type)
Protection class IP 44
Max. operating time Approx. 3 à 5 minutes
4.2 • The features of the electrical power connection
Category Rating
Residual-current device 300mA
Circuit breaker
10 Ampère (Max. 8 Motors per circuit breaker)
(See specifications for rated current of the motor.)

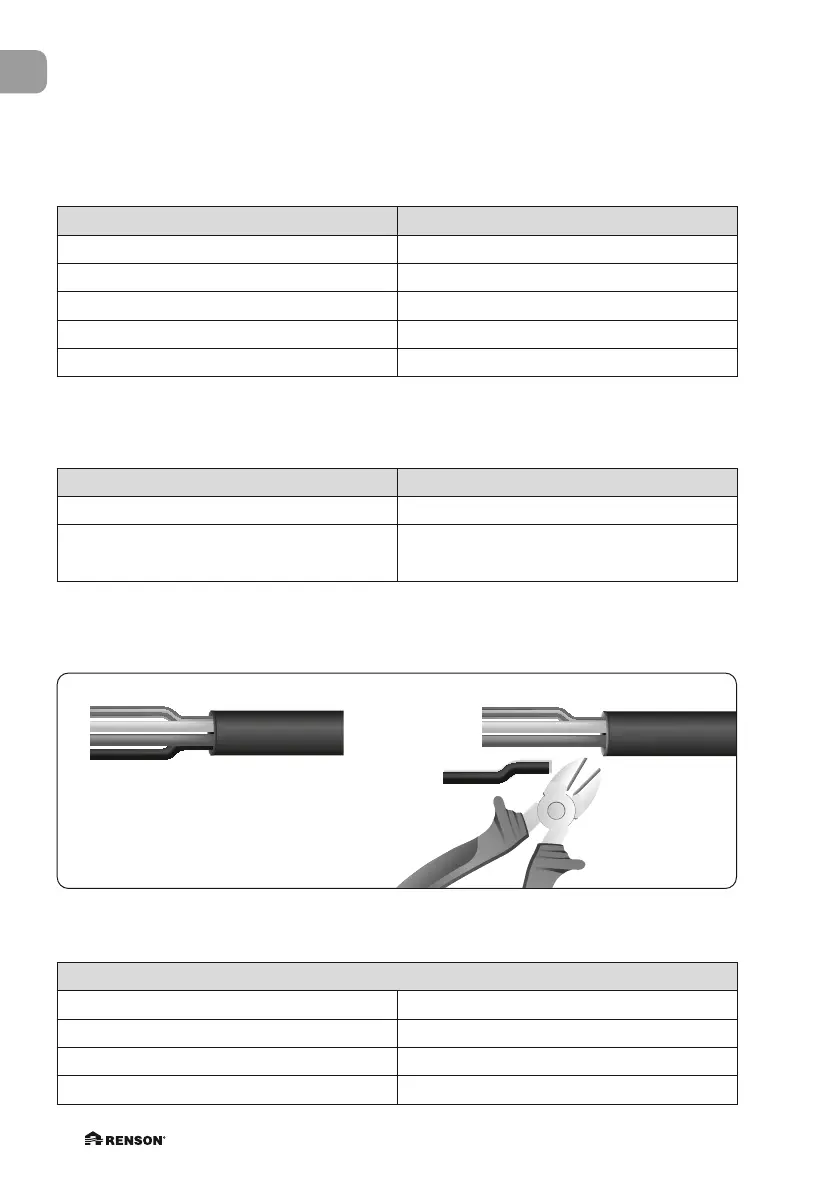

In case of a radio-controlled motor (RTS) or IO Home motor, the black core needs to be cut
(the black core does not have a functionality in case of this type of motors).
Type motor
Mechanical (MSM)
Type motor
Radio controlled (RTS)
IO
4.3 • Connection of the uv resistant cable
Codification cores:
Blue core N (Neutral)
Black core L1 (Direction 1)
Brown core L2 (Direction 2)
Yellow and green core PE (Earth)
PE
N
L2
L1
PE
N
L2
L1
(black cable)
