6 • Final check
6.1 • For a single screen
➋
Put back the removable profile of the side guiding channels (torx key T20).
➌
If the motor cable is visible and installed outdoors, the cable needs to be protected by
conduit or trunking which is sun resistant.
➍
Check if the end points are set. If they are not set, set the end points so the motor
automatically stops in the desired highest and lowest position.
➎
Make sure to set the lower end point at 10 mm from the end of the side guiding channels so
the fabric remains at the correct tension.
➏
Check if all screws, bolts and nuts are firmly tightened.
➐
Roll the screen up and down several times to ensure proper operation.
H1
H2
D1
D2

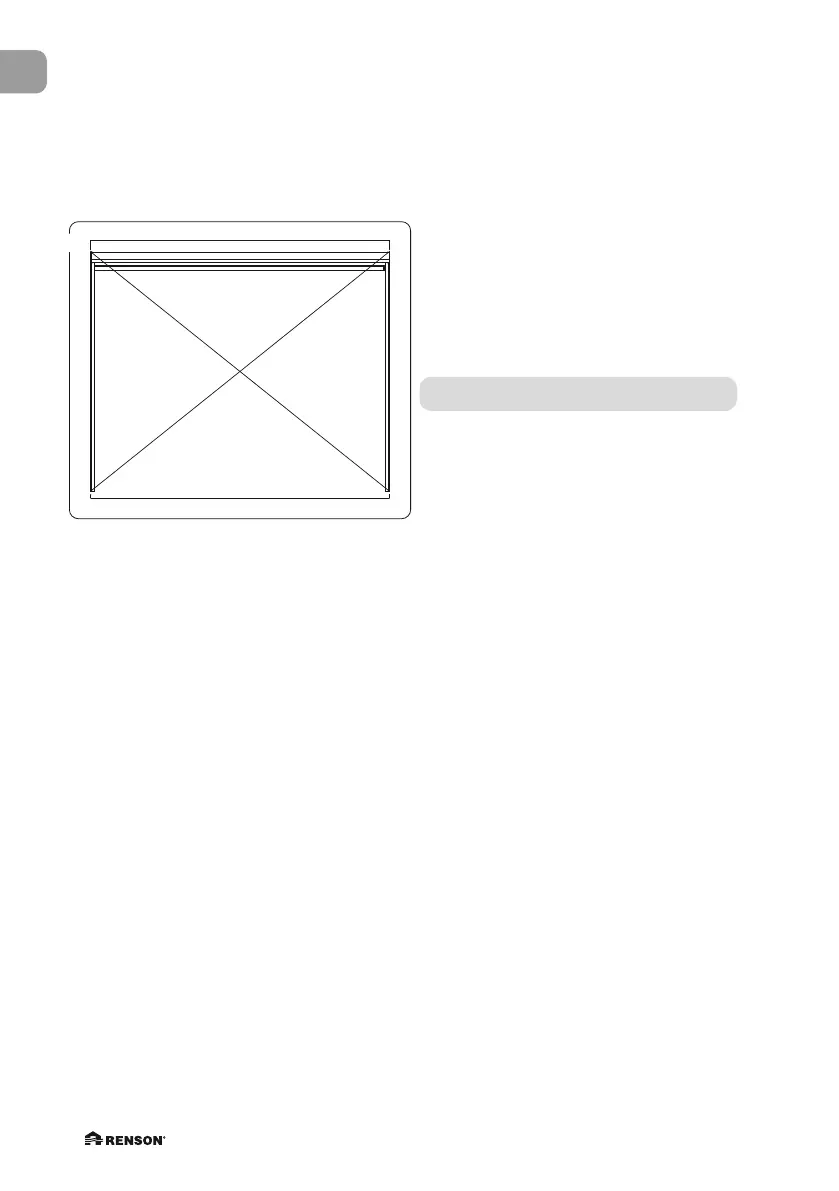

➊
Before starting the motor, check if the set-up
is square. The diagonals (D1 and D2) and
parallels (H1 and H2) should be as equal as
possible for the fabric to properly unwind.
D1 = D2 and H1 = H2
