6.2 • For a coupled screen
➍
Fit the removable profile of the (coupling) side guiding channels (torx key T20).
➎
Check if the end points are set. If these are not set, set the end points so that the motor stops
automatically in the desired highest and lowest position.
➏
Make sure to set the lower end point at 10 mm from the end of the side guiding channels so
that the fabric remains at the correct tension.
➐
Let the bottom rail drop to its lowest position.
Check if both bottom rails are positioned at the same height.
If this is not the case, then go back to point 2.
➑
Check if all screws, bolts and nuts are firmly tightened.
➒
Roll the screen up and down several times to ensure proper operation.
➊
See point 6.1.

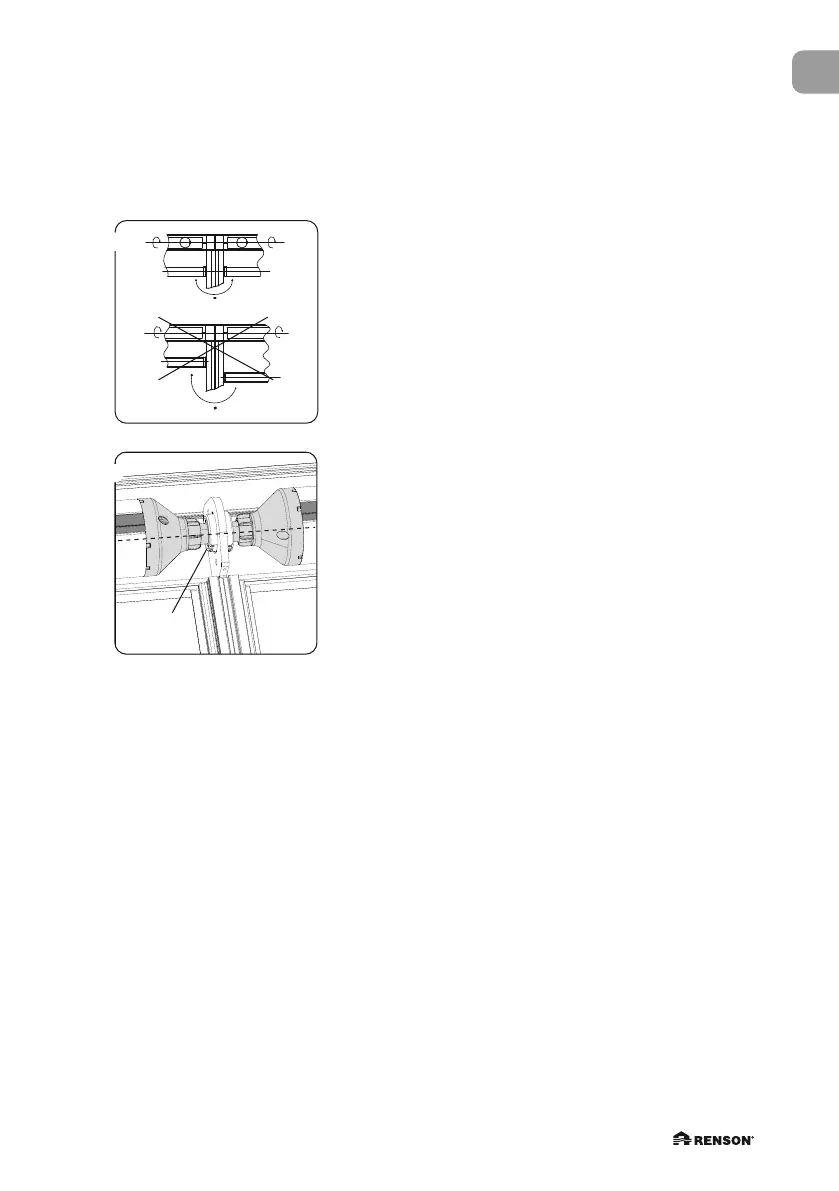

Loosen the Torx screws on the bearing side of the fabric tube
and rotate it so that both fabric grooves are aligned straight
across from each other.
Check if the bottom rails are positioned at the same height.
If this is not the case, then this can be adjusted on the fabric
roll which does not have any motor. These must be linked
symmetrically, i.e. the fabric grooves of the 2 fabric rolls must
face each other.
The fabric must likewise be turned up an equal number of turns
so that the two bottom rails face each other.
