Renson Fixscreen 100 Slim - Page 38

Fixscreen
®
100 Slim (F)
de
38

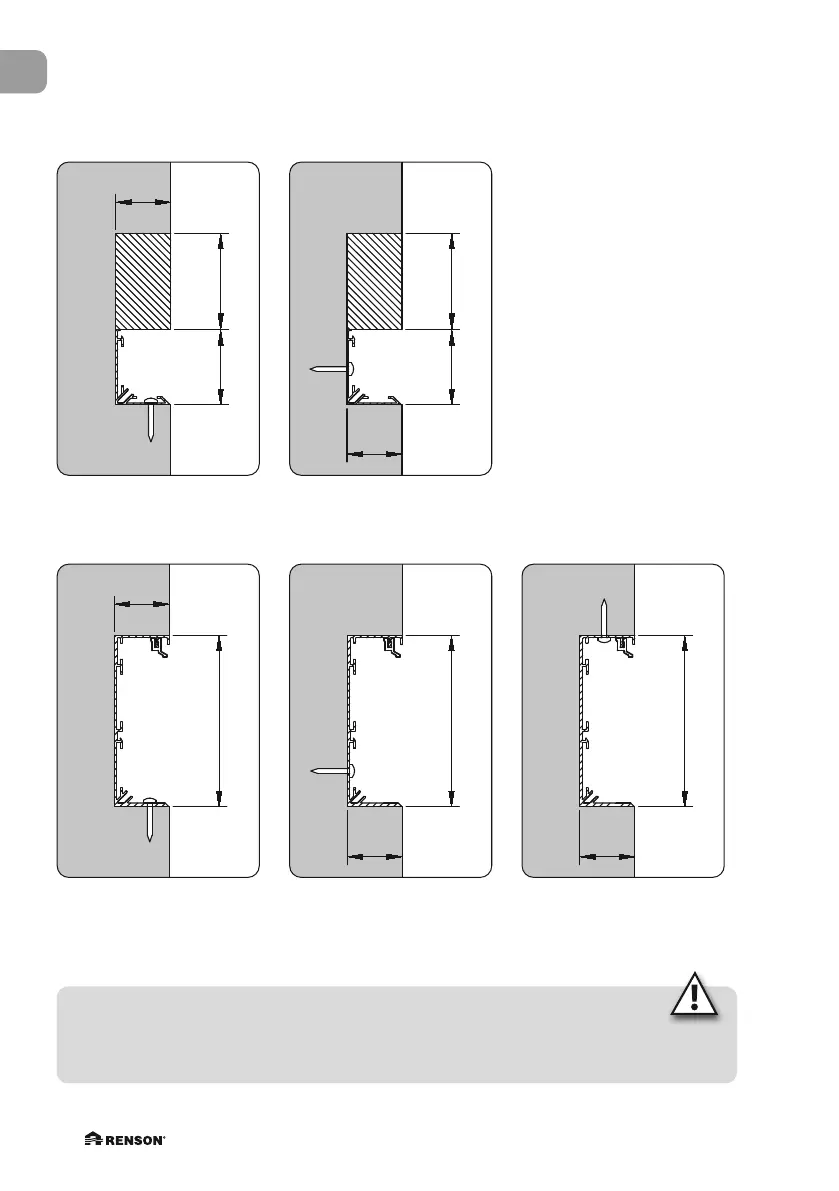

Mounting of side guiding
channel ‘G’ sideways
(Ø5mm)
Mounting of side guiding
channel ‘G’ through the
frontside (Ø5mm)
Mounting of side guiding
channel ‘D’ through the
frontside (Ø5mm)
Mounting of side guiding
channel D sideways
(Ø5mm)
Installation method 7B - fabric away from the window
Mounting of side guiding
channel ‘D’ (through the
backside Ø5mm)
Attention: To be able to
disassemble the fabric set
from beneath, the client must
foresee something under-
neath the head box that can
be dismantled when choos-
ing the narrow side guiding
channel G.
35
110 110
4862 4862
35 35 35
110
35
110
35
110
35
35
6248 6248
35
35
110 110
4862 4862
35 35 35
110
35
110
35
110
35
35
6248 6248
35
35
110 110
4862 4862
35 35 35
110
35
110
35
110
35
35
6248 6248
35
35
110 110
4862 4862
35 35 35
110
35
110
35
110
35
35
6248 6248
35
35
110 110
4862 4862
35 35 35
110
35
110
35
110
35
35
6248 6248
35
démontable démontable
Please note:
For a screen in installation method 7B (see 2. Installation method) with a mechanic
motor, the window must be able to open the full width. The motor side must be accessible
to set the end points.
