en
Fixscreen
®
100 Slim (F)
42

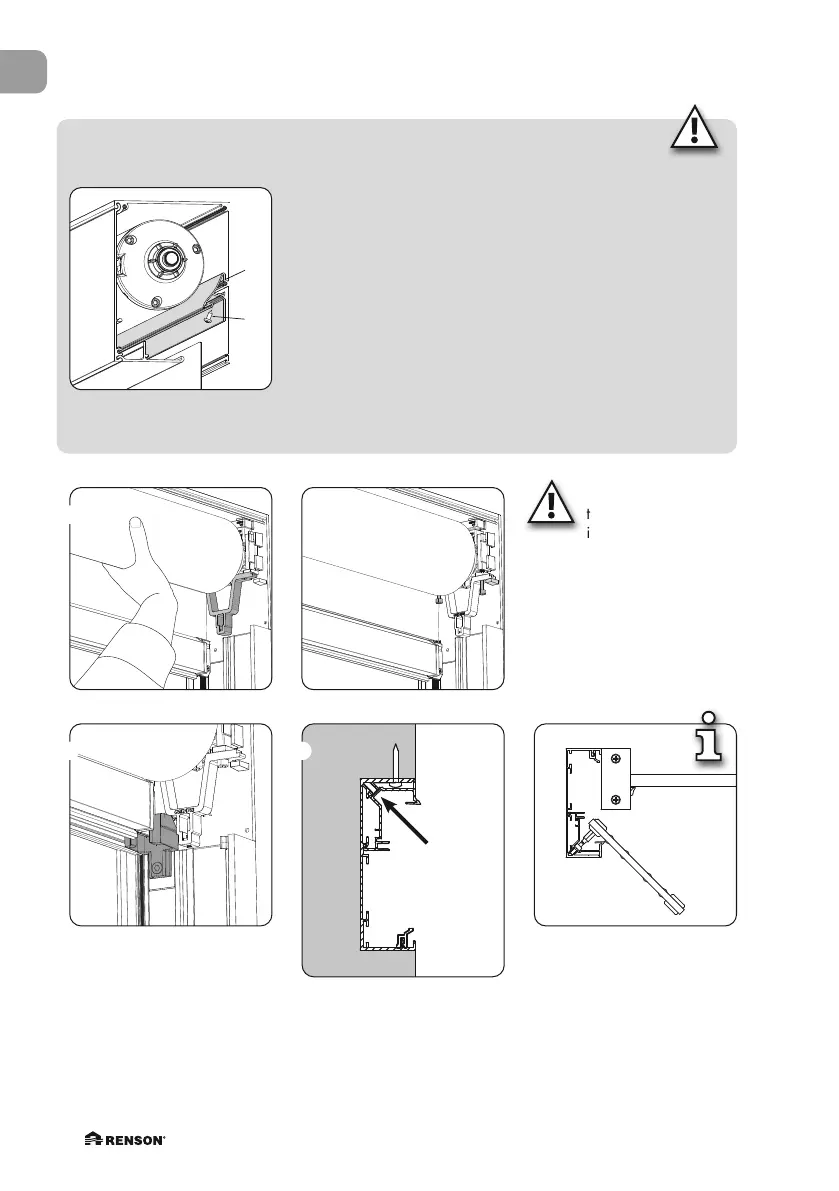

Position the fabric guide profile:
1. This profile is positioned behind the fabric and hooks over
the screw channel.
Tip: partly unroll the fabric so it can be hooked over the
guiding piece.
Position the guiding piece central in the head box, so it is
symmetrically aligned with the fixed profile. And make sure
that the profile fits nicely and fully over the screw channel.
2. Use a Torx key T15 to tighten the screws at the bottom of
the profile.
Afterwards, give one pull on the profile to check if it is
secure.
Please note: For Detecto motors and screens of a width of 4 m to 6 m and a height
of up to 2.8m, a fabric guide profile must still be installed.
1
2
35
110
110
4862
4862
35 35 35
110
35
110
35
110
35
35
6248
6248
35
Attention! Hold
the fabric set in
its position during
remounting. Don’t forget
to support the bottom bar.
Reposition the U- piece &
secure it with a Torx key
T25. Tighten the screws of
the U-piece.
Screw the guiding piece
(for guiding the side guiding
channels) back in its former
position.
It is necessary to use
a ratchet wrench for
(un-)installing the
intermediate profile of the
side guiding channel for a
balustrade application.
Drawn :
Date Saved :
Scale :
Size :
www.renson.eu - 8790 Ware gem (Belgium)
A3
Use. :
r0156048
R
Creating healthy spaces
Sheet :Description :
Part. nr. :
Doc. nr.:
State :
Mat. : Finish : Weight : Volume : Base part : Tol. :
tcosa
1 /1
19/10/2020
N/A
266136,617 cm³
Standard
1 : 4
This drawing is owne d by RENSON and may not be copied
or shown to third parties without written permission.
units in mm
Area :
-
Revision
-
- Click the middle profile of
the side guiding channels
into the fixed part of the
side guiding channel.
- Press both parts in firmly
and screw them into place
at the pre-drilled positions.
➋
➌ ➍
