PIR Sensor (back)
Test Mode
Test button
When the PIR detects motion 2 times in 3 minutes it automatically goes into power saving
mode. When no movement is detected in the next 3 minutes it will set itself back to
working mode. During the 3 minutes the Sensor won’t be activated and will not send a
signal to the Control Panel.
Enter the password on the Control Panel and press the button. The button will
light up. Now press the test button at the back of the PIR Sensor twice. The Control
Panel will beep once when pairing is successful. If the system beeps twice, this means
that the Sensor has already been paired.

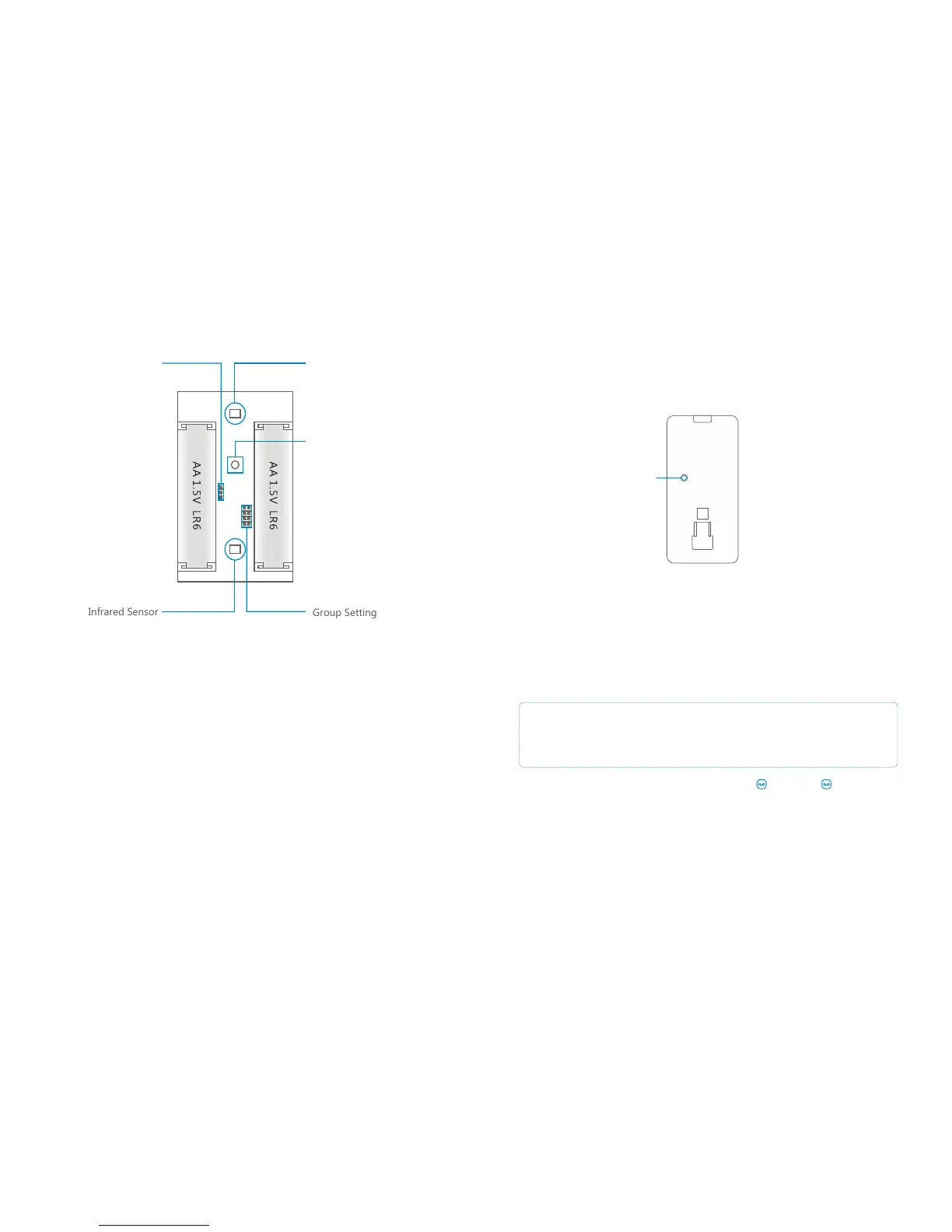

PIR Sensor (inside)
Infrared Sensors
The Infrared Sensors detect movement. These Sensors must therefore always be clean.
Do not touch the Sensor!
Tamper Switch
When opening the housing of the PIR Sensor the tamper switch will be triggered and
the Sensor will send a signal to the Control Panel.
LED On/Off
The LED indicator at the front of the PIR Sensor can be turned off by moving the J2
bridge inside the PIR from the top two pins to the bottom two (indicated as ‘OFF’).
After self-testing, press the test button once. The PIR Sensor will emit a detection signal
(LED flash once). The Sensor will stay in that mode for 3 minutes and detect a movement
every 10 seconds.
Power Saving Mode
IMPORTANT: When pairing a PIR Sensor to the Control Panel make sure other Sensors
are not triggered. Cover other Sensors or put them temporarily in a room where there
is no movement.
Connecting PIR Sensors
LED ON / OFF
Jumper Switch
Tamper Switch
Infrared Sensor
Group Setting
Infrared Sensor
