RESQTEC Manual SPREADER X-series (DM064K08)

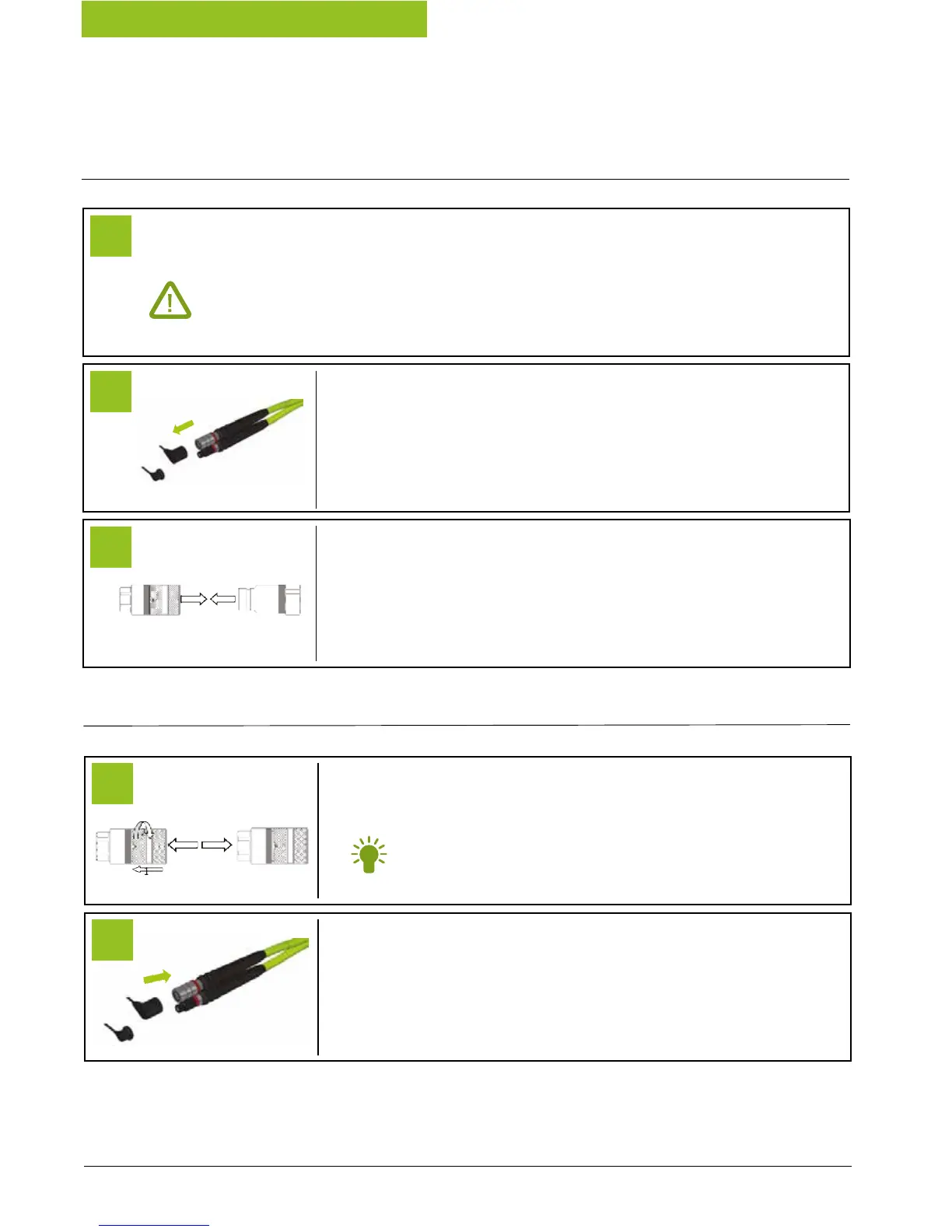

4.8. CONNECTING THE RESQTEC STD COUPLER
4.9. DISCONNECTING THE RESQTEC STD COUPLER
Check whether the pump relief valve is in its neutral/release pressure relief position (with exception of NEO1).
NEVER TRY TO CONNECT THE COUPLERS IF THE PUMP IS SWITCHED TO OPERATION.
Remove the dust caps from the couplers.
AligntheSTDcouplerandpushthemaleandfemalepartrmlyintoeachother.
1
2
3
1
2
Rotate the collar on the STD coupler until the cutout on the collar is in front of the ball.
Then push the collar towards the female connector.
The male connector will be ejected automatically.
Place the dust caps on both couplers.
