4.13. ATTACHING CHAINS AND SHACKLES

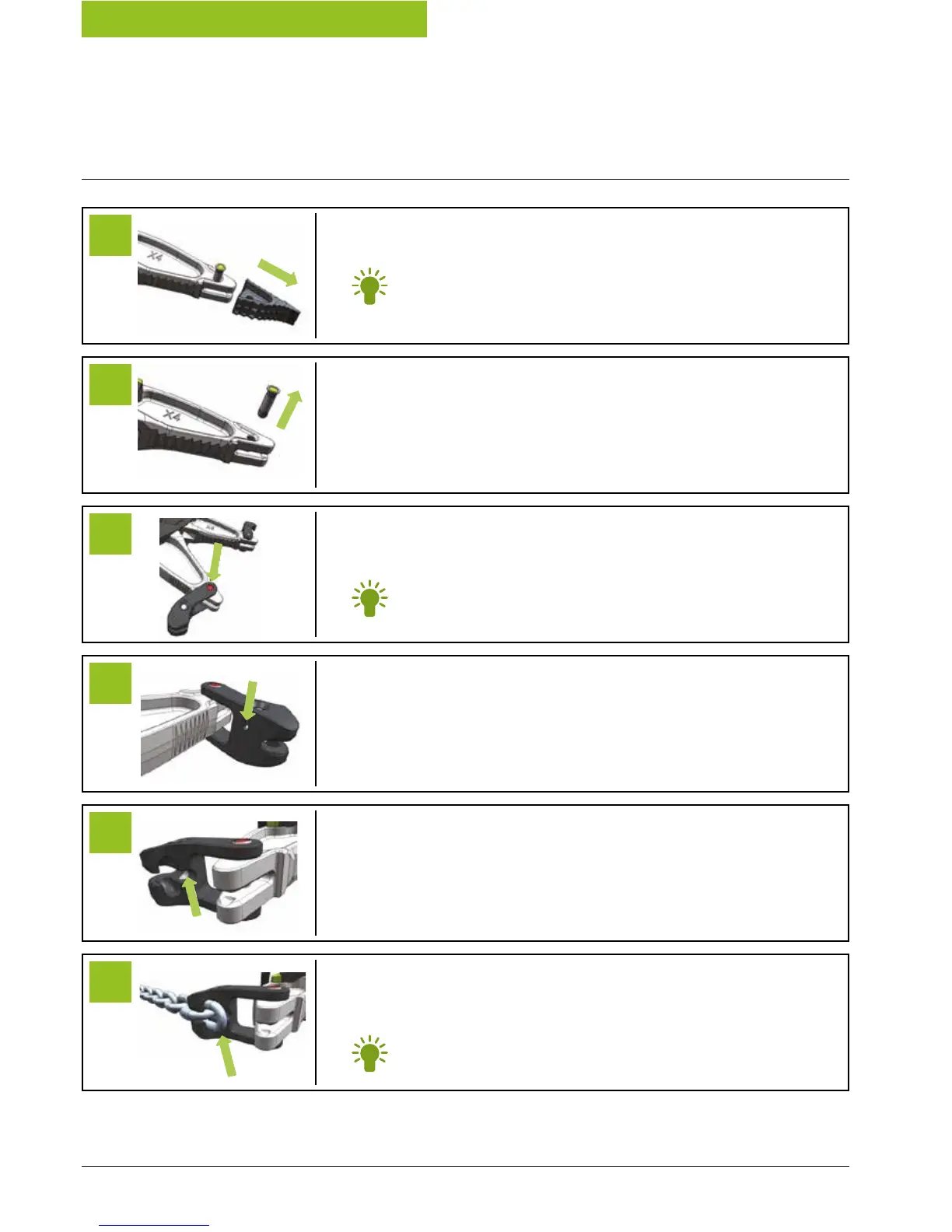

Take off the jaws by pushing/pulling the pins out.
The pin clicks when put in top position.
Pull the pin out completely.
Attach the dedicated pulling jaws and push the chain & shackle pin
(red labeled) into the arm.
The pin clicks when put into place.
Push the unlock button of the pulling jaw.
You can now see the lock pin creates an opening for the chain to enter.
Slide the chain into the chamber.
Release the button of the pulling jaw.
Make sure the chain is locked by the pin.
1
2
3
4
5
6
