USER MANUAL SPREADER X-SERIES
RESQTEC Manual SPREADER X-series (DM064K08)

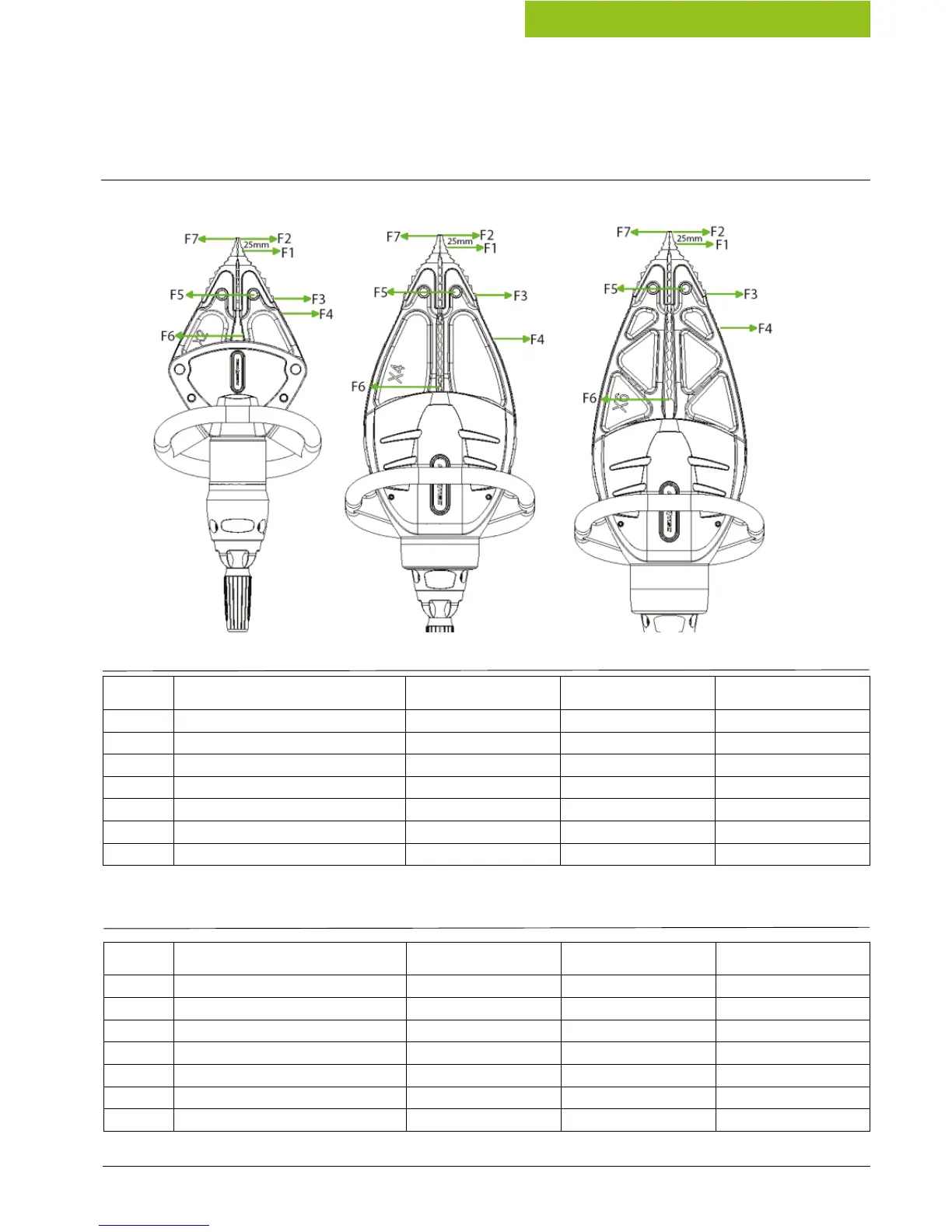

5.2. FORCE SPECIFICATIONS
5.2.1 SI-SYSTEM DATA
1
Maximum is a theoretical force that cannot be measured
5.2.2 IMPERIAL SYSTEM DATA
Force Description X2 X4 X6
F1 EN spreading force 25mm from tip 38.4 - 83.2 kN 53.0 - 91.0 kN 60.4 – 87.4 kN
F2 NFPA HSF-LSF on tip 34.7 – 76.6 kN 46.4 – 82.3 kN 57.0 – 80.9 kN
F3 Spreading force at base of jaw 67.6 – 173.2 kN 71.8 – 213.6 kN 77.7 – 172.0 kN
F4 Spreading force at base of arm teeth
1
105.0 – 342.0 kN 102.7 – 3474.0 kN 109.0 – 2273.8 kN
F5 EN pulling force 45.9 – 91.2 kN 63.4 – 128.1 kN 69.3 – 110.6 kN
F6 Squeezing force at base of arm teeth
1
66.3 – 120.9 kN 176.7 – 289.0 kN 173.4 – 245.7 kN
F7 NFPA HPF-LPF on tip 27.4 – 59.6 kN 45.8 – 74.9 kN 52.8 – 74.2 kN
Force Description X2 X4 X6
F1 EN spreading force 1” from tip 8,633 – 18,704 lbs / 11,915 – 20,458 lbs 13,579 – 17,625 lbs
F2 NFPA HSF-LSF on tip 7,801 – 17,243 lbs 11,106 – 18,519 lbs 12,814 – 18,187 lbs
F3 Spreading force at base of the jaw 15,197 – 38,937 lbs 16,141 – 48,019 lbs 17,468 – 38,667 lbs
F4 Spreading force at base of the arm teeth
1
23,605 – 76,885 lbs 23,088 – 780,986 lbs 24,504 – 511,171 lbs
F5 EN pulling force 10,319 – 20,503 lbs 14,253 – 28,798 lbs 15,579 – 24,864 lbs
F6 Squeezing force at base of the arm teeth
1
14,905 – 27,179 lbs / 39,724 – 64,970 lbs 38,982 – 55,236 lbs
F7 NFPA HPF-LPF on tip 6,160 – 13,399 lbs 10,296 – 16,838 lbs 11,870 – 16,681 lbs
1
Maximum is a theoretical force that cannot be measured
