5.2 Overview table of the parts of the device
Element
Description
Function
AB
Locking bolt
Locks the grinding set
A
Hood
Closes the grinding chamber
B
Damper for hood
Secures the hood when it is open
H
Clamping unit for grinding chamber
Clamps grinding jar on the support
I
Grinding chamber support
Support for grinding jar and centring aid
J
Rubber seal
Seals the inside of the housing of the grinding
chamber
K
Pin closing mechanism
Safety lock for the hood
L
Control panel
Device controller
M
Closing mechanism
Support for pin closing mechanism
N
Handle for clamping unit
Handle to close the clamping unit
O
Sensor for type of grinding jar
Automatic grinding jar recognition
P
Clamping block
Clamps the grinding jar using the clamping lever
Q
Main switch
Disconnects the device from the mains
R
IEC socket
Power supply for the power cable
S
Serial interface
Interface for communication with the device
T
Entry for fuse
Access to the device fuse
U
Type plate
Description of device parameters
V
Warning sign to pull out the plug
Warning of electric shock
W
Sign with instruction to read the
operating manual
Sign pointing out the need to read the operating
manual

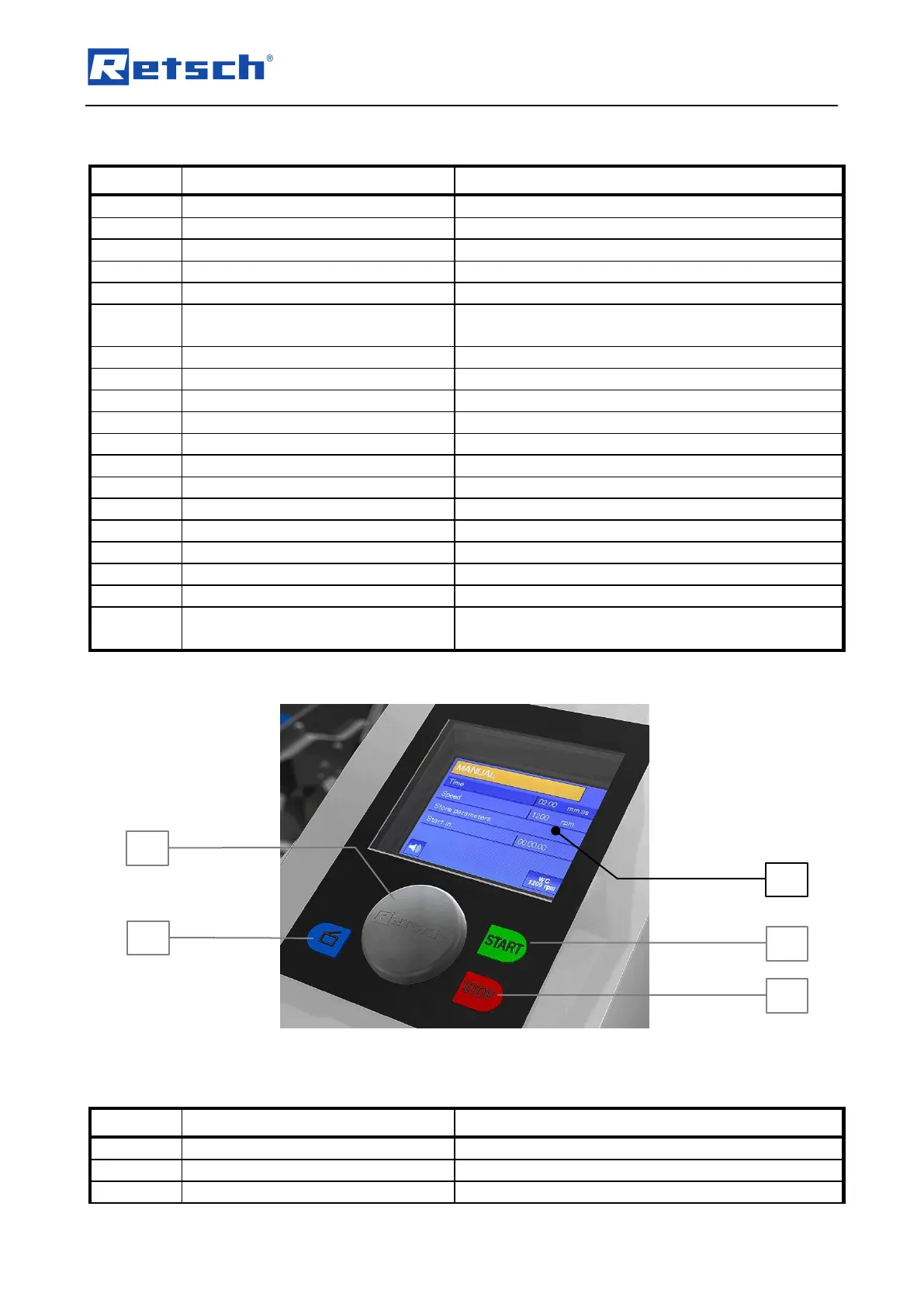

5.3 Operating elements and displays
Fig.
13
: View of the control panel
5.4 Overview Table of the Operating Elements and the Display
Element
Description
Function
F
Operating button (rotary/push button)
Rotary control to operate the device settings
G
Button to open the hood
Unlocks the hood
C
Display
Displays the control functions and parameters
G
C
D
E
F
