Assembling and using the cyclone
33

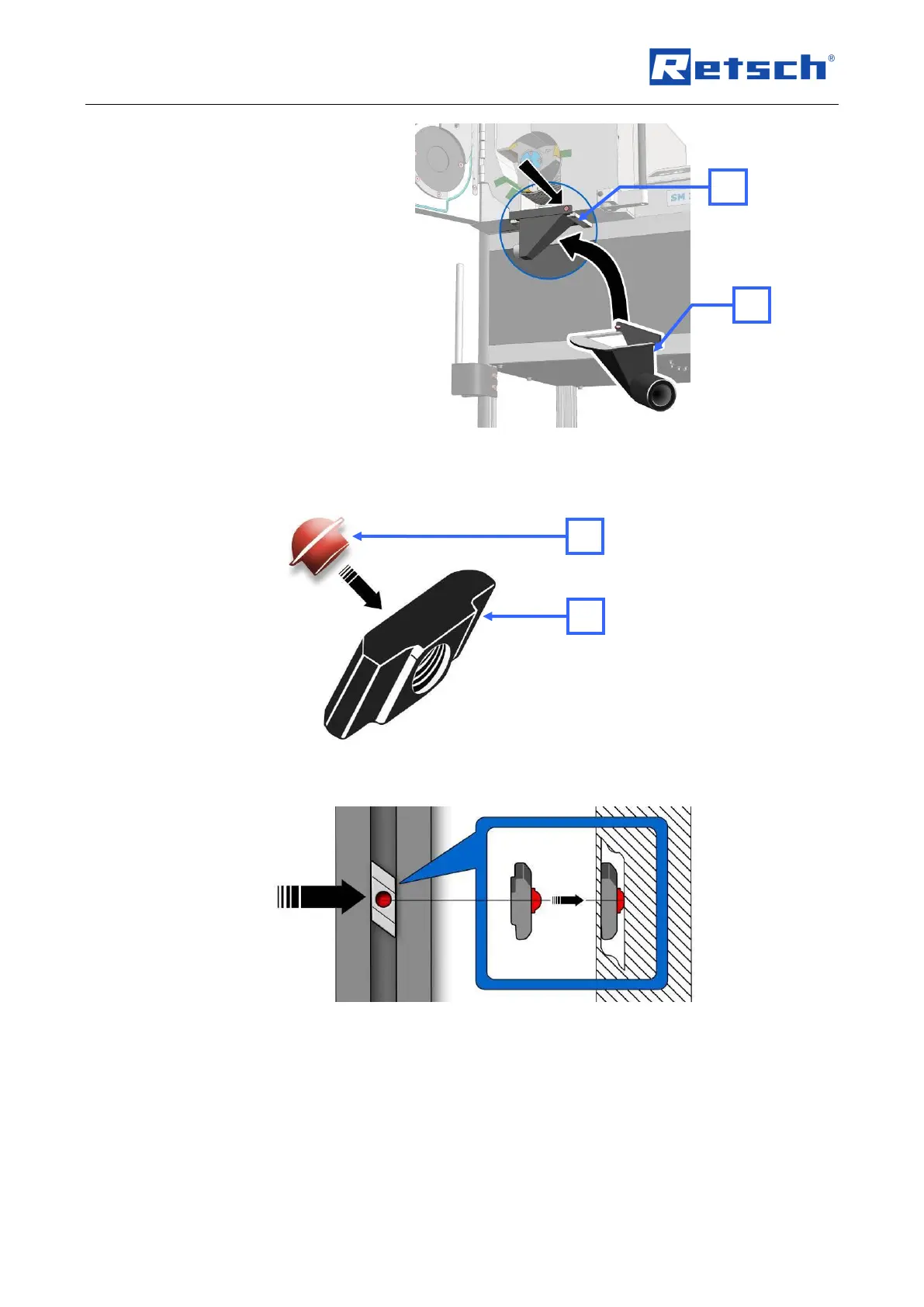

Fig. 19: Fastening the discharge flange
• Insert the retrofit dust removal (U).
• Tighten the screw (U1).
Fig. 20: Inserting the plug for the sliding block
• Insert the plug (HS) into the back (flat surface) of the sliding block (NS).
Fig. 21: Inserting the sliding block
• Guide the sliding block with plug into the aluminium profile.
U
U1
HS
NS
