Assembling and using the cyclone
34

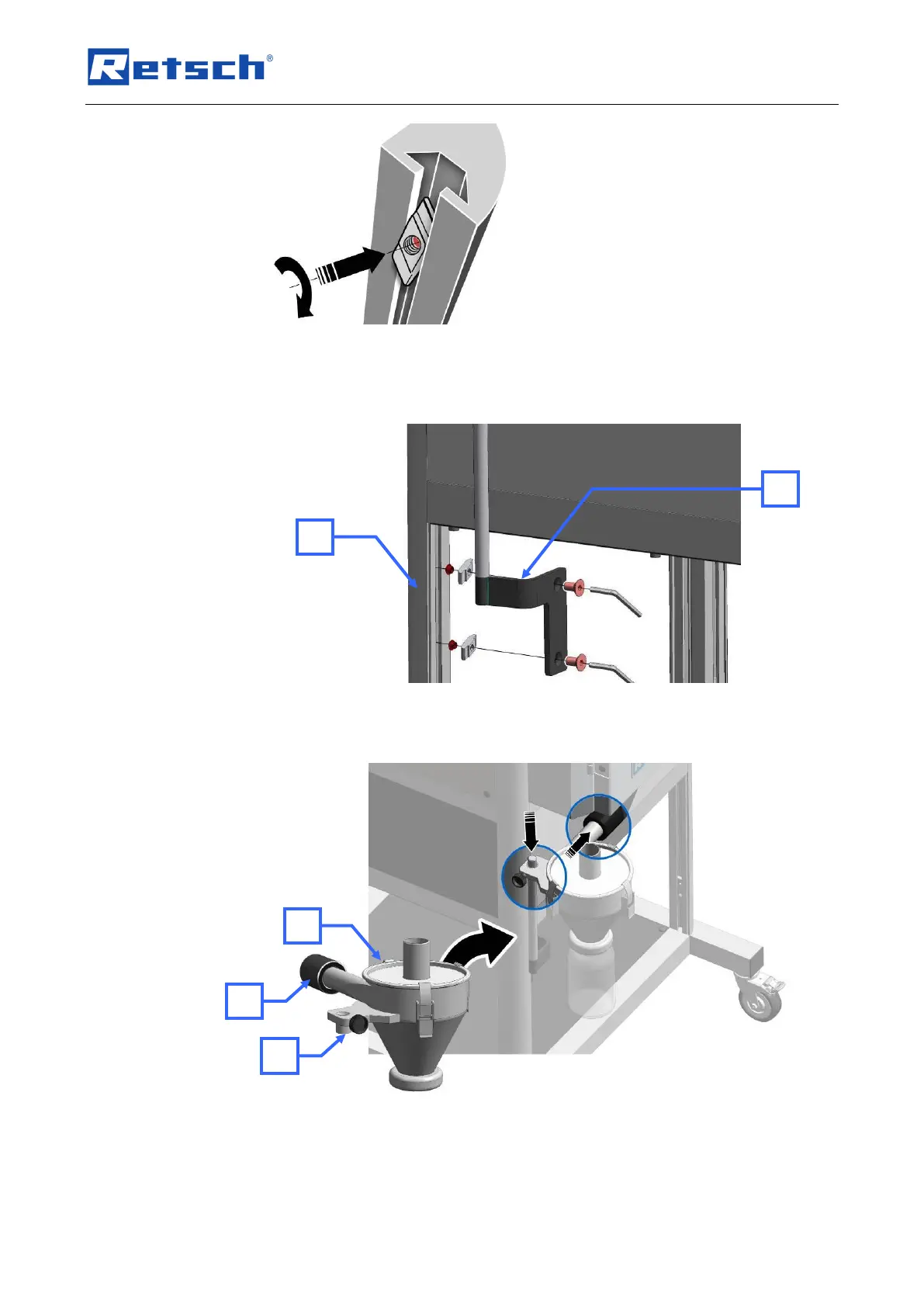

Fig. 22: Turning the sliding block
• Push in the sliding block against the resistance of the plug and turn the
sliding block to the position indicated.
• Insert the second sliding block in the same way.
Fig. 23: Fastening the cyclone support
• Fasten the cyclone support (Z3) on the front left-hand leg of the housing
(GF).
Fig. 24: Installing the cyclone
• Connect the cyclone (Z2) onto the rod of the stand on the cyclone support.
• Turn the side tube to the discharge flange and push the coupling (Z1) onto
the adapters on the discharge flange.
Z
Z1
Z2
Z3
GF
