68 /108 Bosch Rexroth AG CS351/CC-CS351 | 3 609 929 B45/2013-06
Product description
4.1 External interfaces
X1N power supply connection interface
The compact system is delivered with an EU
power supply connection and power plug
with screw terminals. The power supply con-
nection cable can be unscrewed at the con-
nection plug and assembled as desired.
A connection cable for the American market
is available, but must be ordered separately.

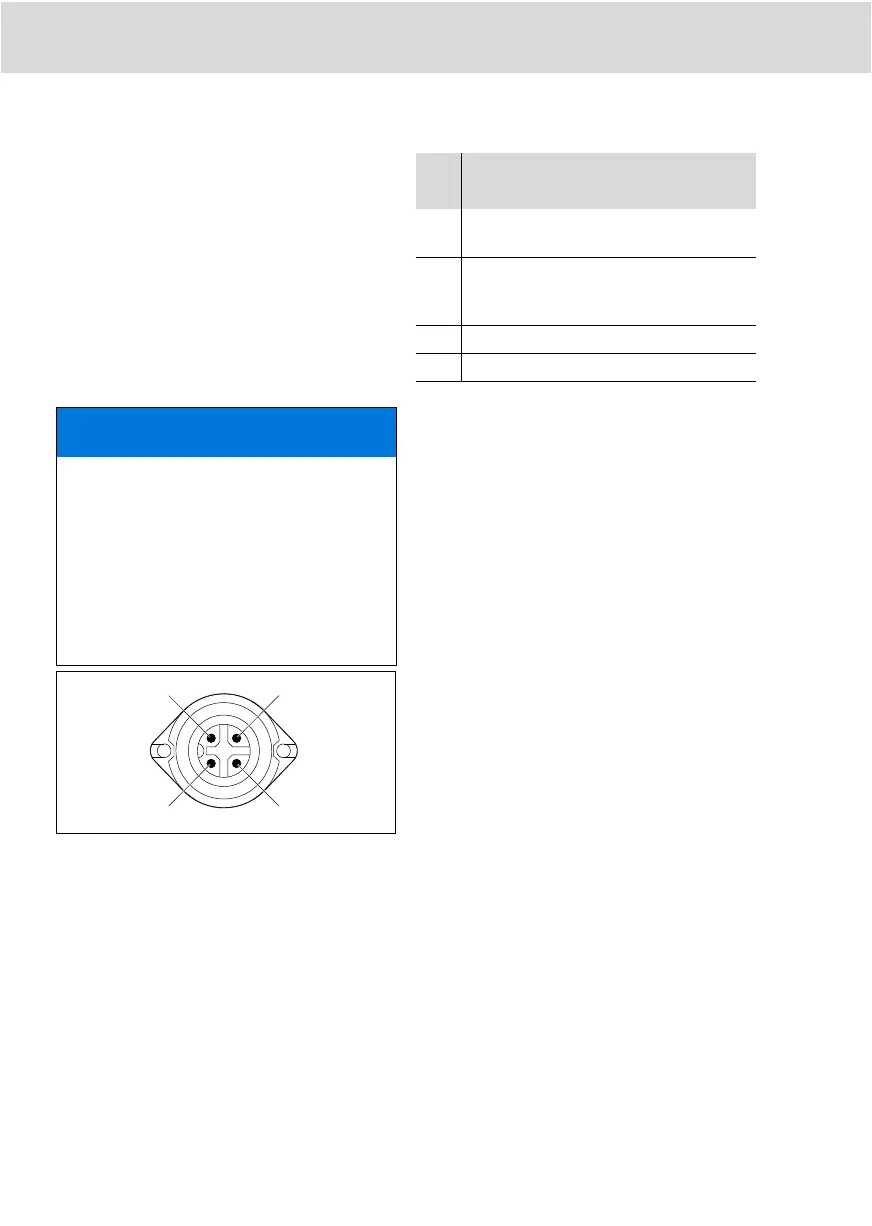

Fig. 4: Connection assignment of the power
supply connection plug
NOTE
Damage through the use of non-
original parts!
Damages to the compact system
 Only use power supply connection
cables from Rexroth.
 Rexroth provides suitable cables in its
product range. Please also observe
the local regulations.
12
PE 3
Table 2: X1N pin assignment
Pin Signal
Description/
function
Voltage/
current
1 L1 L1 power supply
connection
230 V
AC
/5 A,
120V
AC
/10A
2 N Power supply
connection
neutral
230 V
AC
/5 A,
120V
AC
/10A
3n.c. -
PE PE Leading PE wire PE potential
