Bosch Rexroth AG CS351/CC-CS351
| 3 609 929 B45/2013-06
Product description
Hex coding switch
On networked systems (sibracks, system
boxes or compact systems), the valid ad-
dress must be set on the hex coding switch
before commissioning. For this purpose, the
address is determined on the internal bus.
This setting ensures a clear identification of
each tightening channel. Values from 0 - F
(address 0 - 15) can be entered. After having
entered the address, you must reset or restart
the system.

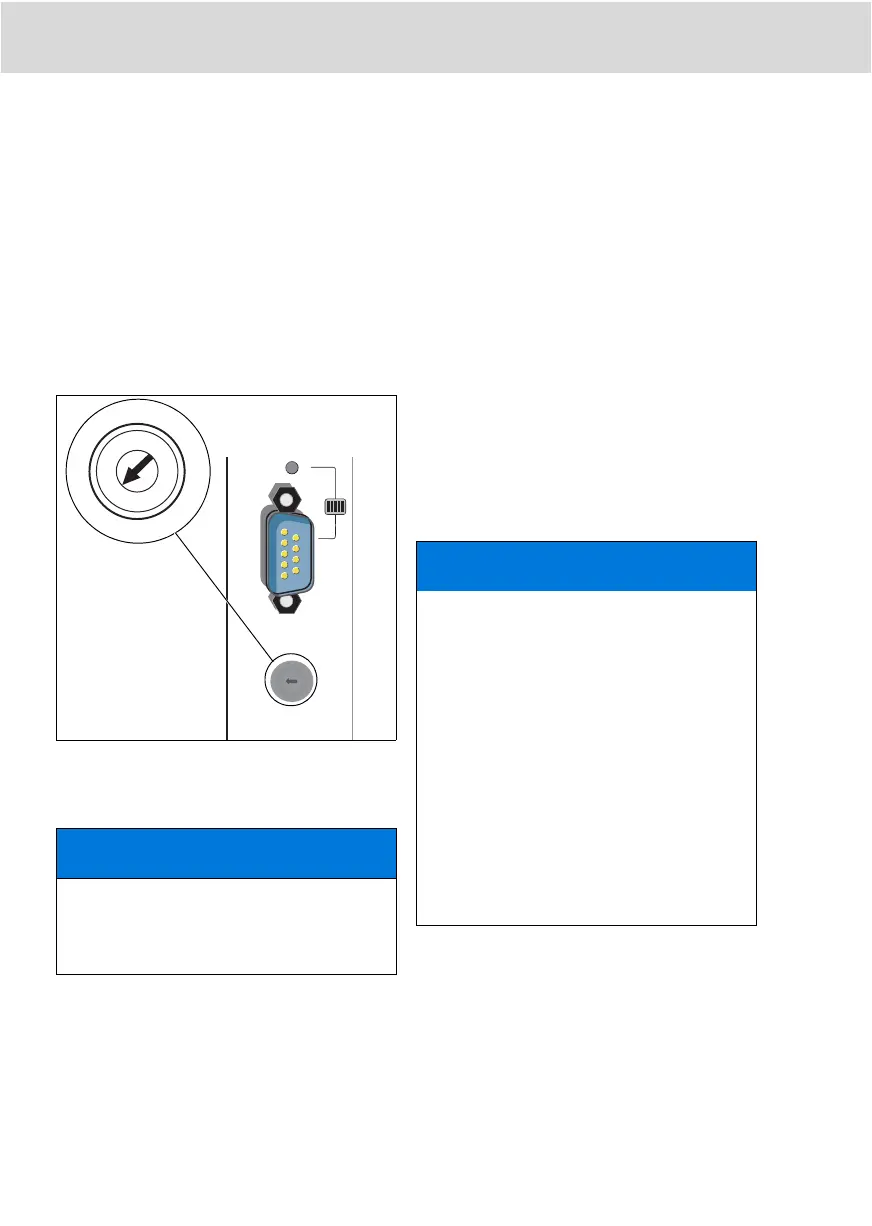

Fig. 22: Setting the address of the Compact
System
4.2 Further interfaces of the
variant with integrated
computer unit
The integrated computer unit of the CS351E-
G+ and CS351S-G+ variants features the
following additional interfaces..
Slot for a Micro-SD memory card
(X6MSD2)
The slot with SDIO interface (Secure Digital
Input Output) is designed for an SD memory
card of size 15 x 11 x 1mm (length x width x
height) functioning according to SDHC stan-
dard.. These cards have a storage capacity of
up to 32 GB.
NOTE
Never enter two identical addresses (sub-
rack, system box or compact system) in
the system bus. The address of the sys-
tem bus users must always be unique.
8
9
A
B
C
D
E
F
0
1
2
3
4
5
6
7
NOTE
If it is inserted improperly, the mem-
ory card may get lost.
Carefully insert the card into the slot,
holding it straight and with its pins
pointing forward. The product label
(card front side) must be on the top.
When starting insertion, make particu-
larly sure that you position the card in
the guide provided and avoid posi-
tioning it in the gap between the card
guide and the front panel.
Push the memory card into the slot
until you can feel it stop. Do not push
it any further.
