Maintenance and repair

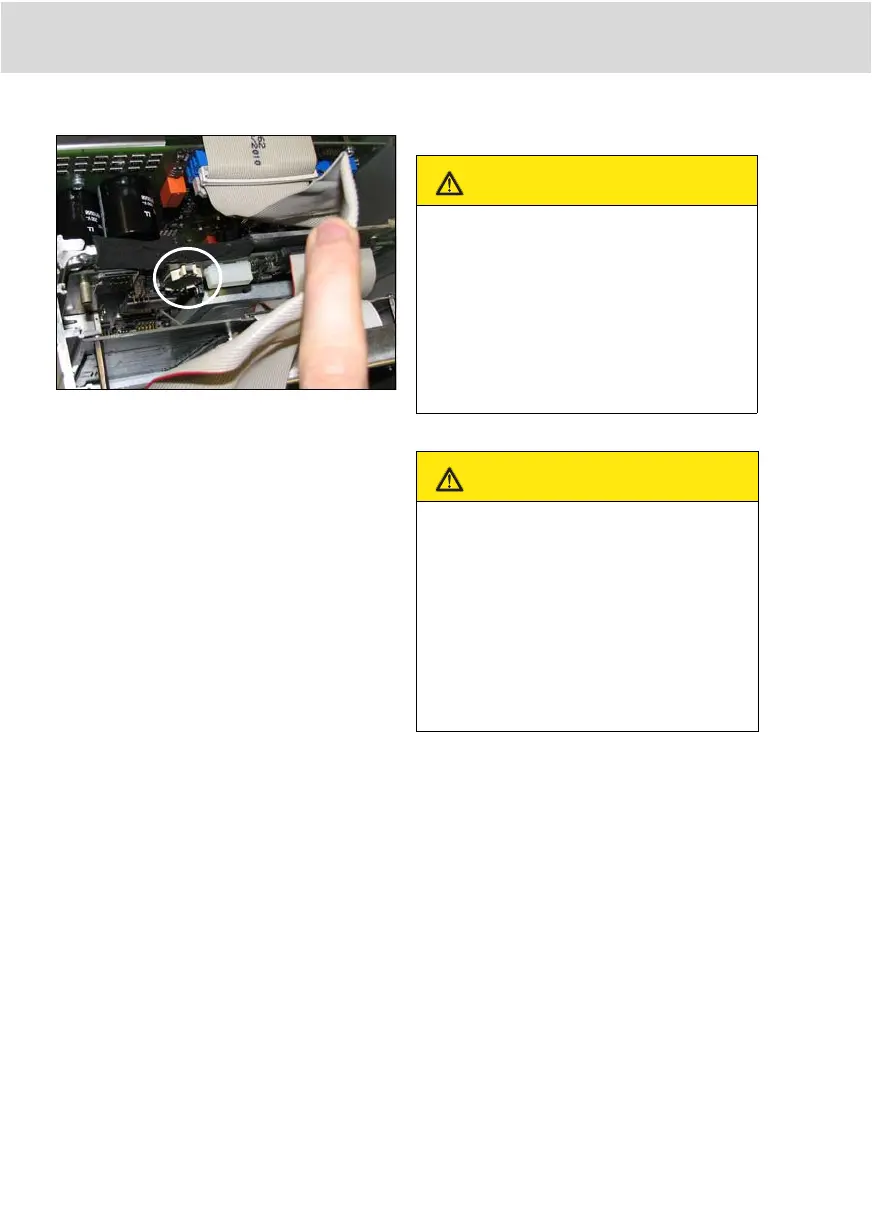

Fig. 40: Changing the battery (computer unit)
• Remove the discharged battery by hand or
using tweezers which must be made of
non-conducting material. Under no circum-
stances may conductive tools be used to
remove the battery - short circuit danger.
Fig. 40 shows the position of the battery in
the white circle.
• Insert the new battery. Positive pole at the
front. Press the battery into the holder until
it engages.
• Attach the cover. The tightening torque for
the bolts is 1.4+1Nm.
Please observe the battery disposal instruc-
tions in chapter 2, section " Disposal".
Cleaning and care
Cover all openings with the appropriate pro-
tective caps/equipment.
Check that all seals and plugs for the plug
connections are firmly fitted so that no humid-
ity can penetrate the Compact System during
cleaning.
Avoid causing damage when cleaning the
Compact System, especially to the TFT dis-
play, by only wiping it with a damp cloth.
Avoid contact of the display with hard, sharp-
edged objects.
CAUTION
Any dirt or liquids penetrating the
device lead to malfunctions!
Safe function of the Compact System is
no longer ensured.
Always provide for absolute clean-
ness when working on the Compact
System.
Do not use a high-pressure cleaner.
CAUTION
Damage to the surface caused by
solvents and aggressive detergents!
Aggressive detergents may damage the
seals on the Compact System and let
them age faster.
Never use solvents or aggressive de-
tergents.
Do not use a high-pressure cleaner for
cleaning.
