3.2 RF-BM-ND08(I)
RF-BM-ND08 is pin to pin compatible with and RF-BM-ND08I. The difference is that the antenna of RF-BM-ND08 is
PCB type, while RF-BM-ND08I is IPEX type. SWD debugging ports are on the bottom side of the module, which is not
pull out in the stamp half hole way, please refer to the module pin diagram for details.

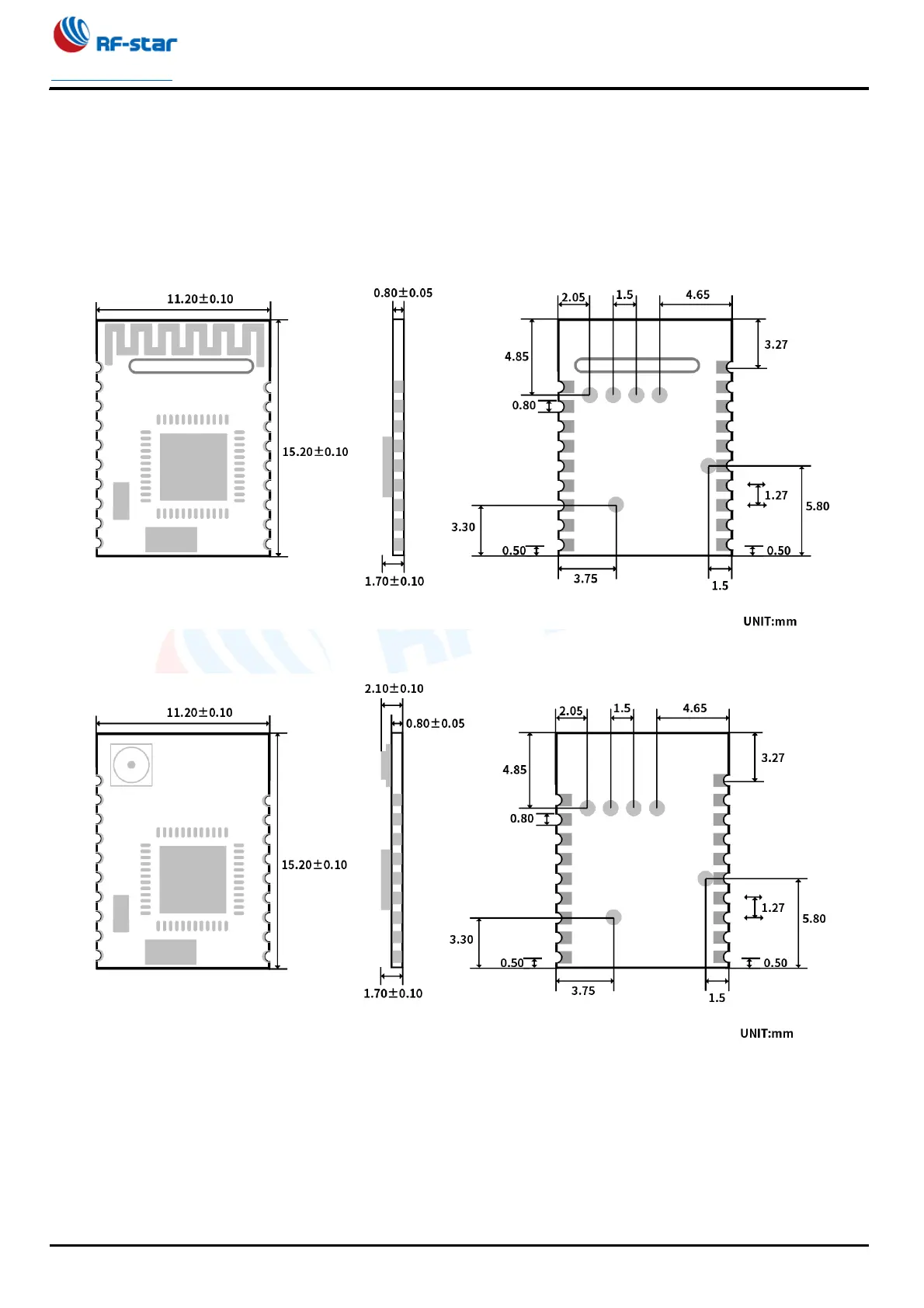

Figure 5. PCB Footprint of RF-BM-ND08
Figure 6. PCB Footprint of RF-BM-ND08I
