10 Application, Implementation, and Layout
10.1Antenna

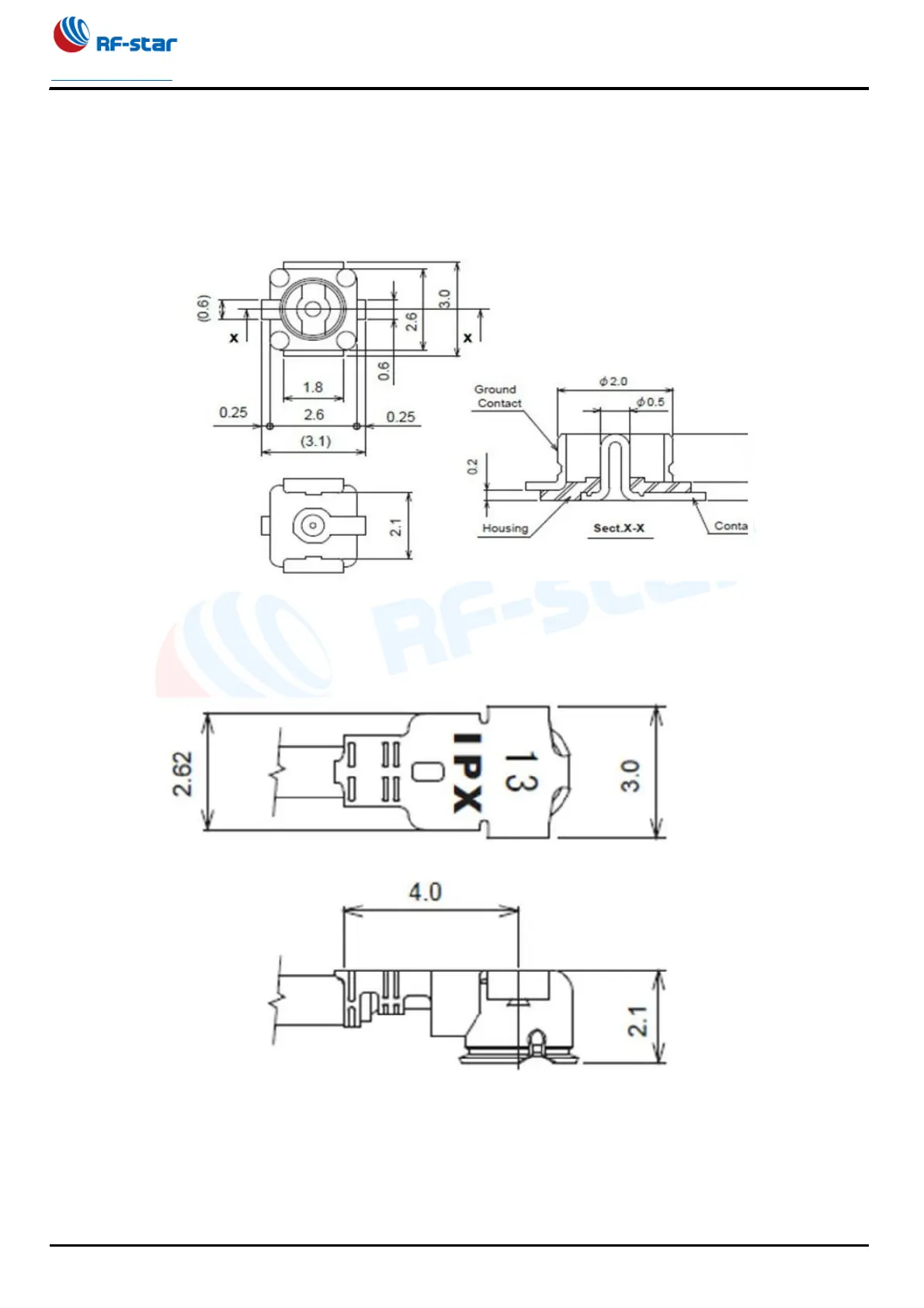

RF-BM-ND04I module is integrated the IPEX version 1 antenna seat, the specification of antenna seat is as follow:
Figure 8. Specification of Antenna Seat
The specification of IPEX wire end is as follow:
Figure 9. Specification of IPEX Wire
Antenna output mode change:
The module has two antenna output modes: IPEX connector output and stamp half-hole antenna output (ANT pin, see
pin function table for details).
