RGBlink M1 User Manual

M1 User Manual
50

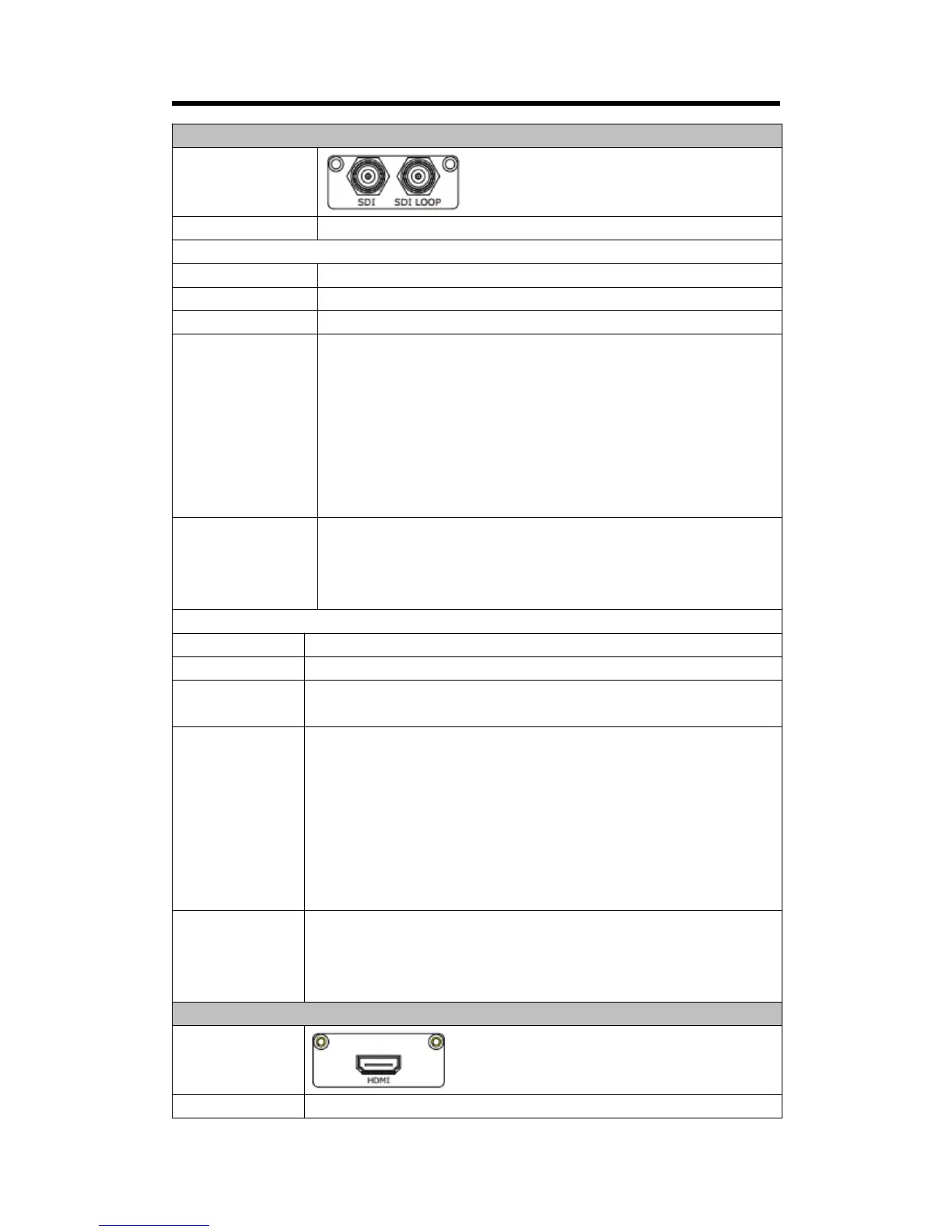

3G-SDI Input (SDI optional module)
Interface
Appearance
Board Size
52(L)×19.5(W) (mm)
3G-SDI Input
Connector
Standard BNC Socket
Data Rate
2.97Gb/s, 2.97/1.001Gb/s, 1.485Gb/s, 1.485/1.001Gb/s and 270Mb/s
Supported Standard
SMPTE 425M - 3G Level A and Level B
Supported
Resolution
SMPTE 425M (3G Level A) 4:2:2: 1920×1080@60Hz (1:1) |
1920×1080@50Hz (1:1).
SMPTE 425M (3G Level B DS1 and DS2) 4:2:2: 1920×1080@60Hz (2:1) |
1920×1080@50Hz (2:1)
SMPTE 296M (HD): 1280×720@50Hz (1:1) | 1280×720@50Hz (1:1)
SMPTE 125M (SD): 1440×487@60Hz (2:1) | 525-line 487 generic
SMPTE ITU-R BT.656 (SD): 1440×576@50Hz (2:1),
625-line generic.
Balance
Belden 1694A cable:
150m at 2.97Gb/s
250m at 1.485Gb/s
480m at 270Mb/s
SDI Loop Out
Connector
Standard BNC Socket
Data Rate
2.97Gb/s, 2.97/1.001Gb/s, 1.485Gb/s, 1.485/1.001Gb/s and 270Mb/s
Supported
Standard
SMPTE 425M - 3G Level A and Level B
Supported
Resolution
SMPTE 425M (3G Level A) 4:2:2: 1920×1080@60 (1:1) |
1920×1080@50 (1:1).
SMPTE 425M (3G Level B DS1 and DS2) 4:2:2: 1920×1080@60 (2:1) |
1920×1080@50 (2:1)
SMPTE 296M (HD): 1280×720@50 (1:1) | 1280×720@50 (1:1)
SMPTE 125M (SD): 1440×487@60 (2:1), 525-line 487 generic
SMPTE ITU-R BT.656 (SD): 1440×576@50 (2:1),
625-line generic.
Balance
Belden 1694A cable:
150m at 2.97Gb/s
250m at 1.485Gb/s
480m at 270Mb/s
HDMI Input (HDMI optional module)
Interface
Appearance
Board Size
52(L)×19.5(W) (mm)
