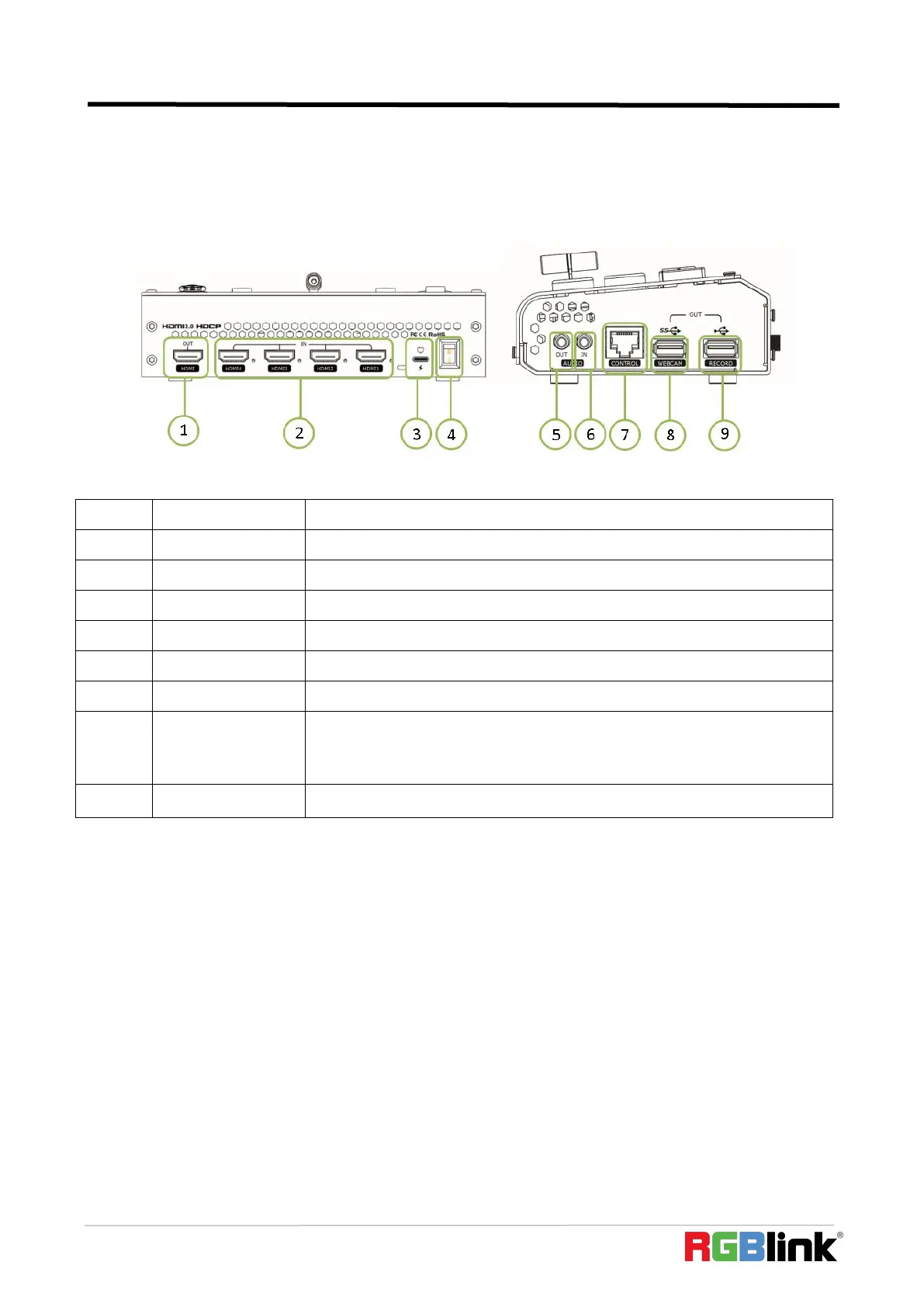

Interface Panel
1
HDMI OUT
1 HDMI Output port, connect to display to show Preview (6 pictures) or PGM.
2
HDMI IN
4 HDMI 4K Inputs, connect to input source from 4K or HD camera or PC
3
Type C
1 Type C Jack for power input, connect to PD power adapter
4
Power
Switch on to power on mini-pro
5
AUDIO OUT
AUDIO OUT, analog audio output port, connect to loudspeaker
6
AUDIO IN
AUDIO IN, analog audio input port,support MIC and LINE input
7
CONTROL
Communication port to link dedicated software for control
8
WEBCAM
USB output, capture signal via third party streaming software and push to
live broadcasting websites, support access to smart phones for mobile
pushing stream
9
RECORD
Connect to SSD to record audio and video from PGM

RGBlink mini pro Specifications

General

Video Inputs	4x HDMI
Ethernet	Yes
Input	HDMI
Audio Inputs	Embedded HDMI
Audio Outputs	Embedded HDMI
Control	Ethernet
Streaming	via USB
Power Supply	12V DC
Output	HDMI, USB-C
Audio	Embedded HDMI audio, External 3.5mm stereo audio
