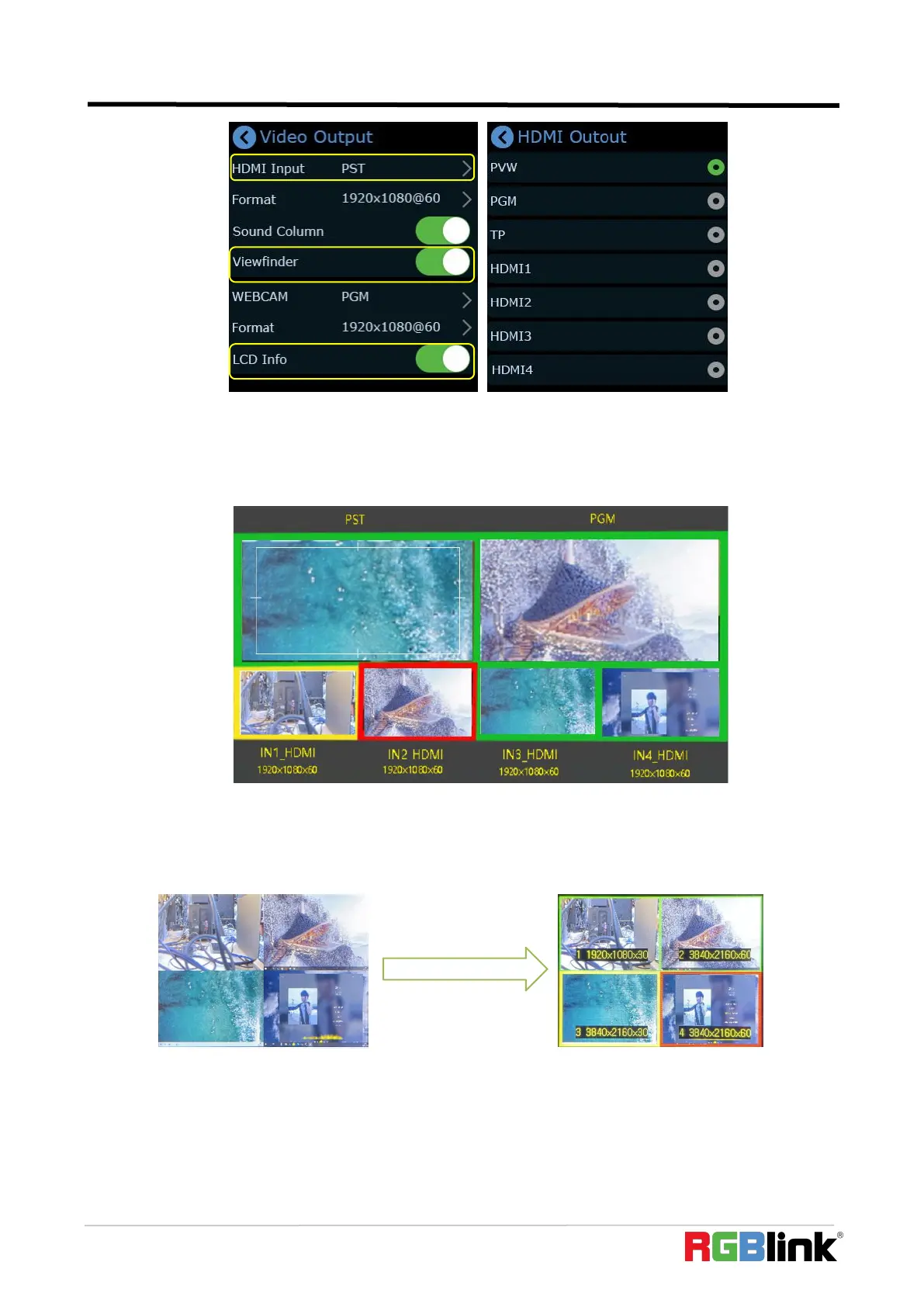

Push button【M】again when the touch screen is in main menu interface and touch screen will
enter 4-screen input source preview.
Turn on【Viewfinder】, you can see a white rectangle in the PST as shown in the picture,helping
users frame the camera view.
The【LCD Info】is LCD display setting, which controls whether the 2x2 video preview is【simple】
or as 【standard(PVW)】,turn on【LCD Info】to check the resolution of four inputs as shown in the
picture below:
USB3.0 Output
USB 3.0 output recognized as WEBCAM on computer defaults to be PGM which can be changed
to multi-screen PST or TP (Test Pattern).
Turn on
Simple
Standard

RGBlink mini pro Specifications

General

Video Inputs	4x HDMI
Ethernet	Yes
Input	HDMI
Audio Inputs	Embedded HDMI
Audio Outputs	Embedded HDMI
Control	Ethernet
Streaming	via USB
Power Supply	12V DC
Output	HDMI, USB-C
Audio	Embedded HDMI audio, External 3.5mm stereo audio
