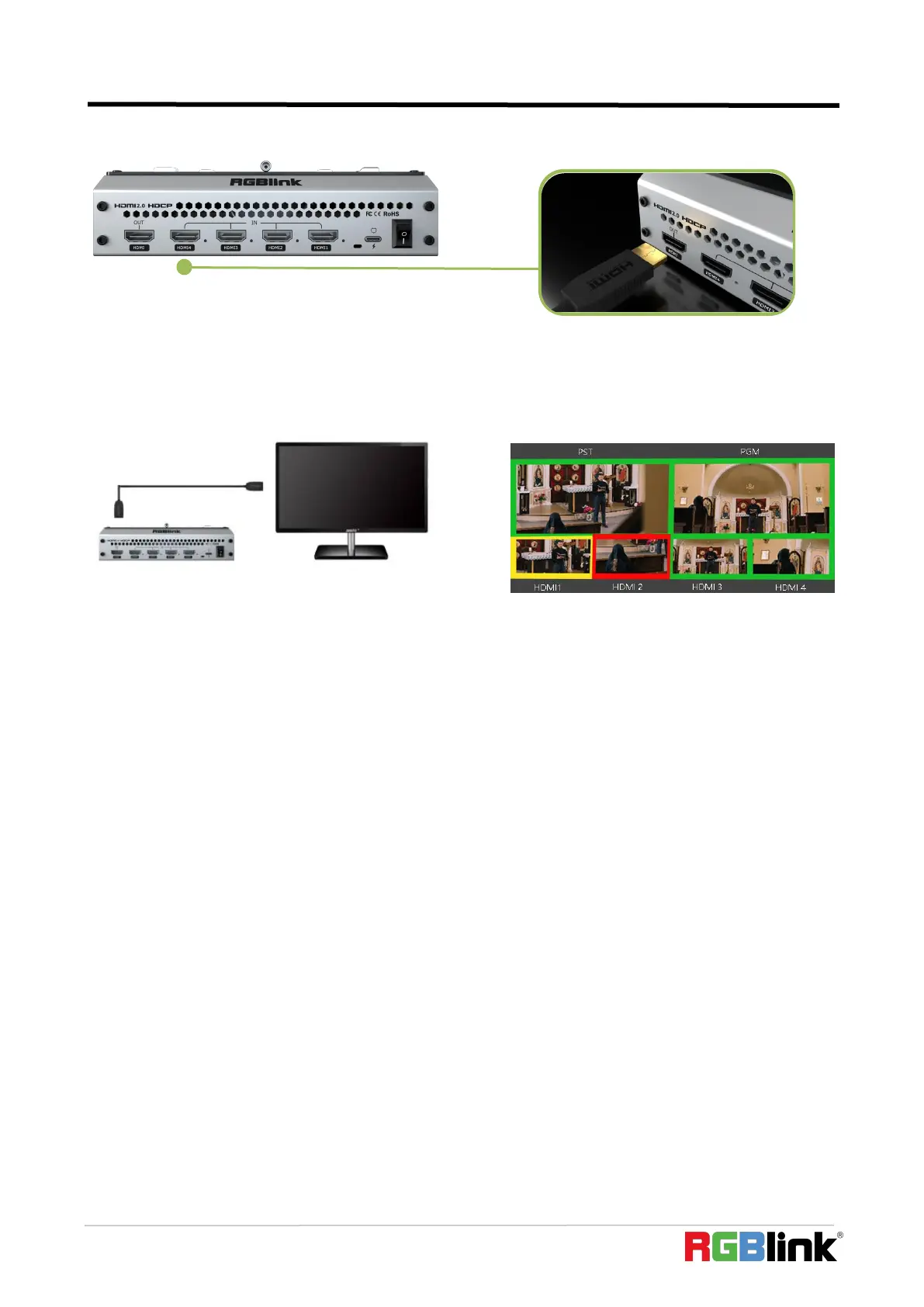

You can use an HDMI cable to connect the HDMI output to a monitor with an HDMI input
interface, so that you can monitor the input, output and audio display in real time.
The default output of HDMI output is multi-screen PVW (Preview) monitoring screen, so you
can see the audio and video conditions of all input signal sources, you can see the current status of
each function of mini-pro, and you can also see the PST (Preset) and current PGM (program)output.
In addition to supporting multi-screen monitoring, HDMI output also supports single screen
display of any one of the four inputs. You can switch between PVW and PGM In【Video Output】
menu.
HDMI output supports resolution setting . After pressing the【 M】 button, tap the OUTPUT
setting on the menu to select the output resolution format. HDMI output supports resolution up to
1080p60.
2.4 Connecting Microphone and External
Monitoring Devices
On the right panel of mini-pro,there is a 3.5mm standard microphone interface which can be
directly connect to the microphone or wireless MIC, or LINE output from the external audio console
to do audio mixing of multiple external audio inputs.
The mini-pro supports 3.5mm analog audio and 4-channel HDMI digital audio for
multi-channel simultaneous mix in to make sure sound of the computer and the sound of the MIC
can be output at the same time.
You can use external speakers or headphones to monitor the main output audio signal in real
time.
