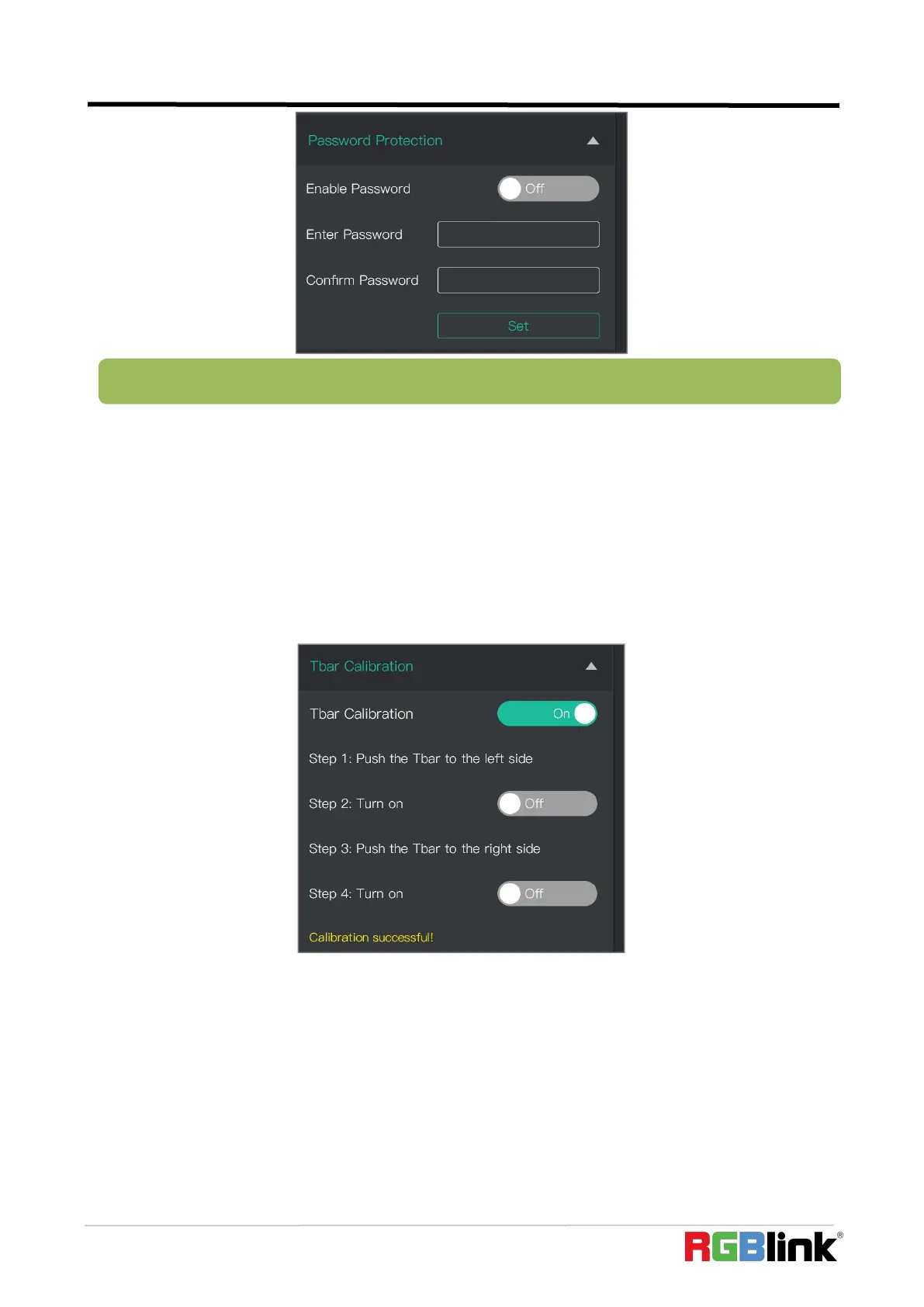

T-Bar Calibration
If the T-Bar is not in the correct position, no other operation is possible. t-Bar correction is available
in XPOSE mini.
The steps are as follow：
1. Turn on the T-Bar Calibration switch.
2. Push the T-Bar to the far right on the mini-pro.
3. Turn on the "On" switch
4. Push the T-Bar to the far left on the mini-pro.
5. Turn on the "On" switch
5.3 Upgrade
1.Tools：
 Firmware ZIP upgrade package
 XTOOL (V1.0.1.10 or higher) -packaged in the ZIP
 Computer with network connection
o Windows (minimum Win 7, Win 10 recommended)
o macOS (minimum 10.13 High Sierra)
Note: If you have forgotten your password, please restore the factory settings on the mini-pro.

RGBlink mini pro Specifications

General

Video Inputs	4x HDMI
Ethernet	Yes
Input	HDMI
Audio Inputs	Embedded HDMI
Audio Outputs	Embedded HDMI
Control	Ethernet
Streaming	via USB
Power Supply	12V DC
Output	HDMI, USB-C
Audio	Embedded HDMI audio, External 3.5mm stereo audio
