Inside
3
1

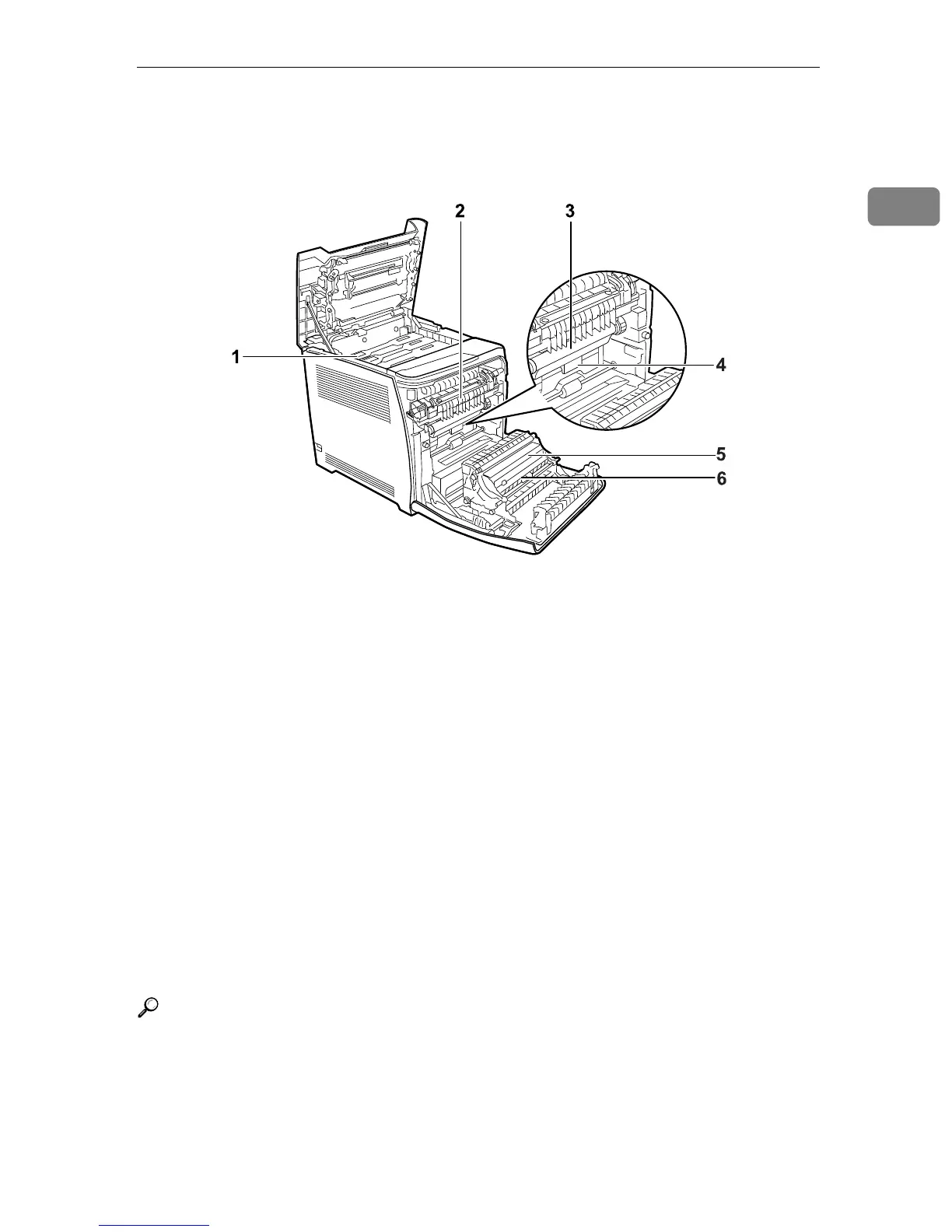

Inside
1. Print Cartridge
Loads from the printer rear, in the order
of cyan (C), magenta (M), yellow (Y), and
black (K).
If the following message appears on the
control panel, replace the print cartridge:
“
Replace (Color) Print Cartridge
”
2. Fusing Unit
If the following message appears on the
control panel, replace the fusing unit:
“Replace Fusing Unit”
3. Intermediate Transfer Unit
If the following message appears on the
control panel, replace the intermediate
transfer unit:
“Replace Transfer Belt”
4. Waste Toner Bottle
Collects toner that is wasted during
printing.
If the following message appears on the
control panel, replace the waste toner
bottle:
“Replace Waste Toner”
5. Transcription Roller
If the following message appears on the
control panel, replace the transcription
roller, which is included with the fusing
unit:
“Replace Fusing Unit”
6. Transfer unit
Remove this unit when replacing the
waste toner bottle, intermediate transfer
unit.
Reference
For details about the messages which appear on the screen to prompt you to
replace the units, see p.109 “Error & Status Messages on the Control Panel”.
ASI002S
