10.2 Viewing the Harness Diagram

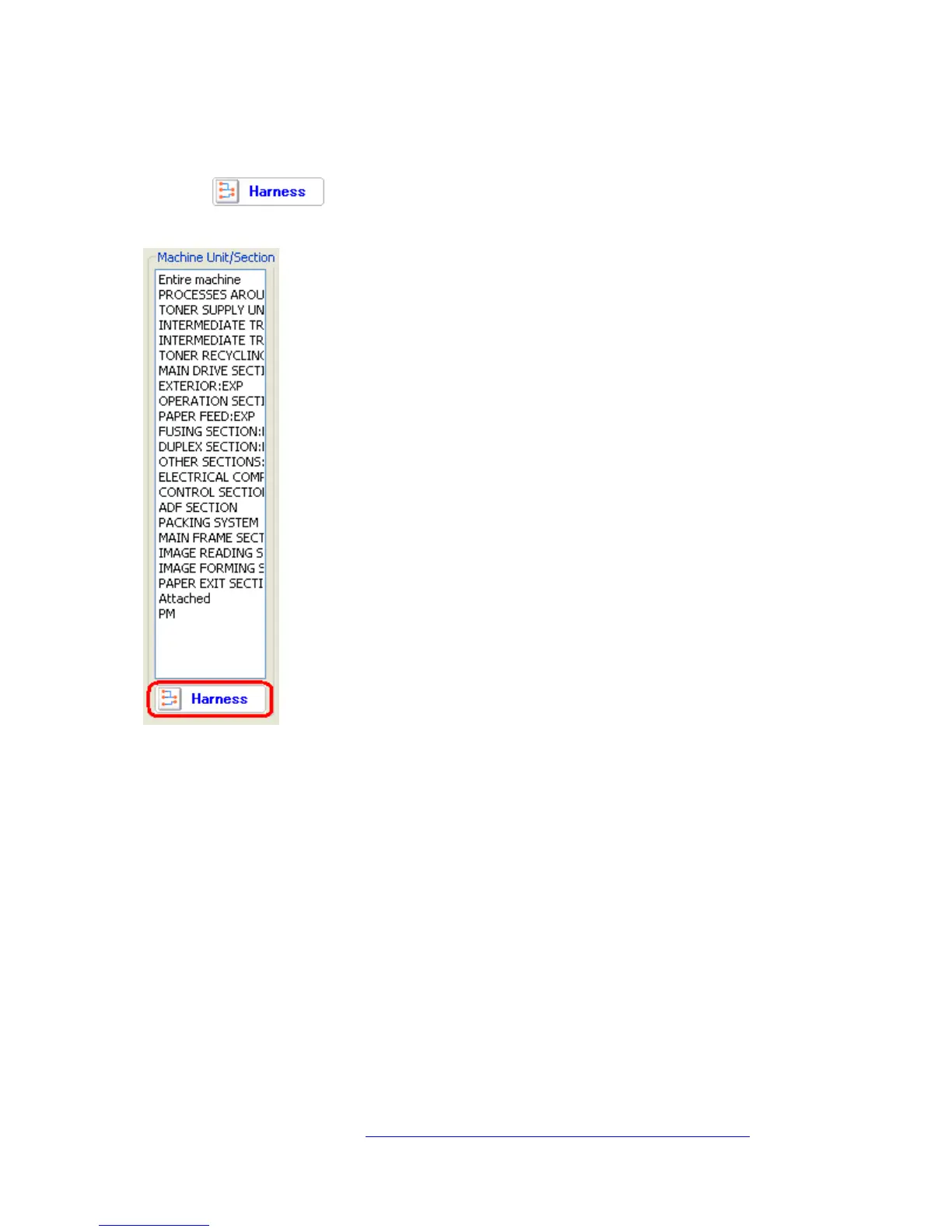

Click on the
icon to view the harness diagram (Point to Point Diagram). This
icon is located just below the Machine Unit/Section list.
