10. Other Functions
10.1 Internal Views of Units
It is possible to view the internal layout of some units/sections, so that individual parts can
be located more easily with “Specify physical area” and “Click search”. The view is as if the
unit’s cover or bracket has been removed.

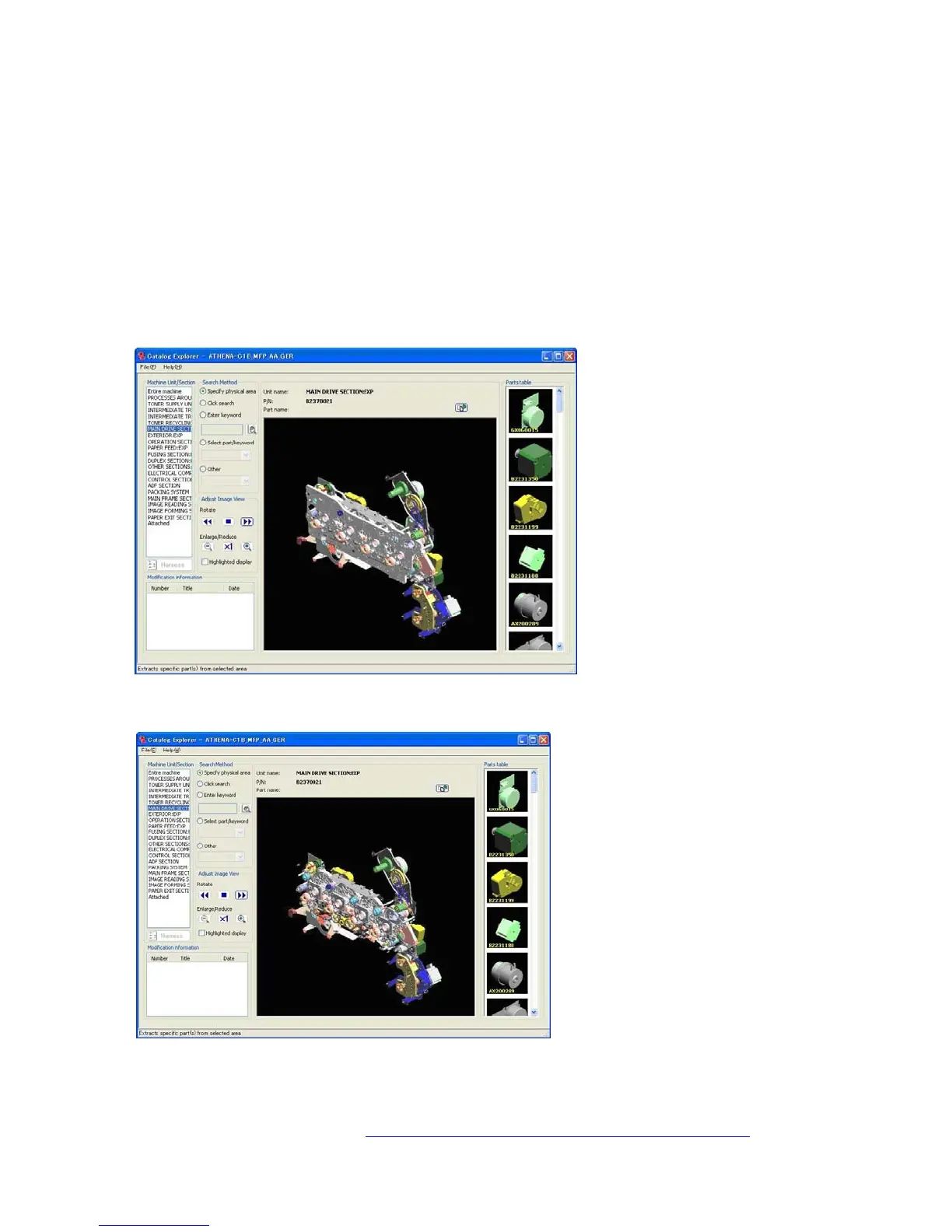

Default view:
Internal view:
