1.Replacement and Adjustment
50

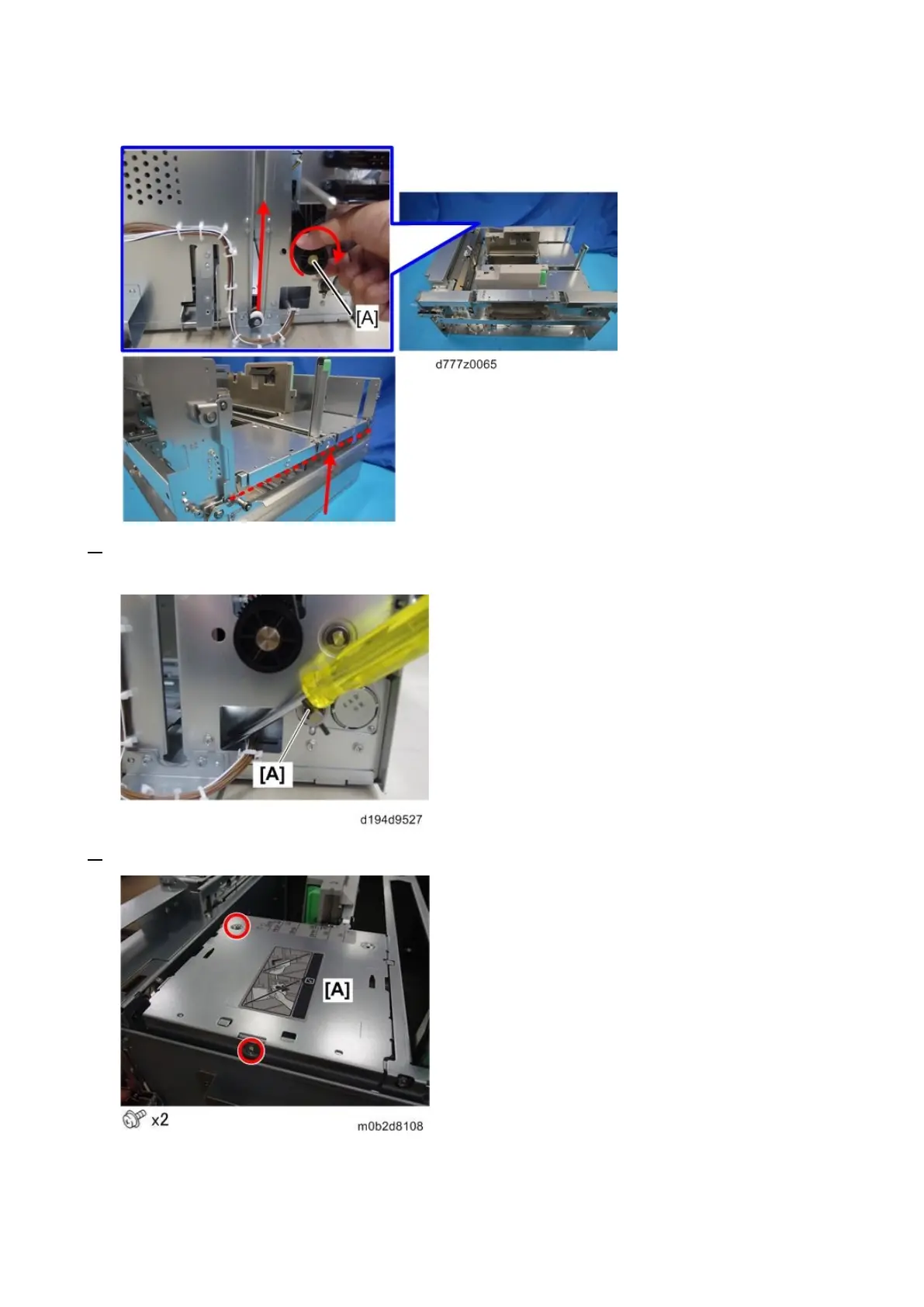

bottom plate until it becomes visible on the end fence side.
5. When the bottom plate has been raised, insert a screwdriver or similar object in the hole in the
sheet metal at the bottom of the wire pick-up roller to prevent the pin [A] from turning.
6. Remove the bottom plate [A] on the front side.
