1.Replacement and Adjustment
51

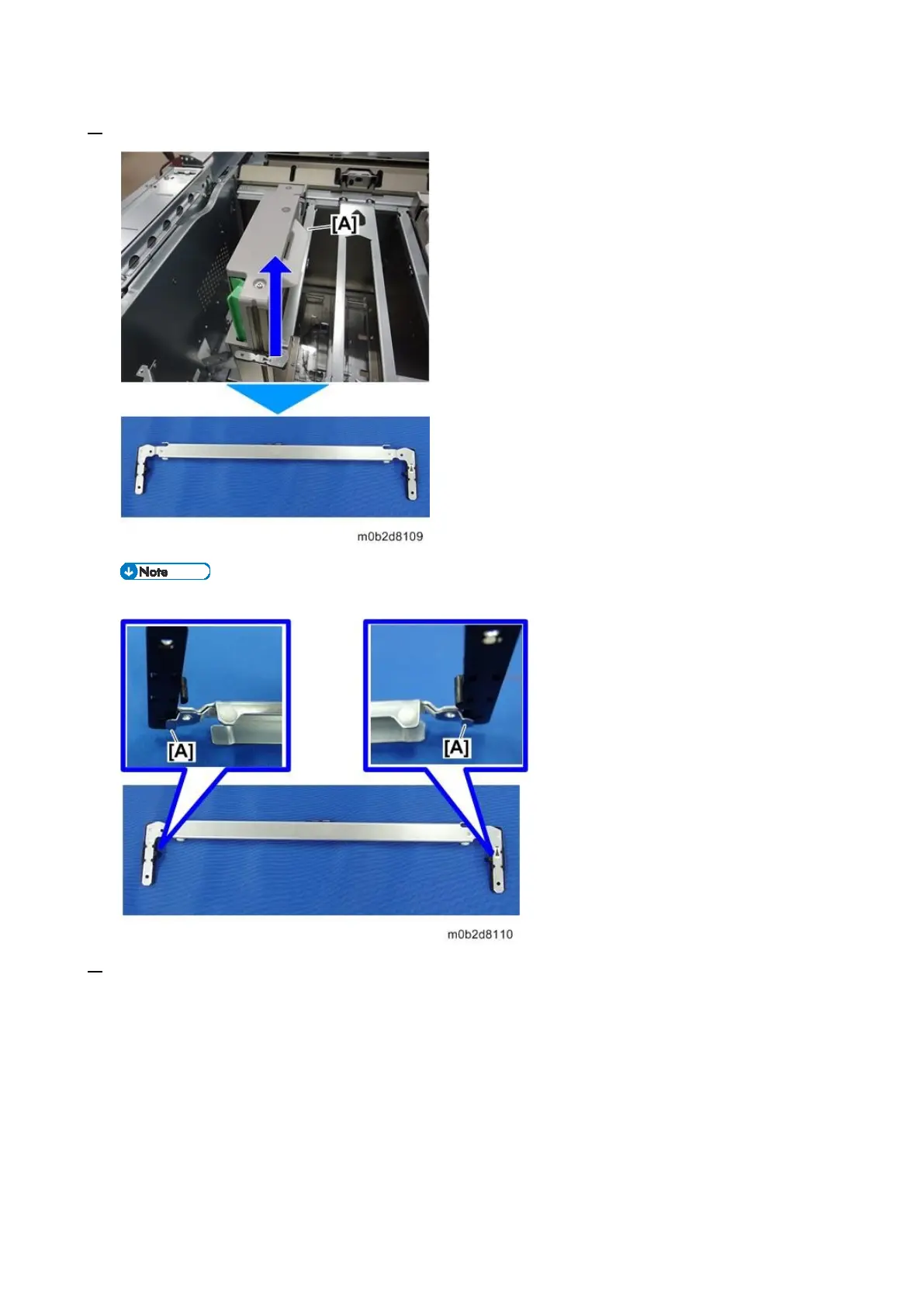

7. Remove the side fence guide [A].
The guide is secured by the hook parts [A] that fit on the bottom plate.
8. As the same way in the previous steps, remove the bottom plate on the rear side to remove the
side fence guide.
