Registering Folders
217
7
M

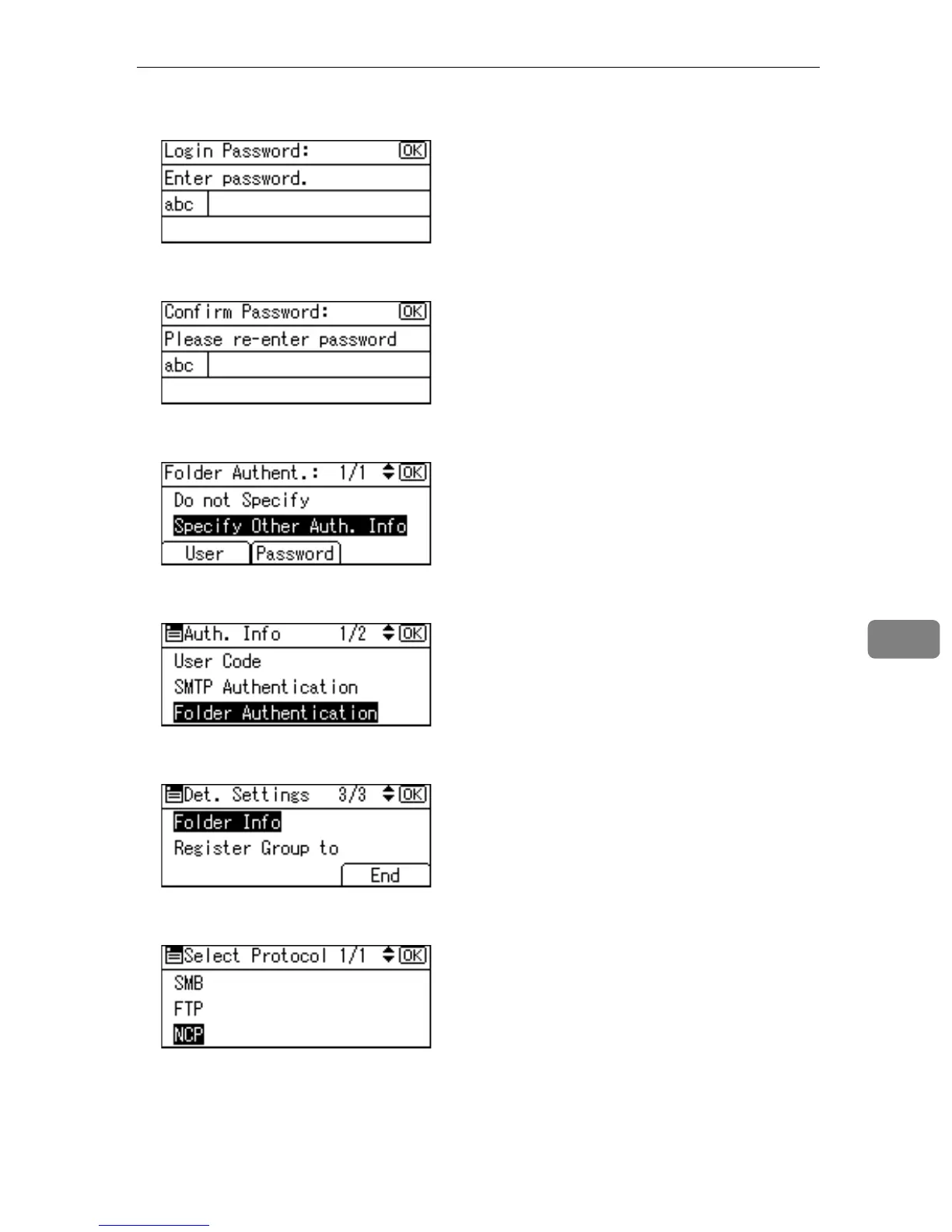

Enter the password, and then press the
{
OK
}
key.
N
Enter the password again to confirm, and then press the
{
OK
}
key.
O
Press the
{
OK
}
key.
P
Press the
{
Escape
}
key.
Q
Select
[
Folder Info
]
using
{U}
or
{T}
, and then press the
{
OK
}
key.
R
Select
[
NCP
]
using
{U}
or
{T}
, and then press the
{
OK
}
key.
304
306
