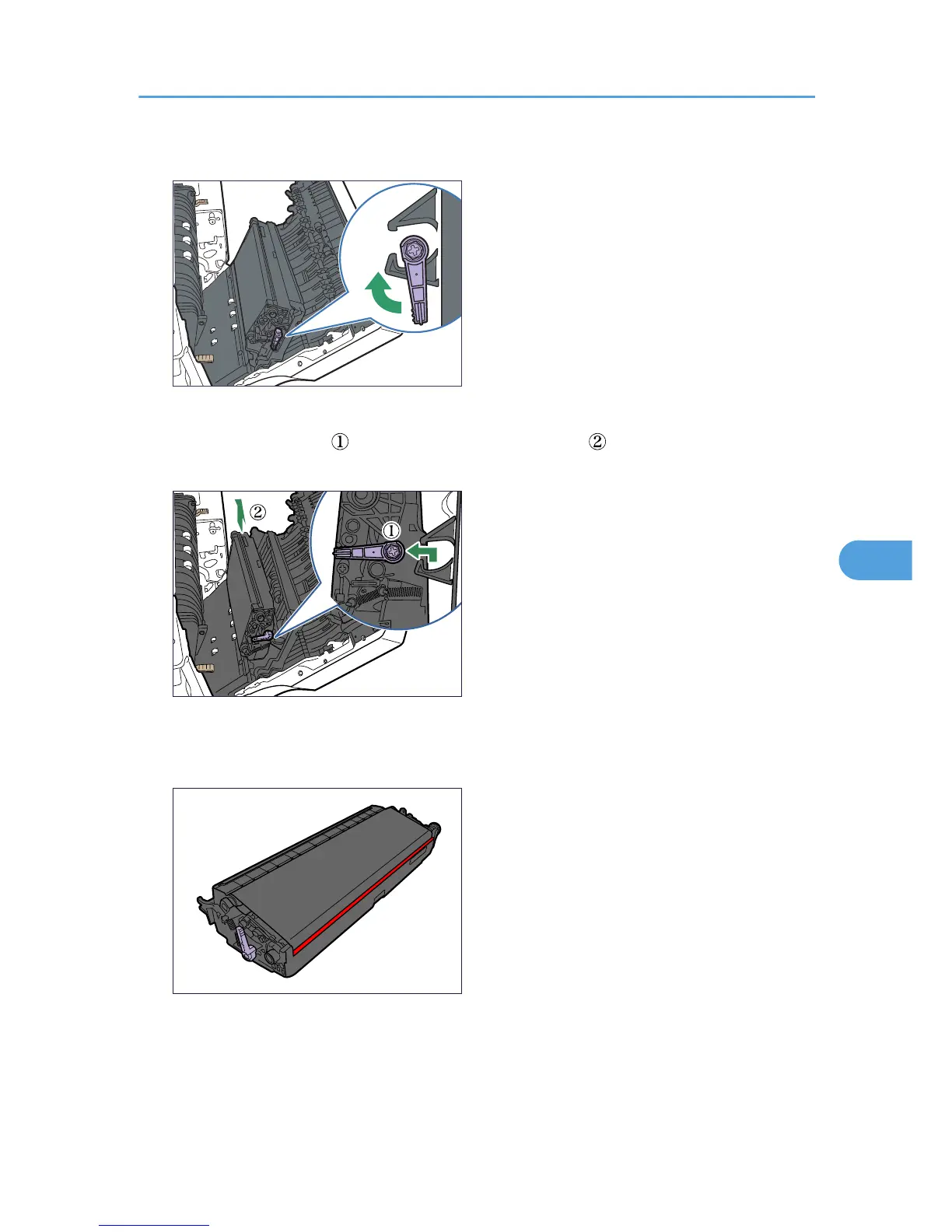

3. Raise the purple lever inside the right cover.
BEK160S
4. Holding both sides of the unit, lift the unit slightly and bring it towards the printer to unhook
it from the right cover ( ), and then take it out completely ( ). Put the used transfer unit on
paper or similar material to avoid dirtying your workspace.
BEK161S
Be careful not to tilt or shake the unit. Otherwise, toner might scatter.
5. Take the new transfer unit out of the box, and remove the plastic bag.
BEK162S
6. Remove the desiccant from the transfer unit.
Replacing Maintenance Kit B
123
6
