Ricoh MLP150DN Operaing Instructions

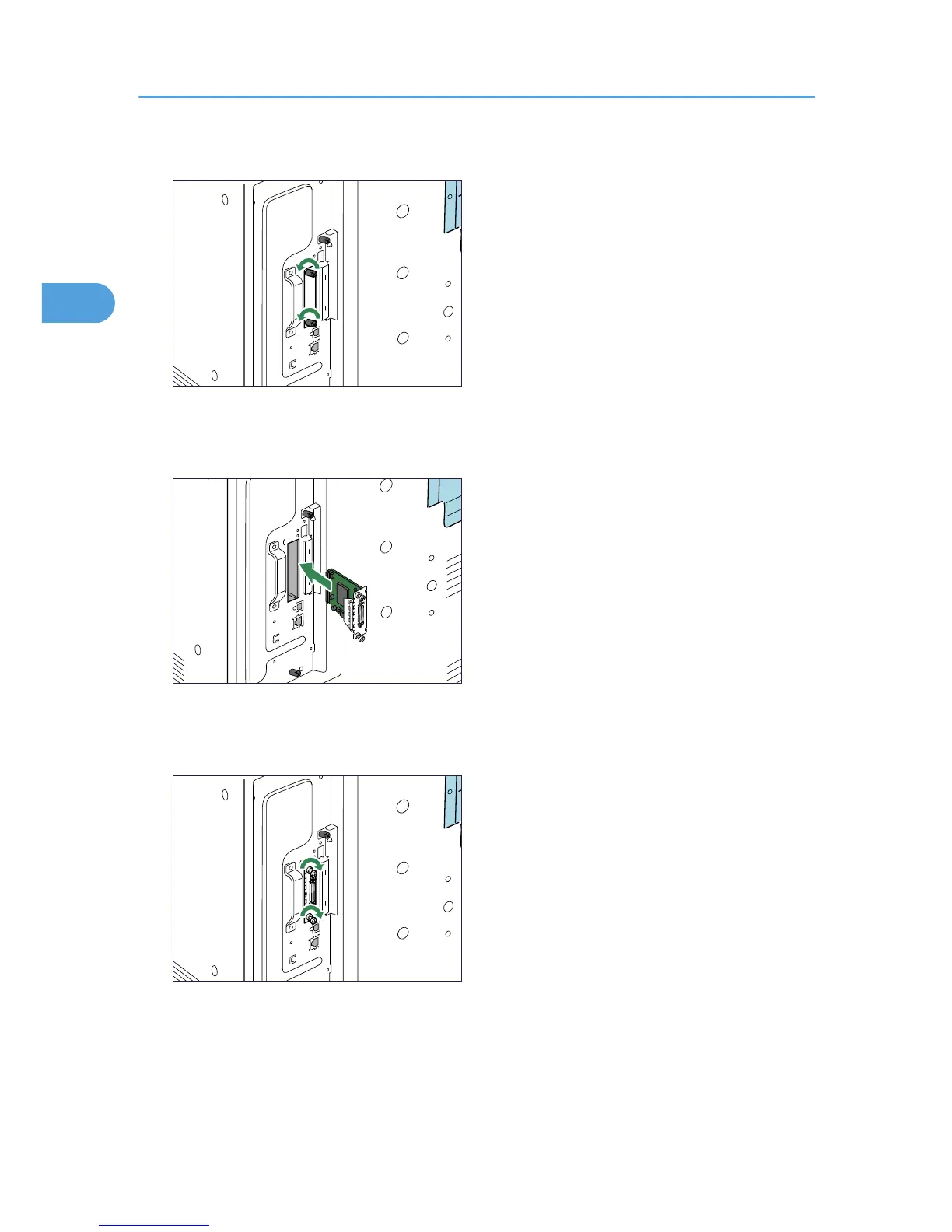

3. Loosen the two screws and remove the slot cover.
BEK145S
The removed cover will not be reused.
4. Fully insert the IEEE 1284 interface board.
BEK146S
Confirm that the IEEE 1284 interface board is firmly connected to the controller board.
5. Tighten the two screws to secure the interface board.
BEK147S
6. Plug in the power cord, and then turn on the printer.
7. Print the configuration page to confirm that the board was attached correctly.
2. Installing Options
44
2
