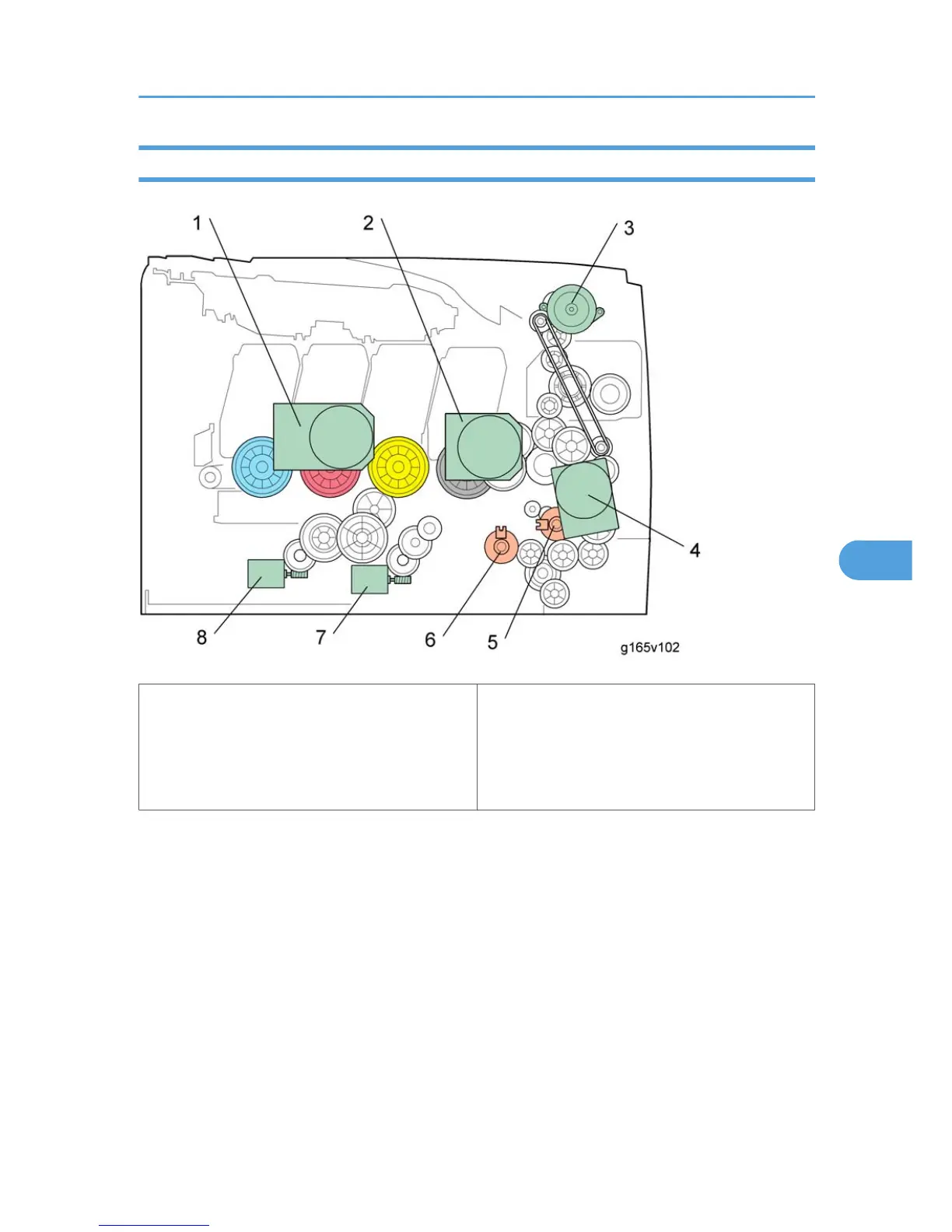

Drive Layout
1. Color AIO Motor
2. Black AIO Motor
3. Duplex Motor (Duplex model only)
4. Transport/Fusing Motor
5. Registration Clutch
6. Paper Feed Clutch
7. Agitator Motor
8. ITB (Image Transfer Belt) Contact Motor
• Color AIO Motor:
This drives the color AIOs (Cyan, Magenta and Yellow)
• Black AIO Motor:
This drives the black AIO and the ITB (Image Transfer Belt).
• Duplex Motor (Duplex model only):
This drives the paper exit roller and the duplex roller.
• Transport/Fusing Motor:
This drives the fusing unit, paper feed roller, registration roller and paper exit roller* via the paper
feed clutch, registration clutch and gears. (*: This motor only drives the paper exit roller in non-duplex
models.)
