Ricoh PE-P1 User Manual

Scanner Top Cover

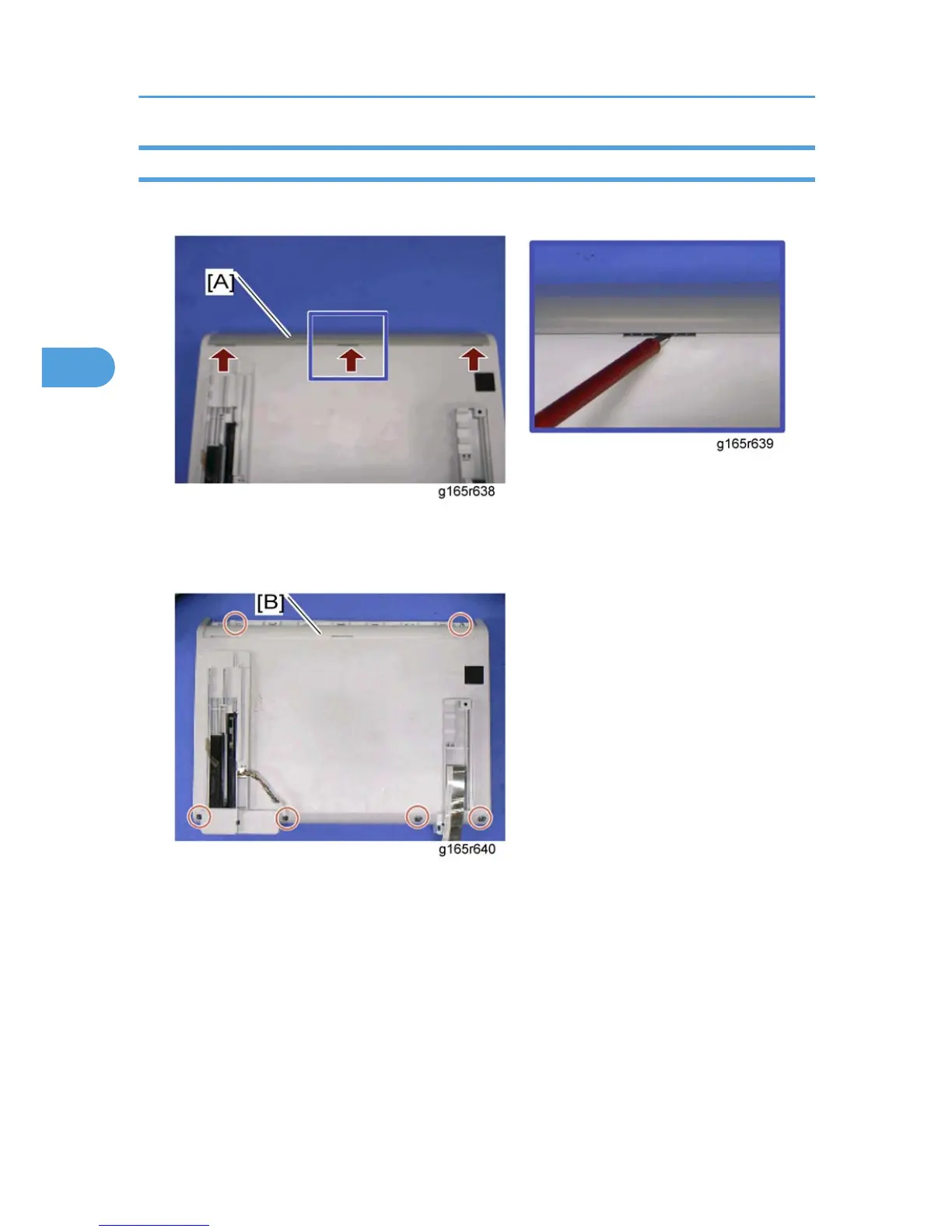

1. Scanner unit (* Scanner Unit)
2. Turn over the scanner unit.
3. Scanner front cover [A] (tabs x 3)
4. Remove the six screws at the bottom of the scanner base [B].
3. Replacement and Adjustment
90
3
