Printing Process
This machine uses four AIOs and four laser beams for color printing. Each AIO contains a drum, charge
roller, cleaning brush, blade, development roller and mixing auger.
The toner image on each drum is moved to the image transfer belt. The four colors are put on the belt. All
four toners are put on the belt at the same time. Then the completed four-color image is moved to the paper.

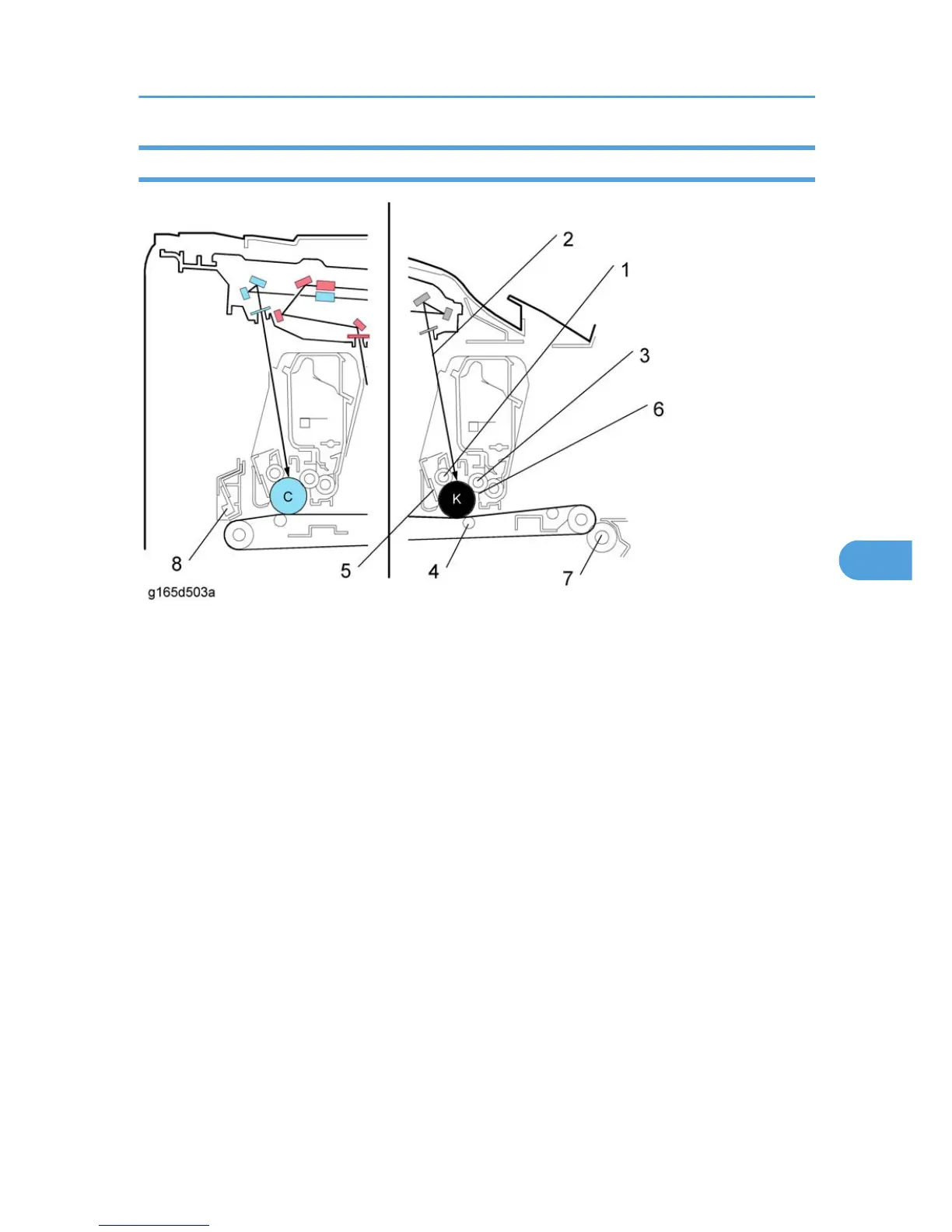

1. OPC charge (AIO):
The charge roller gives the OPC a negative charge.
2. Laser exposure:
The laser beam from the laser diode (LD) goes through the lens and mirrors and to the drum. To make
a latent image on the drum, the machine turns the laser beam on and off.
3. Development (AIO):
The development roller moves negatively-charged toner to the latent image on the drum surface. This
machine uses four development units (one for each color).
4. Image transfer:
The charge that is applied to the image transfer roller pulls the toner from the drum to the transfer belt.
Four toner images are put on the paper at the same time.
5. Cleaning for the OPC:
The cleaning blade removes remaining toner on the drum surface after image transfer to the paper.
6. Quenching for the Development Roller:
Machine Overview
