Ricoh PE-P1 - Optical Path

Optical Path

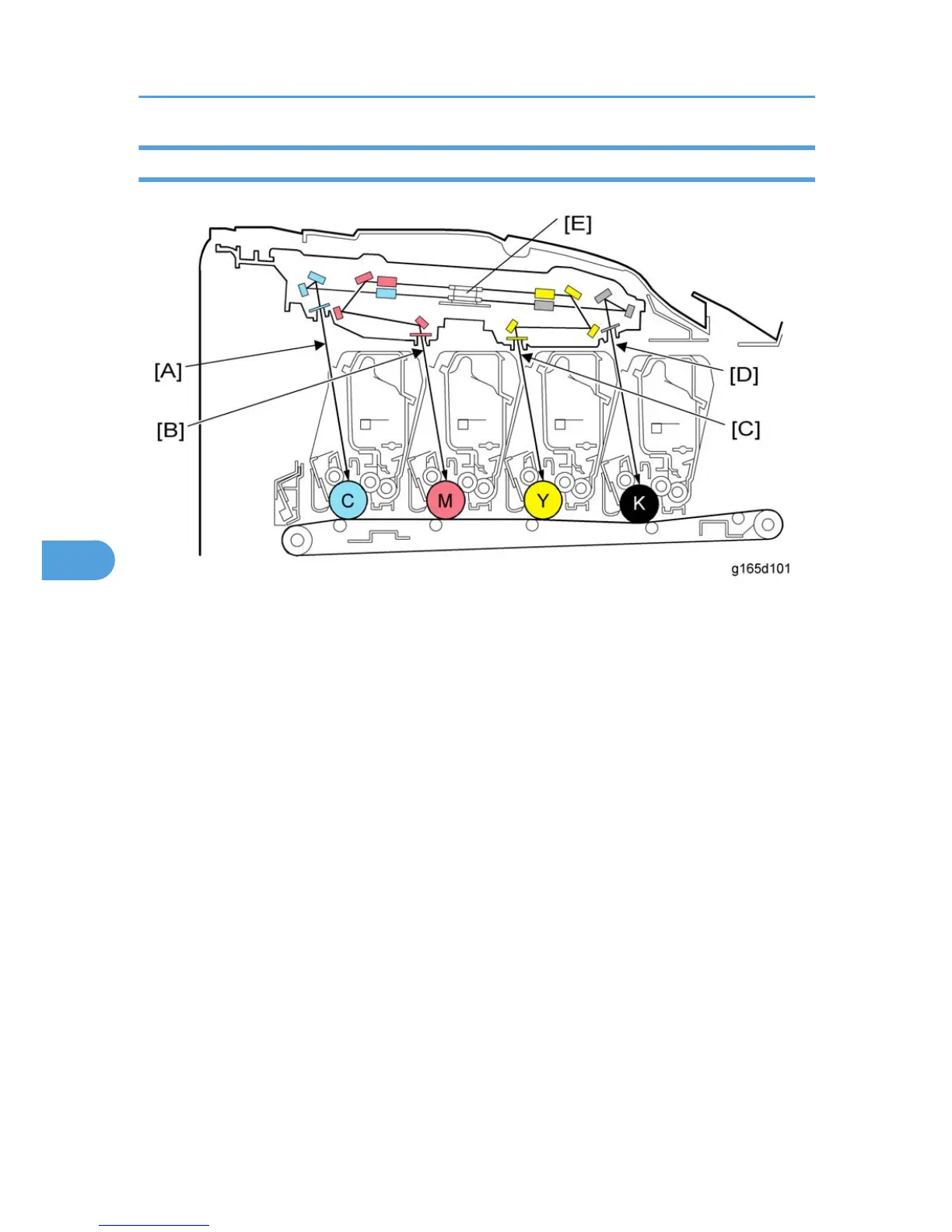

The laser beams for magenta [B] and yellow [C] are sent to the upper part of the polygon mirror [E]. The
laser beams for cyan [A] and black [D] are sent to the lower part of the polygon mirror.
6. Detailed Section Descriptions
174
6
