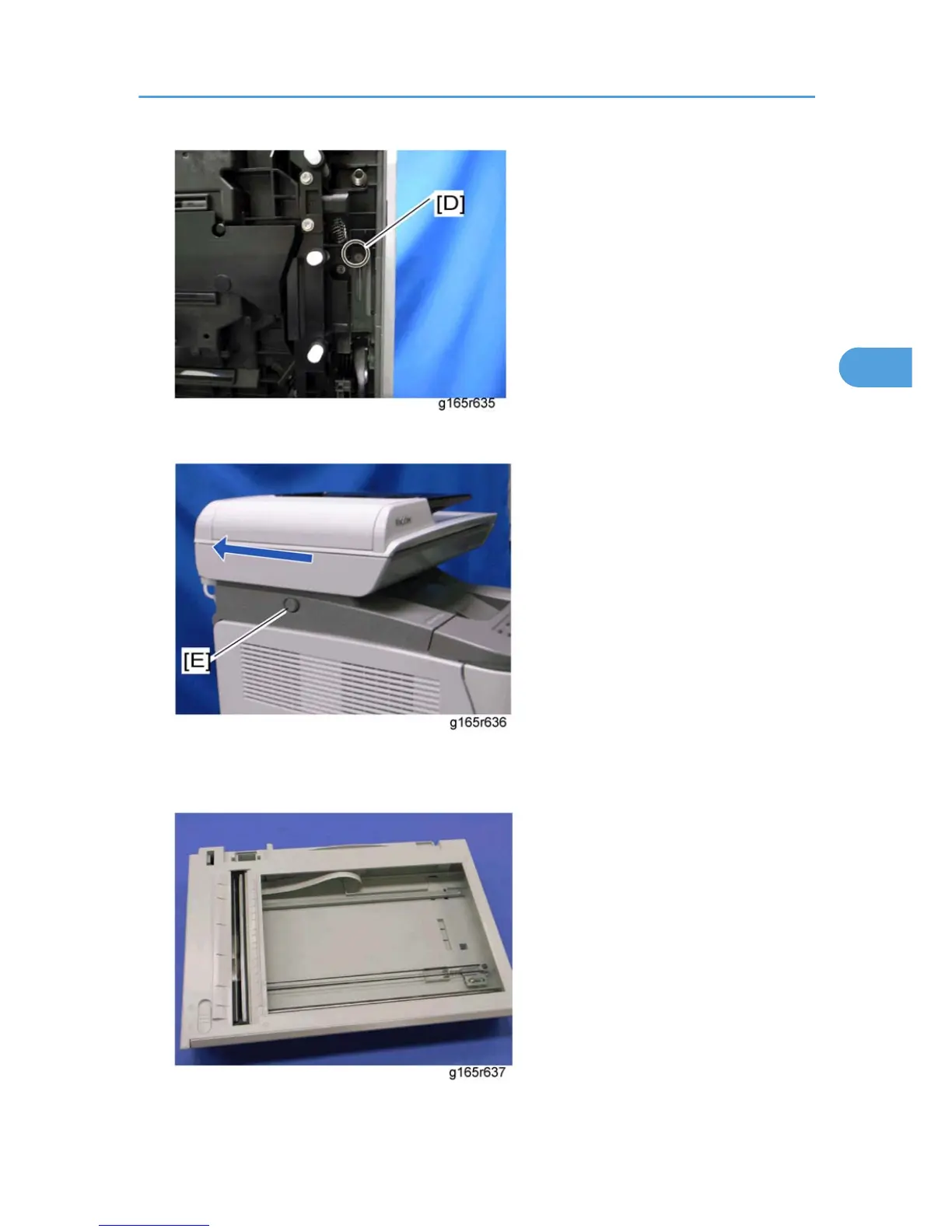

6. Remove the stepped screw [D].
7. Push the lock button [E] and slide the scanner unit to the rear side.
8. ADF unit (* ADF Unit)
9. Scanner unit
Scanner
89
3
