Converting telephone wall outlets 7
There are three ways to convert to an RJ11
jack. The first two ways may require
assistance from the telephone company. You
can change the wall outlets from one RJ14
jack to two RJ11 jacks. Or, you can have an
RJ11 wall outlet installed and slave or jump
one of the telephone numbers to it.
The third way is the easiest: Buy a triplex
adapter. You can plug a triplex adapter into
an RJ14 outlet. It separates the wires into two
separate RJ11 jacks (Line 1, Line 2) and a
third RJ14 jack (Lines 1 and 2). If your
machine is on Line 1, plug the machine into
L1 of the triplex adapter. If your machine is on
Line 2, plug it into L2 of the triple adapter.
Installing machine, external two-line
TAD and two-line telephone 7
When you are installing an external two-line
telephone answering device (TAD) and a
two-line telephone, your machine must be
isolated on one line at both the wall jack and
at the TAD. The most common connection is
to put the machine on Line 2, which is
explained in the following steps. The back of
the two-line TAD must have two telephone
jacks: one labeled L1 or L1/L2, and the other
labeled L2. You will need at least three
telephone line cords, the one that came with
your machine and two for your external two-
line TAD. You will need a fourth line cord if
you add a two-line telephone.
Place the two-line TAD and the two-line
telephone next to your machine.
Plug one end of the telephone line cord for
your machine into the L2 jack of the triplex
adapter. Plug the other end into the LINE jack
on the back of the machine.
Plug one end of the first telephone line cord
for your TAD into the L1 jack of the triplex
adapter. Plug the other end into the L1 or
L1/L2 jack of the two-line TAD.
Plug one end of the second telephone line
cord for your TAD into the L2 jack of the two-
line TAD. Plug the other end into the EXT.
jack on the left side of the machine.

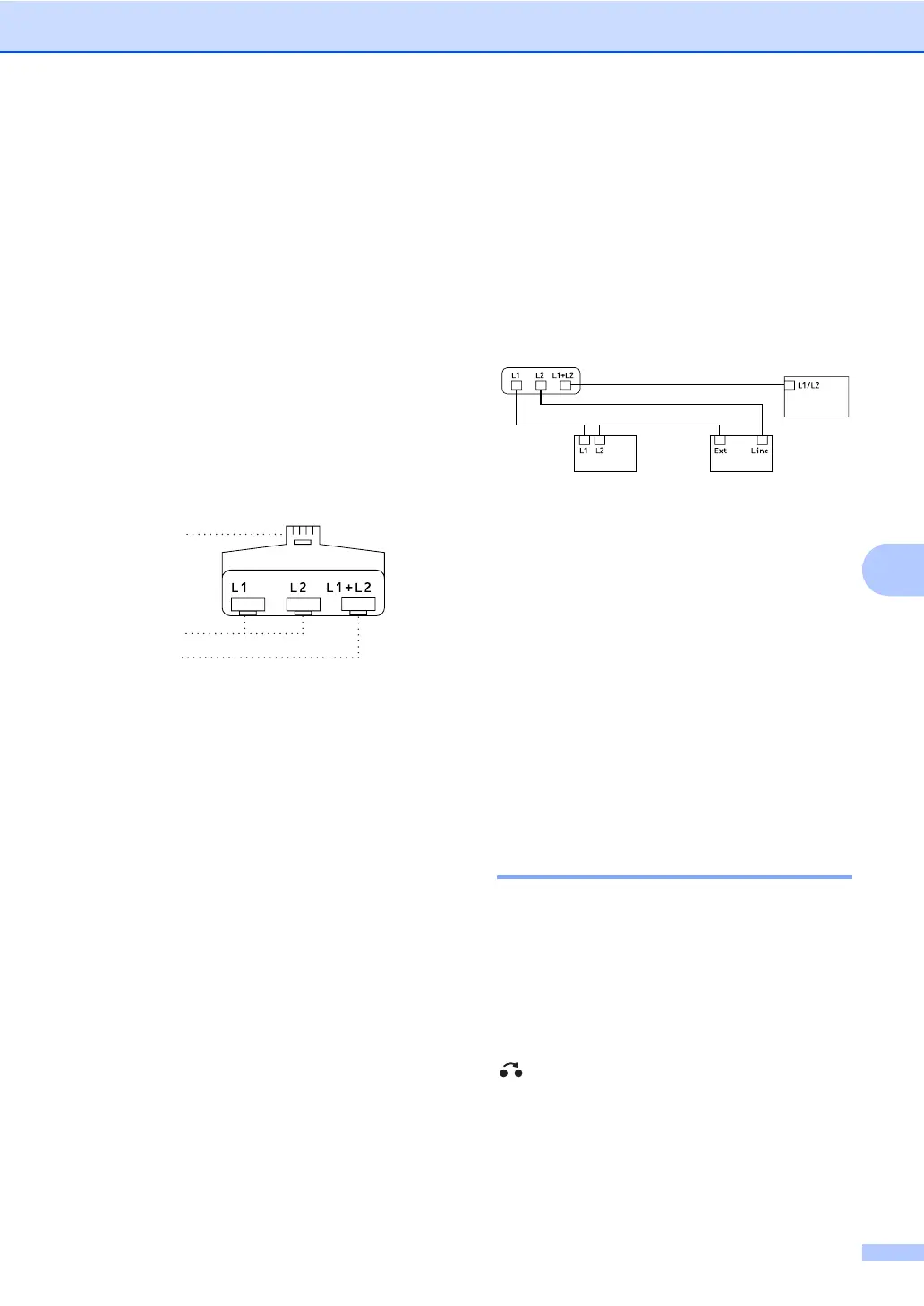

1 Triplex Adapter
2 Two Line Telephone
3 External Two Line TAD
4 Machine
You can keep two-line telephones on other
wall outlets as always. There are two ways to
add a two-line telephone to the machine’s
wall outlet. You can plug the telephone line
cord from the two-line telephone into the
L1+L2 jack of the triplex adapter. Or, you can
plug the two-line telephone into the TEL jack
of the two-line TAD.
Using a cordless external
handset 7
If your cordless telephone is connected to the
telephone line cord (see page 58) and you
typically carry the cordless handset
elsewhere, it is easier to answer calls during
the Ring Delay.
If you let the machine answer first, you will
have to go to the machine so you can press
Hook to transfer the call to the cordless
handset.
RJ14
RJ11
RJ14
1
2
3
4
