18. Bypass tray open lever
Push this lever to open the bypass tray.
19. Tray Extension
Pull this fence to prevent paper from falling off.
20. Bypass tray
Use to copy or print on thick paper, OHP transparencies, envelopes, and label paper (adhesive labels).
21. Extender for the bypass tray
Pull this extender out when loading A4 , 8
1
/
2
× 11 or larger size paper in the bypass tray.
22. Paper guides
When loading paper in the bypass tray, align the paper guides flush against the paper.

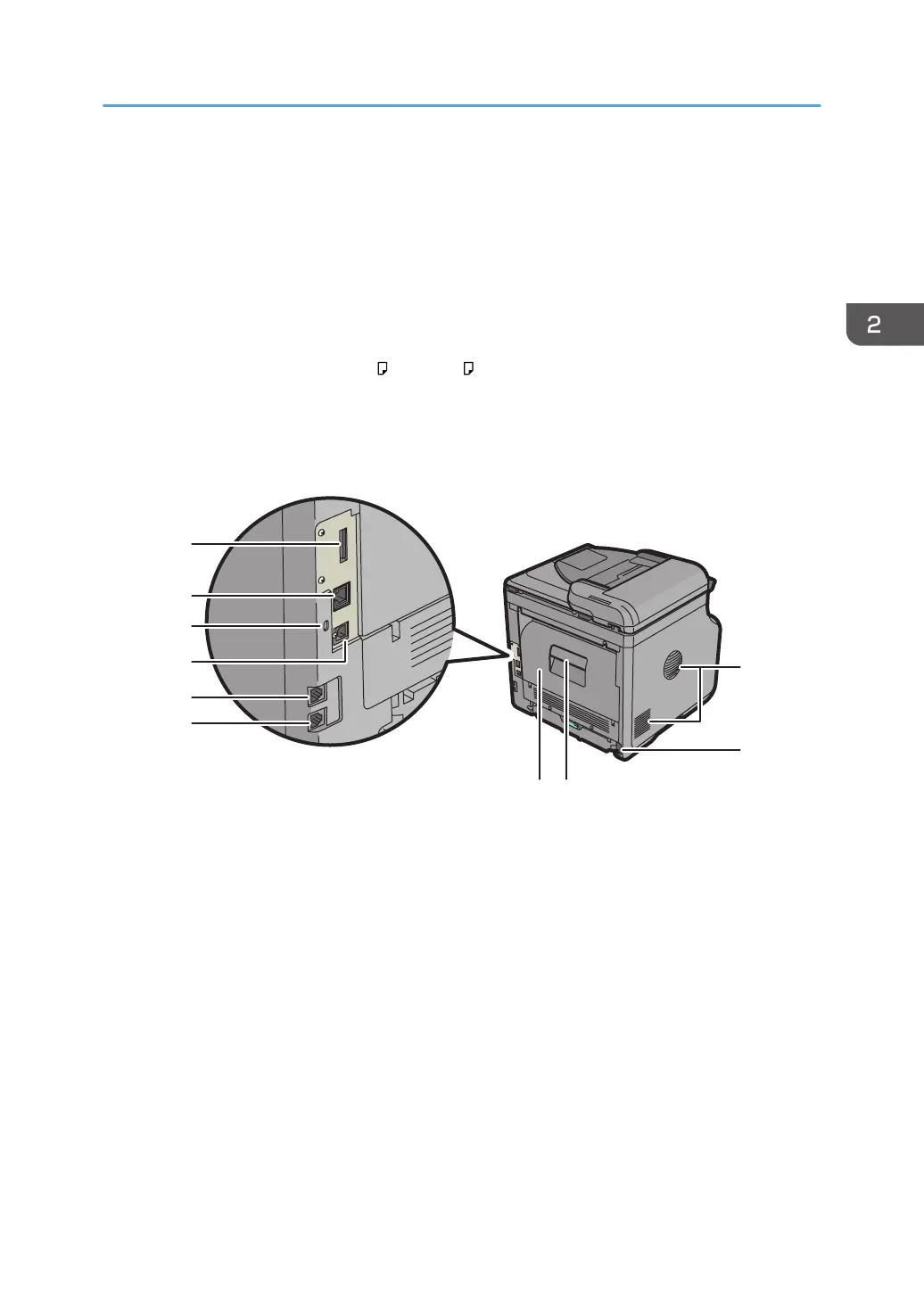

Exterior: Rear view
1. Ventilation holes
Prevent overheating.
2. Power connector
Connect the power cord to the machine. Insert the other end into an electrical outlet.
3. Rear cover open lever
Pull this lever to open the rear cover.
4. Rear cover
Open to access the inside of the machine and remove jammed paper.
Open here to replace the fusing unit.
5. External telephone connector
For connecting an external telephone.
6. Line interface connector
For connecting a telephone line.
Guide to Names and Functions of Components
21
