8.6 REPLACEMENT OF PAPER ROLL
See chapter 2.4 - LOADING PRINTER PAPER
8.7 REPLACEMENT OF ASPIRATION TUBE

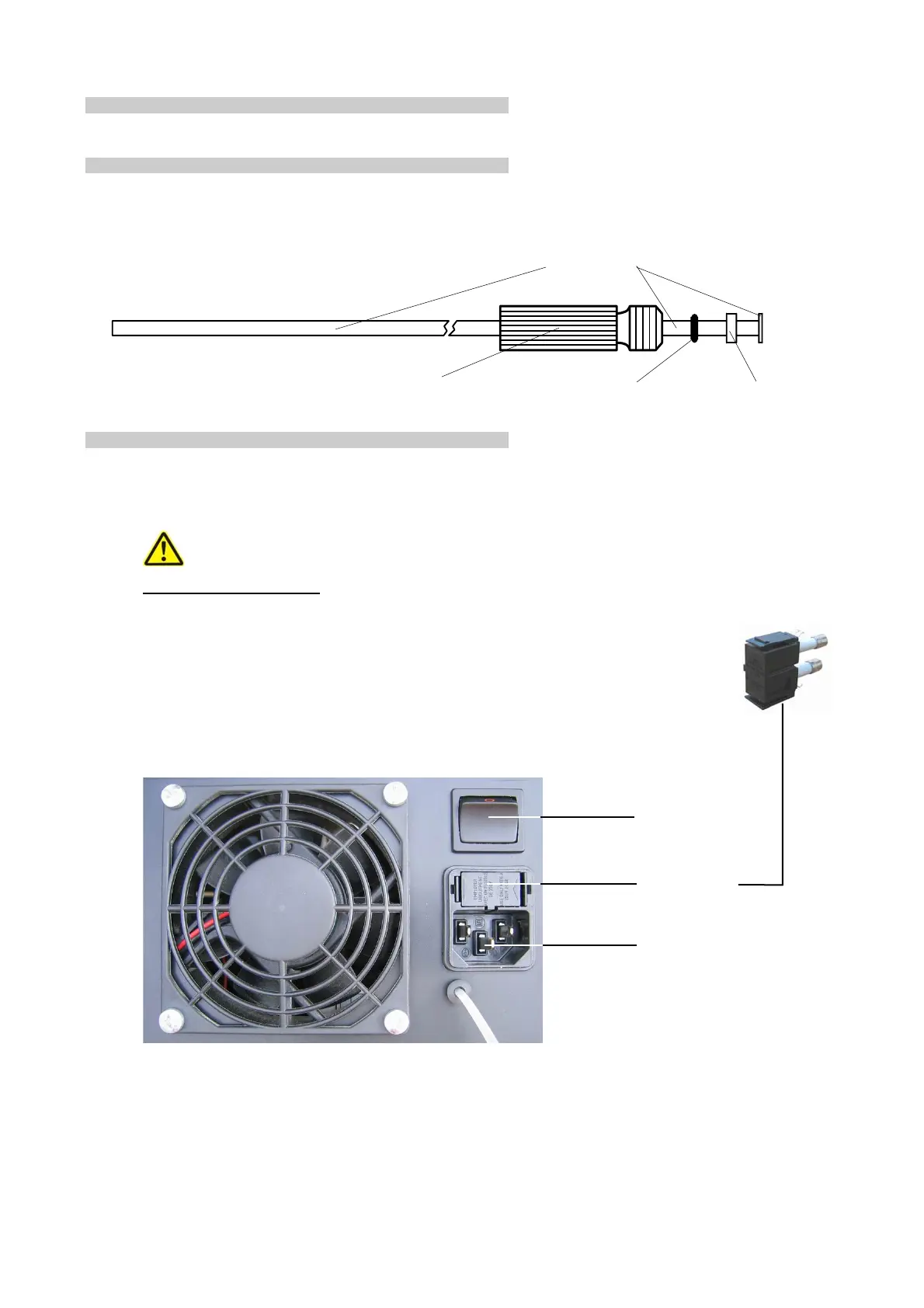

When replacing the aspiration tube pay attention to the sequence of the assembly parts as shown below. Then
put aspiration tube without bending from the cuvette area side through the metal inlet tube. Turn screw connec-
tion with fingers into the cuvette.
inlet tube with base
screw connection, milled O-ring washer
8.8 REPLACEMENT OF LINE FUSES
The Photometer 5010 operates at any line voltage between 90 V
AC
and 264 V
AC
at 50/60 Hz without adjustment.
It has two line fuses in series with the power supply. They are located on the rear panel. To replace those fuses,
unplug the mains cable and remove the fuse holder with the fuses as shown below. The instrument is delivered
with two spare fuses.
Neither use makeshift fuses nor short-circuit the fuse holder!
Specifications of mains fuse:
• dimensions [mm] : 5 * 20
• standard: IEC 60127-2/V
ERROR MESSAGE / CORRECTION
• time-current characteristic: time lag (T)
• voltage rating: 250 V
• rated current: 1.6 A
• marking: T 1.6 A H
mains switch
fuse holder
mains cable connector
