>11.8 AUXILIARY SOCKETS
All UPS versions in the range MST 10-125 kVA can be furnished from the factory with an auxiliary sockets kit (“Aux
sockets”).
It is possible to install the auxiliary sockets on site using the installation kit available on price list.
The Kit contains two auxiliary sockets ("EnergyShare" and auxiliary output) directly connected to the output (see

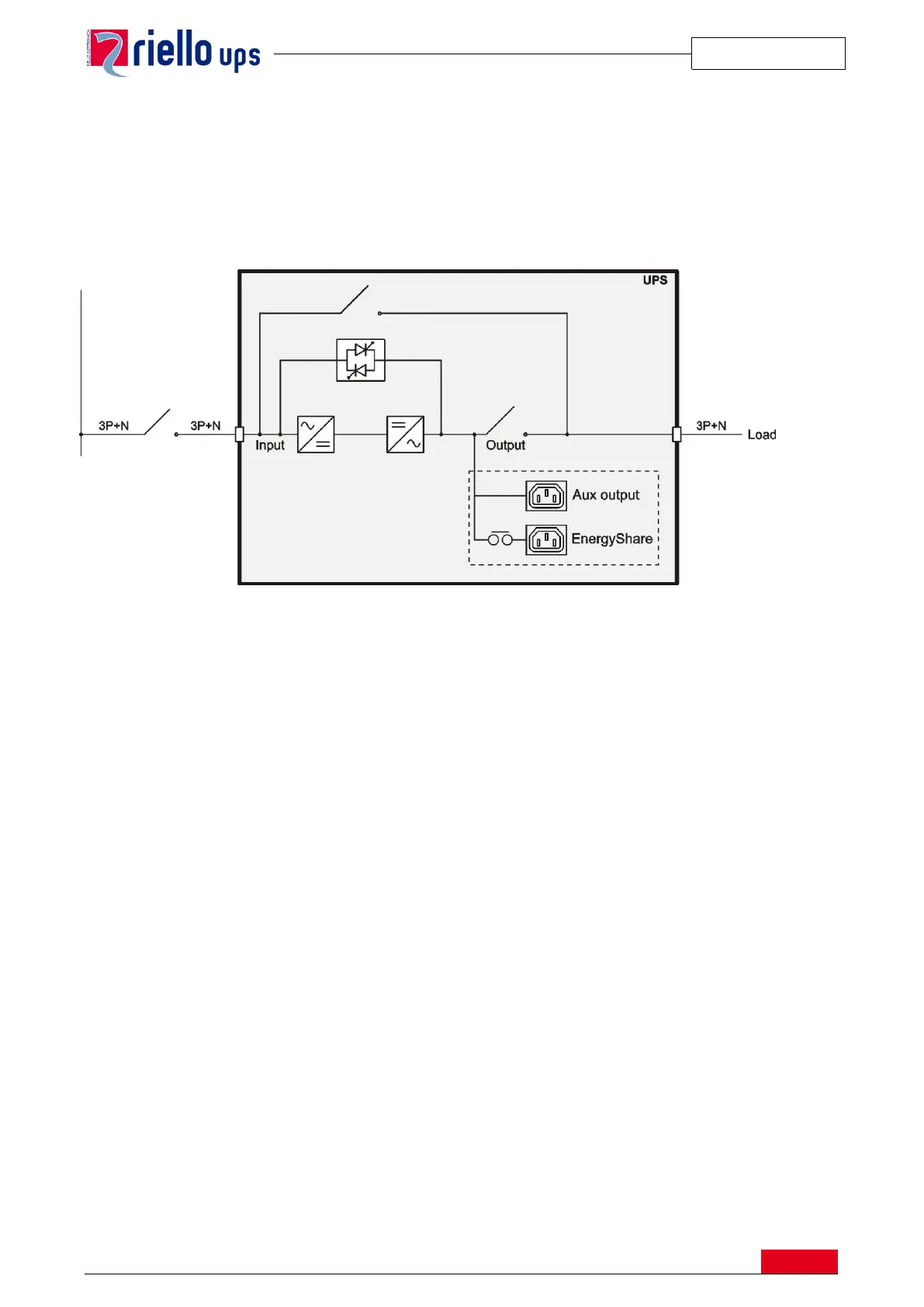

drawing below).
MCT/MCM are supplied with standard embedded EnergyShare sockets in parallel to the Inverter contactor.
MST 10-100
ENERGYSHARE
Programmable output socket (optional) which allows automatic disconnection of the load applied to it under
certain operating conditions. Events that determine automatic disconnection of the "EnergyShare" socket can
be selected by the user through the configuration software (“UComGP”).
AUX OUTPUT
Output socket (optional) directly connected to the UPS output; it caters auxiliary power supply (230 V / max 10 A)
- Not available for MCT/MCM 10-20.
NOTE: if the output switch (SWOUT) is opened while the UPS is on, both sockets remain powered.
If a manual bypass switch (SWMB) is inserted, the output switch (SWOUT) is opened and the UPS switches off and
both sockets will no longer be powered.
