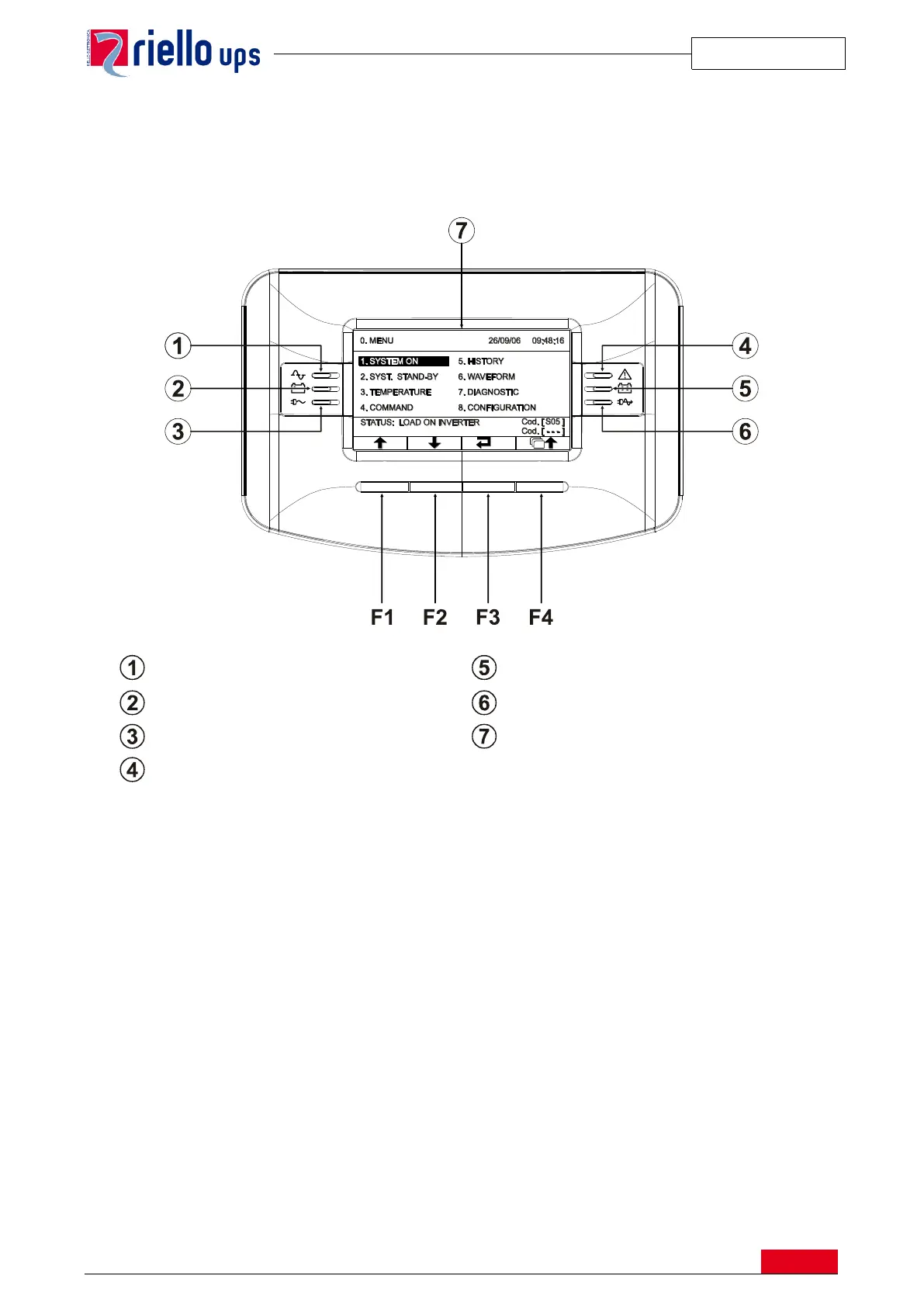

7. CONTROL PANEL
The control panel consists of a graphical display, 6 visual warning LEDs and 4 function keys.
LCD display is 5.1” wide with 16 rows ad 40 characters maximum on each one. The resolution is 240x128 pixel in
black/white colour.
LED for mains operation
LED for replace batteries
LED for battery operation
LED for ECO mode
LED for load on bypass
Graphical Display
LED for stand-by/alarm
F1, F2, F3, F4= FUNCTION KEYS. The function of each key is illustrated in the lower part of the display and
varies according to the menu.
Messages are available in the following languages: Italian, English, French, German, Spanish, Polish, Chinese and
Russian.
At the centre of the control panel there is a wide-area graphical display providing a detailed real-time overview
of the UPS operational state. From the control panel the user can switch the UPS on/off, read electrical
measurements - mains, output, battery, etc, and set the main operational parameters.
