54
REPAIRING A PUNCTURE
MAGURA RIM BRAKES
Please note the tips in the separately in
-
cluded instruction manual from Magura.
ROHLOFF SYSTEM
Please observe the instructions of the sepa
-
rately included Rohlo manual.
DERAILLEUR GEAR
Before removing the rear wheel of derail
-
leur systems, be sure to shift to the smallest
sprocket. Thus the derailleur is all the way to
the outside and does not hinder the removal.

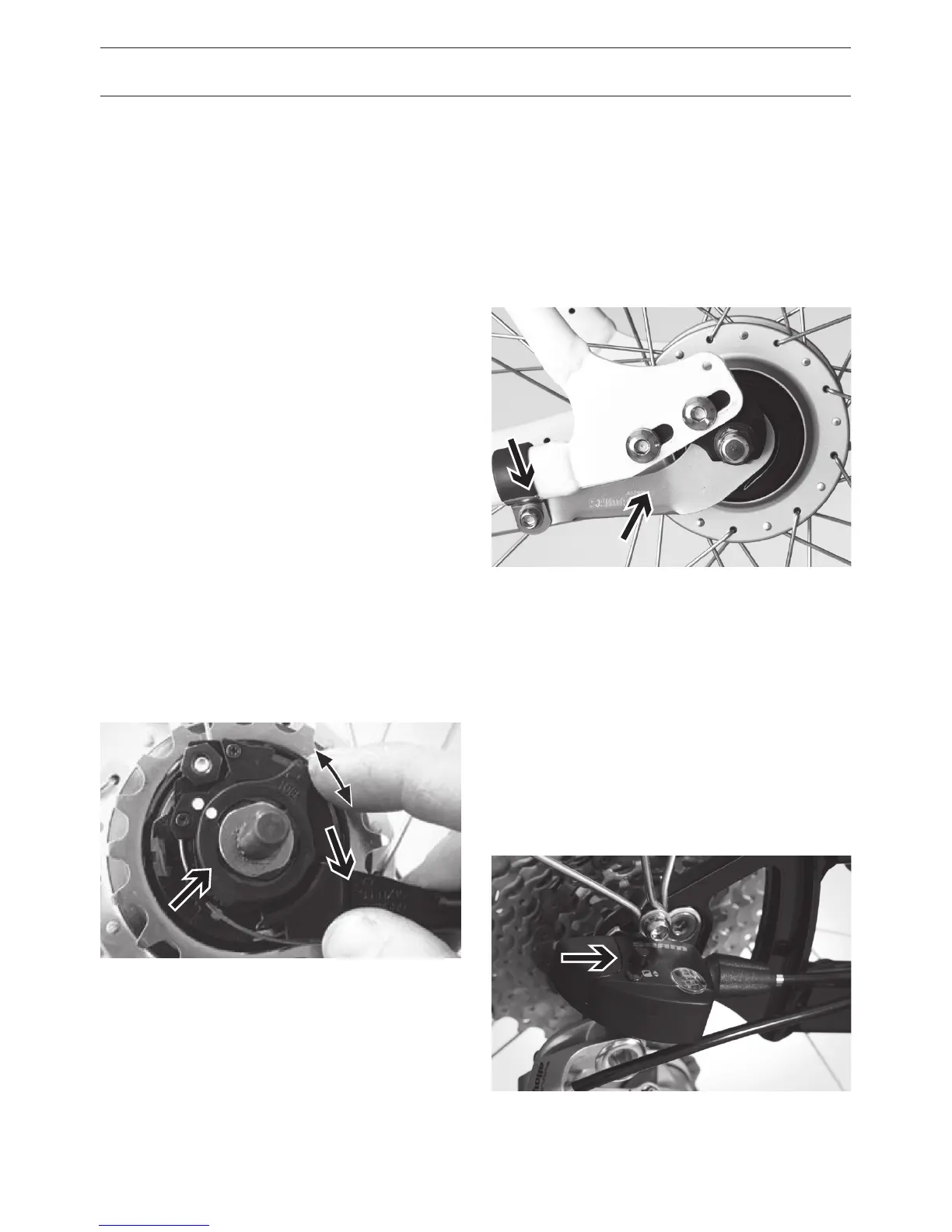

SHIMANO IGH
• Shift into first gear.
• Loosen the axle nuts.
• Take the rear wheel out.
• Rotate the fixing ring F counter-clockwise
and remove the shifting arm G from the
axle.
INTERNALLY GEARED HUB WITH
COASTER BRAKE
The brake arm A which attaches to the frame
and supports the hub while under brake
torque. Loosen the screws B.
SRAM DUAL DRIVE SYSTEM
Before removing the rear wheel, the clickbox
must be removed.
• Press the black button D on the clickbox
and remove it.
• A push rod is inserted in the axle. Be sure
not to lose it.
• Note the position of the washers and axle
nuts.
A
B
D
G
F
