Example 4: Output a Pulse Waveform
How to generate a Pulse waveform with 5kHz Frequency, 50mVPP Amplitude, 5mVDC
Offset, 20μs Pulse Width (Duty Cycle is 10%) and 200μs Delay.
The operation steps:
1. Set the Frequency.
(1) Press Pulse Freq/Period Freq which will display in reverse color.
(2) Input “5” from the keypad and choose “kHz” to set the Frequency as 5 kHz.
2. Set the Amplitude.
(1) Press Ampl/ HiLev Ampl which will display in reverse color.
(2) Enter “50” from the keypad and choose the unit “mVPP” to set the Amplitude as
50mVPP.
3. Set the Offset.
(1) Press Offset /LoLev Offset which will display in reverse color.
(2) Enter “5” from the keypad and choose the unit “mV DC” to set the Offset as 5mVDC.
4. Set the Pulse Width.
(1) Press DtyCyc/Width Width which will display in reverse color.
(2) Enter “20” from the keypad and choose the unit “μs” to set the Pulse Width as
20μs.
5. Set the Delay.
(1) Press Dela which will display in reverse color.
(2) Enter “200” from the keypad and choose the unit “μs” to set the Delay as 200μs.

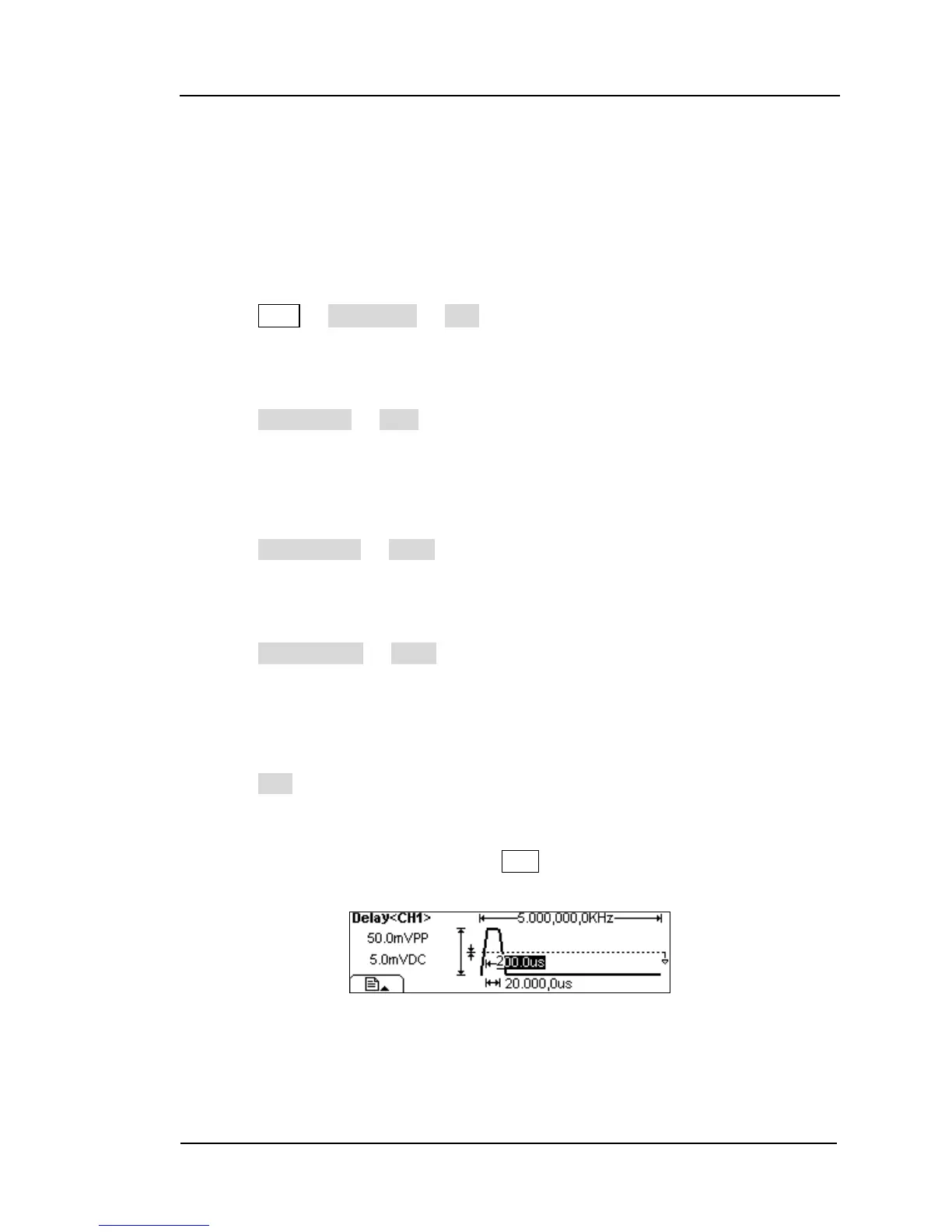

After finishing the above settings, press View, the generated waveform is shown in
Figure 3-4.
Figure 3-4
Pulse Waveform Output
