RIGOL
© 2008 RIGOL Technologies, Inc.
User’s Guide for DG1022
To Select Arbitrary Waveform
There are 48 built-in Arbitrary Waveforms and 10 Non-Volatile memories for storing
the user-defined Arbitrary Waveforms in the Generator.

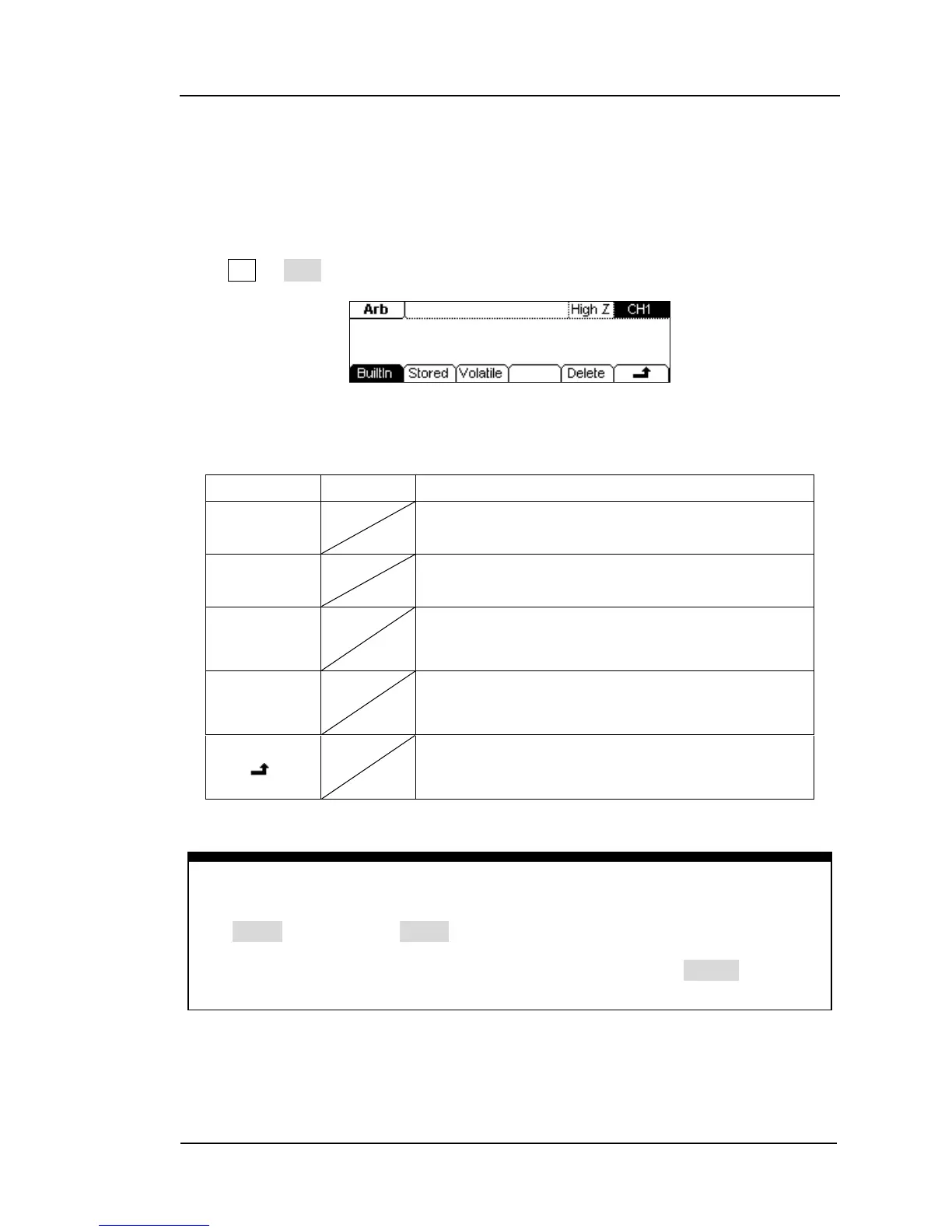

Press Arb Load, enter the interface shown below.
Figure 2-20 Operation Menu
Table 2-7 Selection Menu for Built-in Arbitrary Waveform
Instructions
When there is no waveform stored in the Non-Volatile Memory, the
Stored Menu and the Delete Menu will hide.
When there is no waveform in the Volatile Memory, the Volatile menu will
hide.
Select one of the five built-in Arbitrary Waveforms
(See Table 2-8)
Select one of Arbitrary Waveforms stored in the
Non-volatile memory.
Select one of Arbitrary Waveforms stored in the
Volatile memory. When a new waveform is
created, the old one will be erased.
Delete one of the Arbitrary Waveforms stored in
the Non-volatile memory. The five Built-in
Waveforms can not be deleted.
Cancel the current operation, and return to the
upper menu. (The rest are the same and will not
be covered)
