Example 6: Output a Stored Arbitrary Waveform
How to generate an arbitrary waveform (ExpRise) with 2MHz Frequency, 5VRMS
Amplitude, 10 mVDC Offset and 60° Phase.
The operation steps:
1. Set the Type of the Arbitrary Waveform.
(1) Press Arb Load, to choose the built-in waveform.
(2) Press BuiltIn Maths, use the knob to choose “ExpRise” and press Select to
return the Main Menu of Arb.
2. Set the Frequency.
(1) Press Pulse Freq/Period Freq which will display in reverse color.
(2) Input “2” from the keypad and choose the unit “MHz” to set the Frequency as
2MHz.
3. Set the Amplitude.
(1) Press Ampl/ HiLev Ampl which will display in reverse color.
(2) Enter “5” from the keypad and choose the unit “VRMS” to set the Amplitude as 5
VRMS.
4. Set the Offset.
(1) Press Offset /LoLev Offset which will display in reverse color.
(2) Enter “10” from the keypad and choose the unit “mVDC” to set the Offset as 10
mVDC.
5. Set the Phase.
(1) Press Phase which will display in reverse color.
(2) Enter “60” from the keypad and choose the unit “°” to set the Phase as 60°.
After finishing the above settings, press View, the generated waveform is shown in
Figure 3-6.

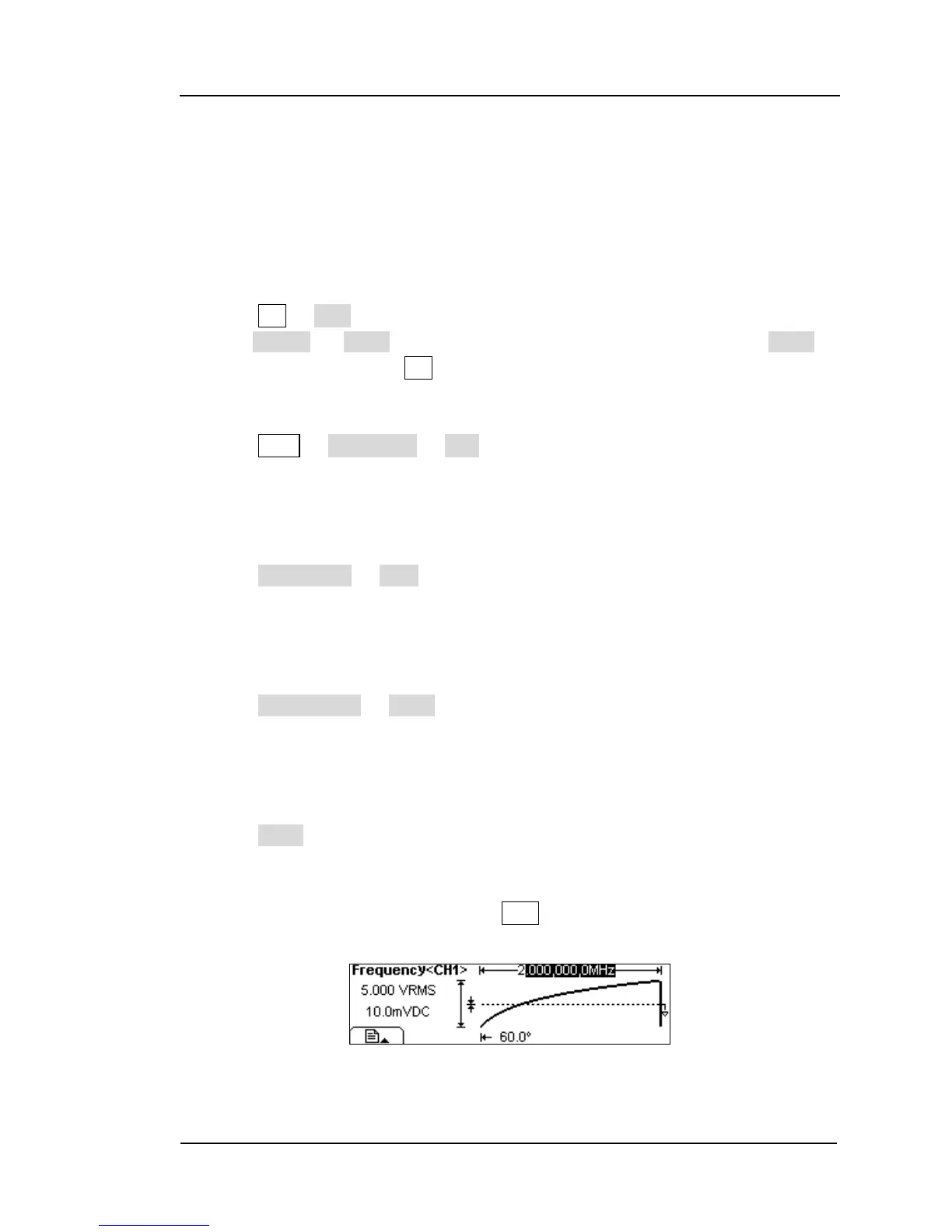

Figure 3-6 Arbitrary Waveform Output
