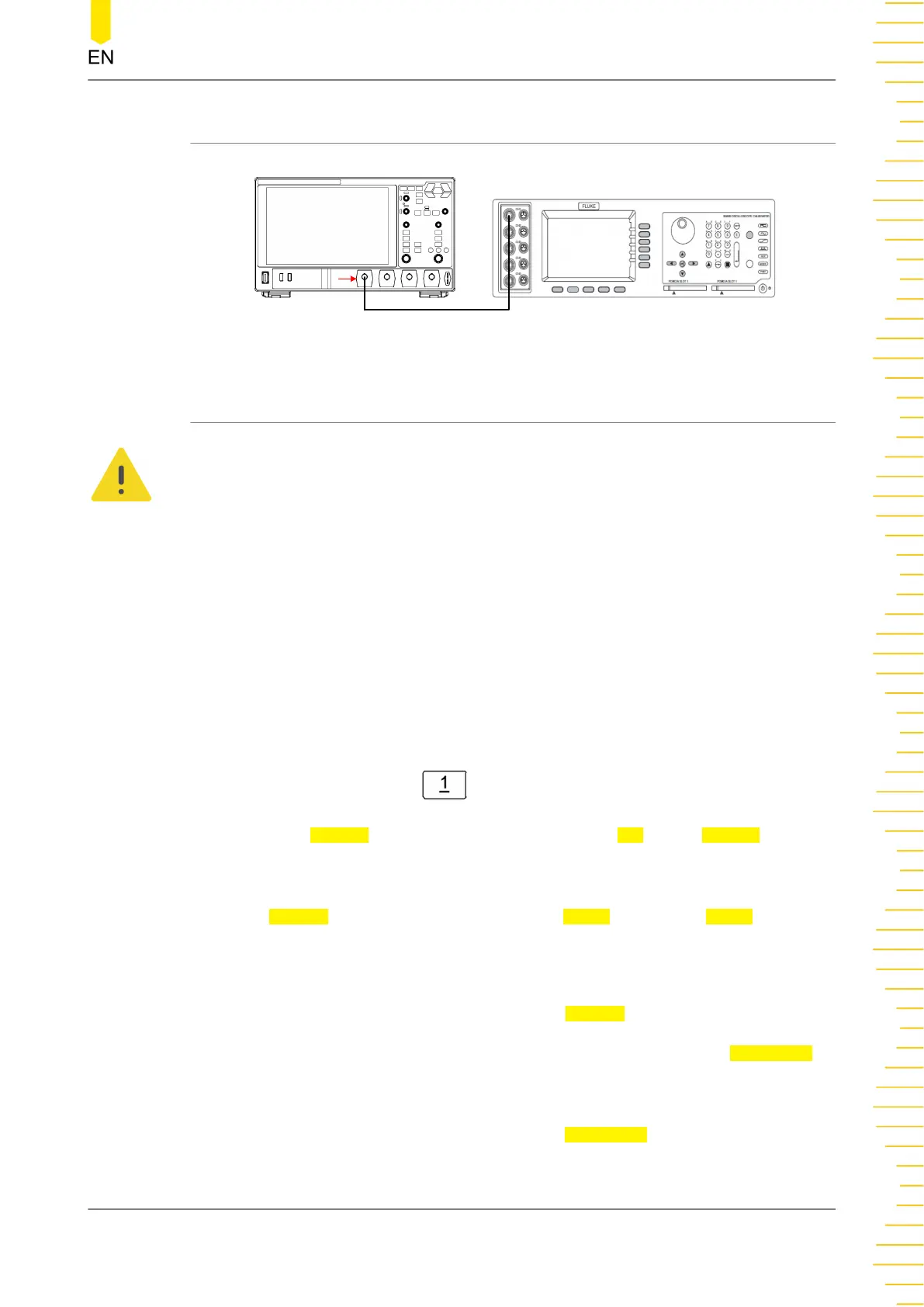

5.6.2 Test Connection Diagram

Fluke 9500B

CH1

DHO1000

Figure 5.5 Bandwidth Test Connection Diagram

5.6.3 Test Procedures

WARNING

Before connecting, disconnecting, or moving the test hookup, disable the output of the

signal generator to avoid causing the dangerous voltage.

1. Connect the active head of Fluke 9500B to CH1 of the oscilloscope, as shown in

Figure 5.5

2. Turn on Fluke 9500B and set its impedance to 1 MΩ.

3. Configure the oscilloscope:

a. To enable CH1, perform any of the following operations:

- Click or tap the channel status label at the bottom of the screen to enable

CH1.

- Press the front-panel key to enable the channel.

- In the Vertical menu, select the CH1 tab. Select ON for the Display item to

turn CH1 on.

b. Click or tap the channel status label of CH1 at the bottom of the screen. Then

the

Vertical menu is displayed. Click or tap Probe to enter the Probe setting

menu. Set the probe attenuation ratio to "1X".

c. Set the vertical scale to 50 mV/div.

d. Set the vertical offset to 0 V. Then close the

Vertical menu.

e. Click or tap the horizontal label at the top of the screen. Then the Horizontal

menu is displayed. In this menu, you can set the horizontal time base to 500 ns/

div.

f. Set the horizontal position to 0 s. Close the

Horizontal menu.

g. Set the trigger level to 0 V.
