14.4 SPI Decoding
SPI bus is based on the master — slave configuration and usually consists of chip
select line (CS), clock line (CLK), and data line (SDA). Wher
ein, the data lines include
the master input/slave output (MISO) data line and master output/slave input (MOSI)
data line. The oscilloscope samples the channel data on the rising or falling edge of
the clock signal and judge each data point (logic "1" or logic "0") according to the
preset threshold level.
Master
Slave
MOSI
CLK
MISO
CS
CLK
SDA
(MISO/MOSI)

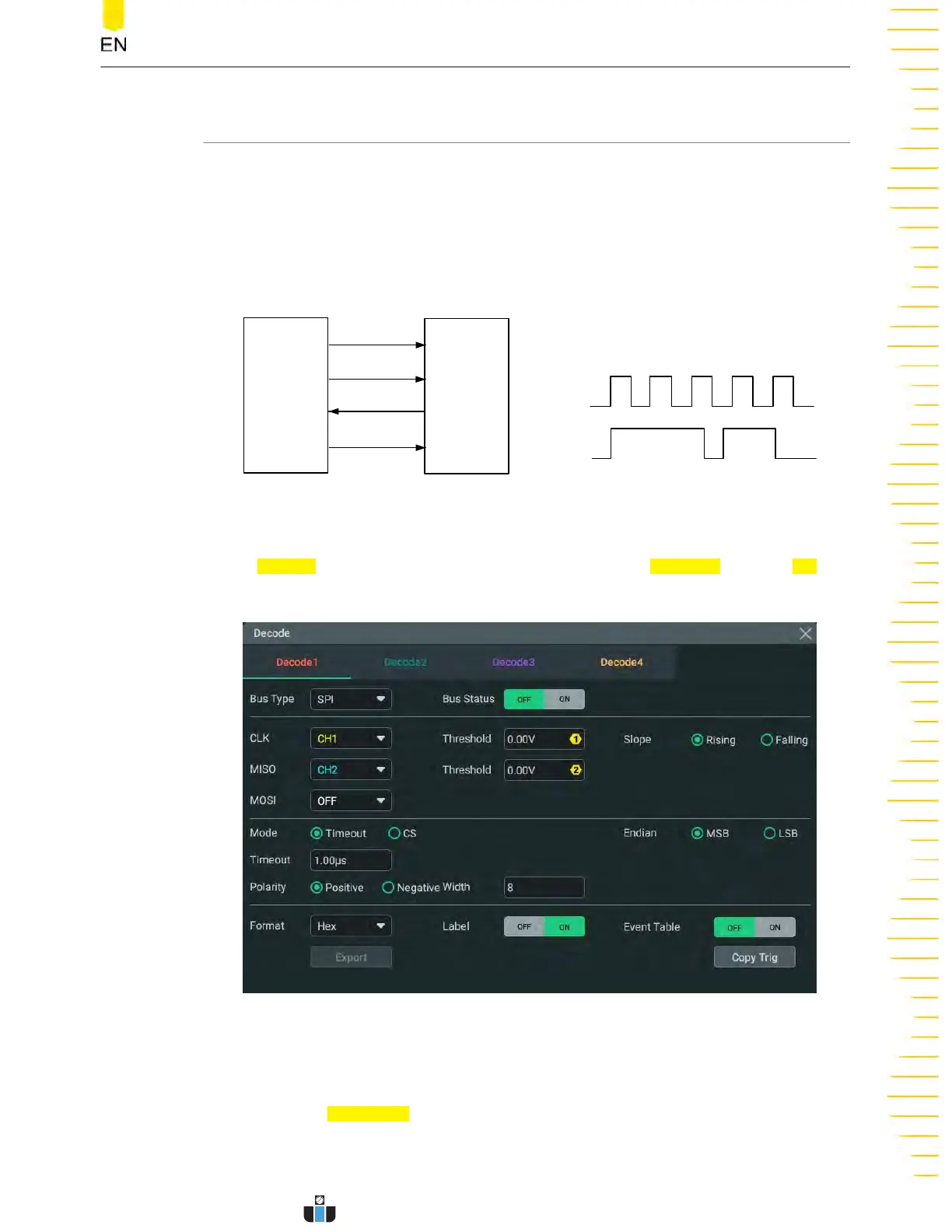

Figure 14.10 SPI Serial Bus
In the Decode menu, click or tap the drop-down button of Bus Type to select SPI,
then configure the p
arameters for SPI decoding.
Figure 14.11 SPI Decoding Menu
Bus Status
Click or tap the Bus Status on/off swit
ch to enable or disable the bus decoding.
Protocol Decoding
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
DHO1000 User Guide
187
