Multi-pane Windowing

This series oscilloscope supports multi-pane windowing. You can add multiple windows and result

display windows for display and view.

Click or tap

Windows to enter the "Add Window" menu. You can also click or

tap the Windows button on the toolbar at the top of the screen to enter the menu, as

shown in the figure below.

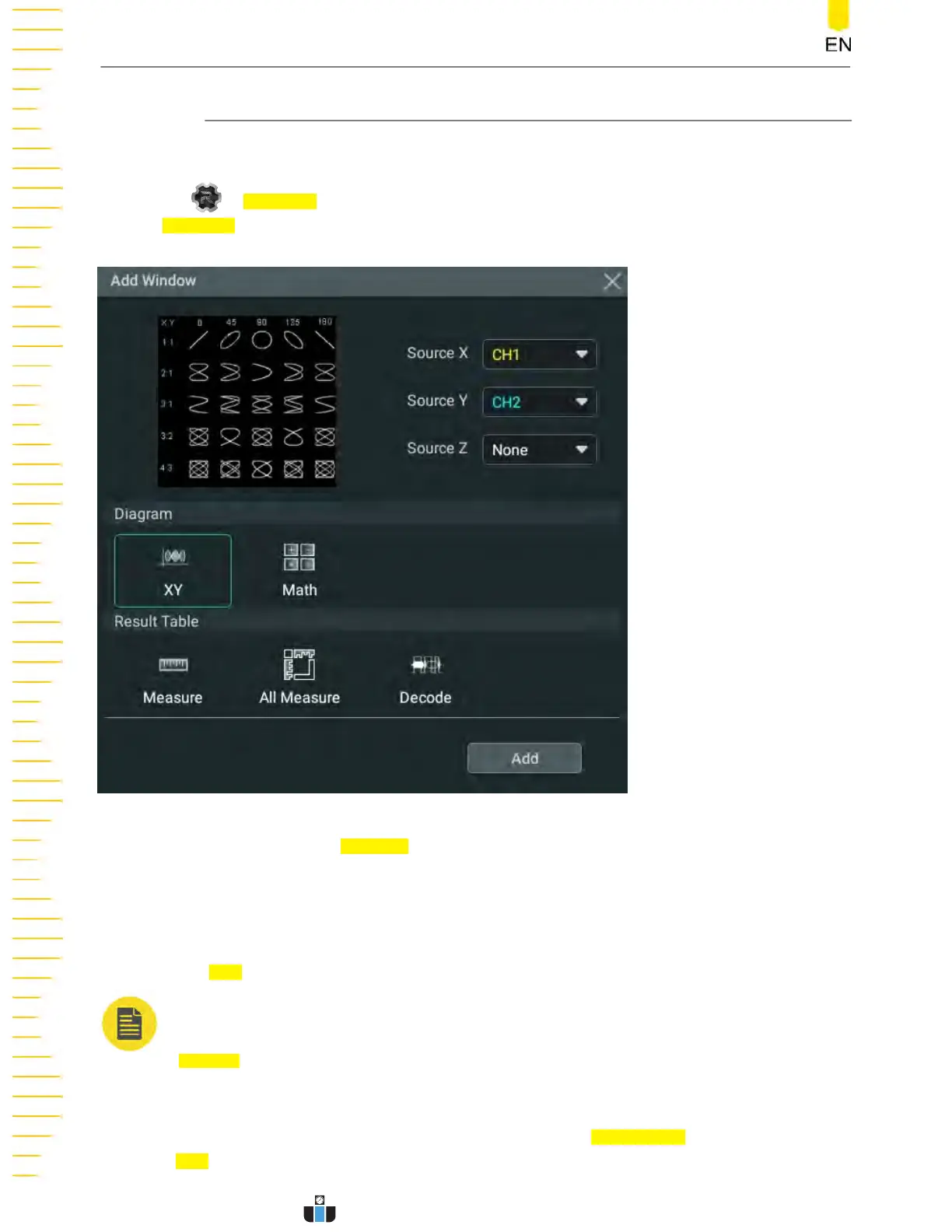

Figure 15.1 "Add Window" Menu

Add Diagram Windows

1. First, select "XY" or "Math" in

Diagram. When a diagram is selected, its preview

and parameter setting items can be displayed at the upper part of the "Add

Window" menu.

2. You can set the corresponding parameters according to your needs. For details,

refer to descriptions of relevant chapters.

3. Click or tap Add and then the selected diagram is displayed on the screen.

Multi-pane Windowing

DHO1000 User Guide

198

NOTE

When the waveform view window is closed, the "Waveform View" item appears on the

Diagram menu. You can use the item to open the waveform view window.

Add Result Table Window

Click or tap

"Measure", "All Measure", or "Decode"

in Result Table, then click or tap

Add. The corresponding measurement result window will be displayed on the screen.

Rigol DHO1204 User Manual
