4.4.1 Front Panel Overview

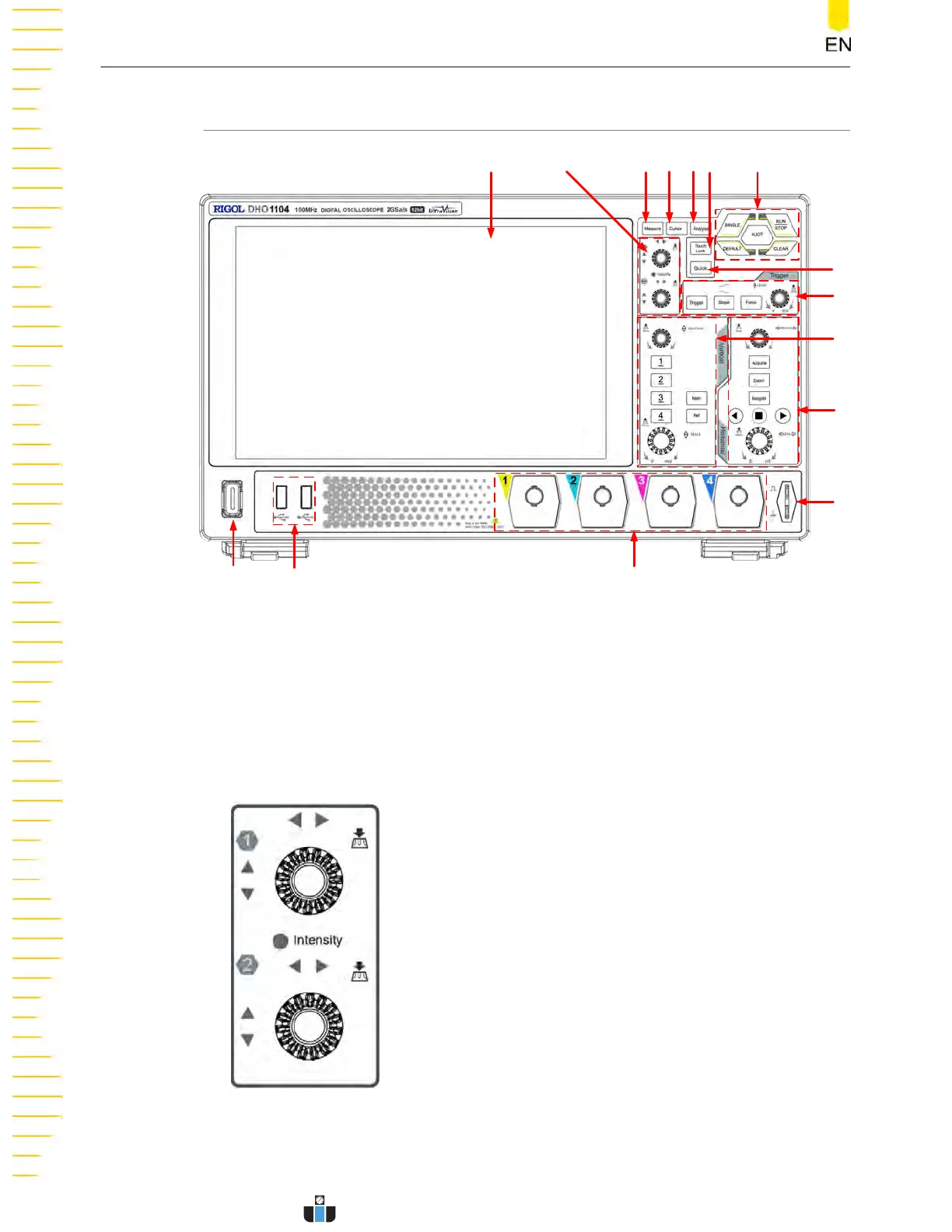

Figure 4.10 Front Panel

1. 10.1-inch Capacitive Touch Screen

Displays the waveforms, menu labels, and parameter settings, system state,

prompt messages, and other information.

2. Multipurpose Knobs

- Non-menu operation:

When not operating on the menu, you can r

otate the knob 1 to adjust the

waveform brightness. When a cursor, decoding, Math waveform, or reference

Quick Start

DHO1000 User Guide

www.calcert.com sales@calcert.com1.888.610.7664
